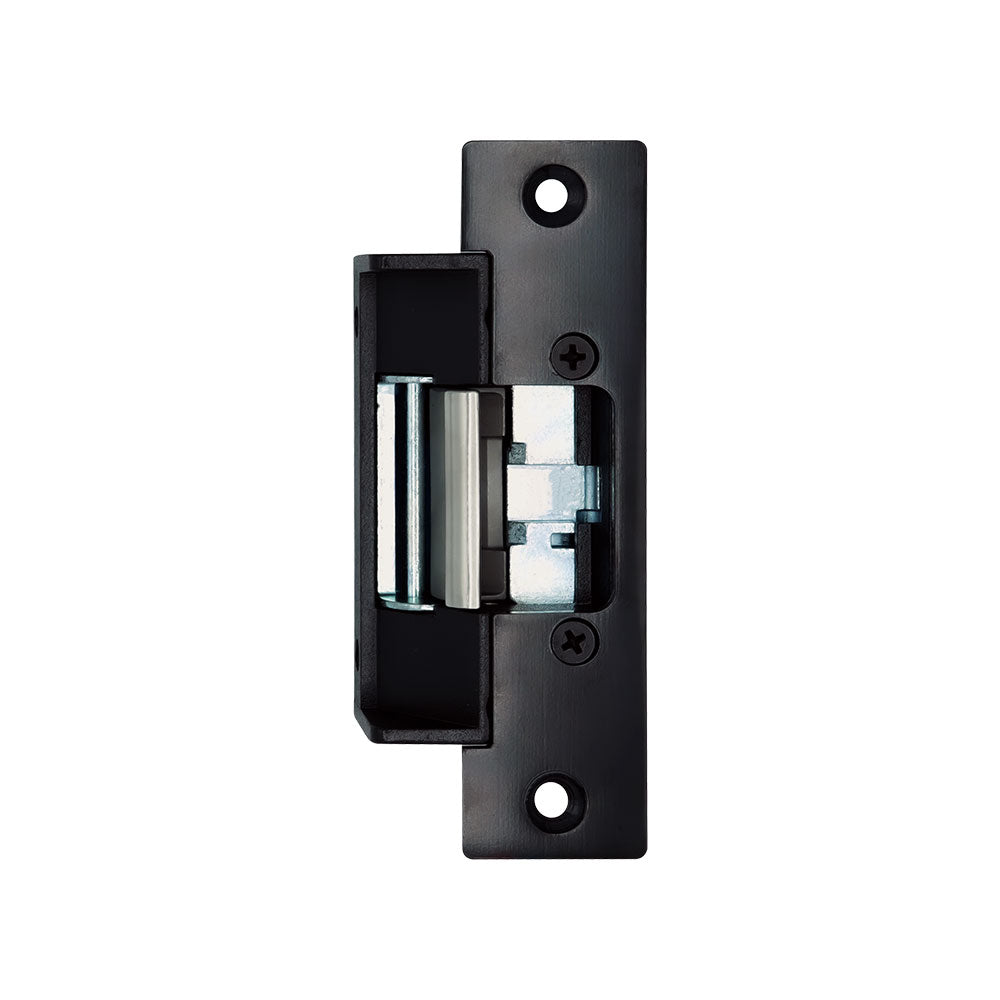

Camden CX-ED2079-BK Low Profile ANSI Universal Electric Strike for Cylindrical Locksets - 3 Black Faceplates - Grade 2
Camden CX-ED2079-BK Low Profile ANSI Universal Electric Strike for Cylindrical Locksets - 3 Black Faceplates - Grade 2
Regular price
$322.86 USD
Regular price
$430.48 USD
Sale price
$322.86 USD
Unit price
per
Couldn't load pickup availability
Camden CX-ED2079-BK Low Profile ANSI Universal Electric Strike for Cylindrical Locksets - 3 Black Faceplates - Grade 2
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 black faceplates (CX-ESP1B-BK, ESP3B-BK & ESP4B-BK)
Features:
- Centerline latch entry, for cylindrical locksets
- 1/2" - 5/8" (13mm - 16mm) latch projection
- CX-ED2079: Selectable 12/24V AC/DC
- Field selectable fail safe / fail secure operation
- Horizontal adjustability
- Low profile strike body
- 3 black faceplates included: ANSI square, ANSI hollow metal and wood door frame
- 5 year warranty
Specifications:
| Voltage | 12/24V AC/DC |
| Current Draw | 300 mA @ 12 VDC,150 mA @ 24 VDC |
| Static Strength | 1000 Lbs. |
| Dynamic Strength | 50 Ft. Lbs. |
| Endurance | 700,000 cycles 250,000 cycles (UL Verified) |
| Mode | Selectable fail safe fail secure |
| Operation | AC - Buzz DC- Silent |
| Duty | Continuous |
| Mounting | Non-handed |
| Dimensions | 3.25"L x 10.51"W x 2.25"H |
