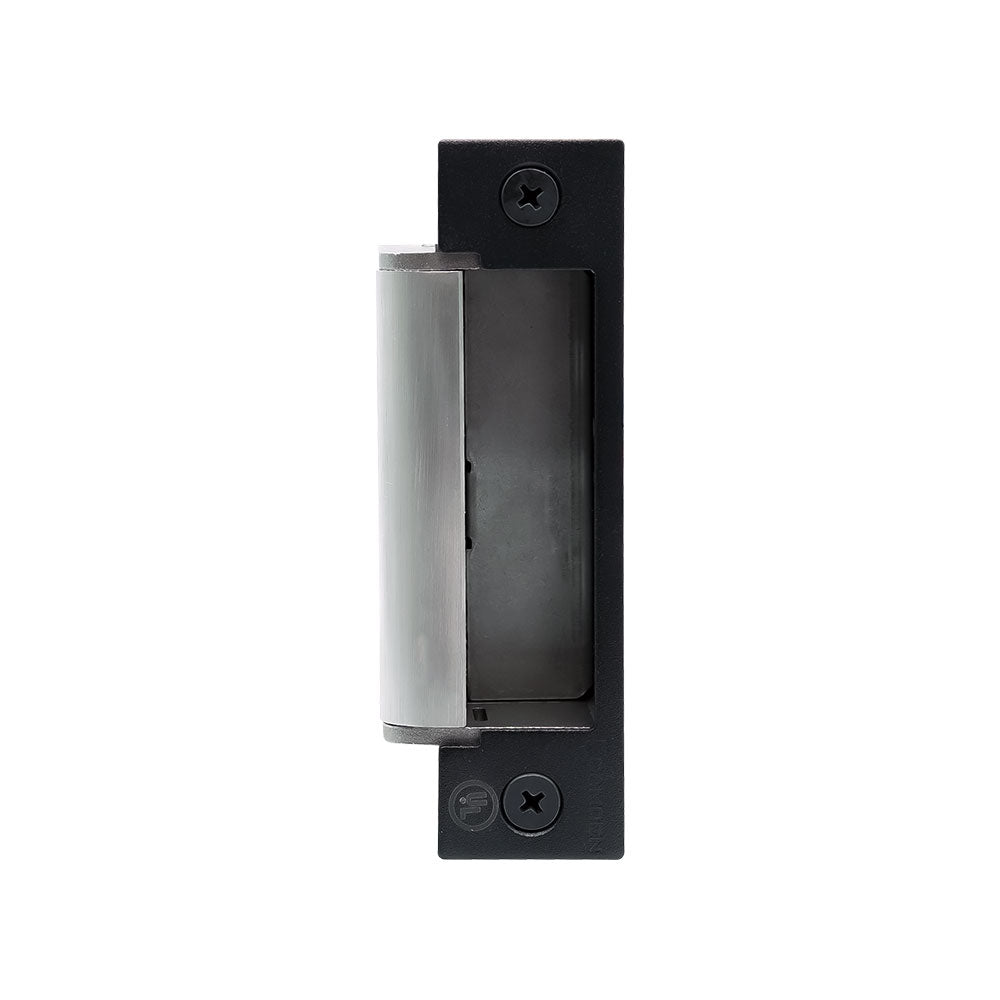

Camden CX-ED1799L-8-BK Low Profile Mortise Electric Strike for 2 Latch Monitor - 8 Black Faceplates - Grade 1
Camden CX-ED1799L-8-BK Low Profile Mortise Electric Strike for 2 Latch Monitor - 8 Black Faceplates - Grade 1
Regular price
$1,030.00 USD
Regular price
$1,373.33 USD
Sale price
$1,030.00 USD
Unit price
per
Couldn't load pickup availability
Camden CX-ED1799L-8-BK Low Profile Mortise Electric Strike for 2 Latch Monitor - 8 Black Faceplates - Grade 1
Dual monitor strike body with (2) monitor switches comes with 8 black faceplates, 3-hour fire rating. Includes: CX-EMP100-BK, CX-EMP200-BK, CX-EMP300-BK, CX-EMP400-BK, CX-EMP110-BK, CX-EMP210-BK, CX-EMP310-BK, CX-EMP410-BK
Features:
- For mortise and cylindrical locksets
- A range of strike and faceplate packages for latchbolts and deadbolts
- Faceplates also available in black architectural finish (BHMA 622, US19)
- Selectable fail safe / fail secure
- Selectable 12/24V AC/DC
- 2 latch and deadbolt monitoring switches
- Magnetic door position switch
- Strike power monitor
- Easy fit connectors
Specifications:
| Voltage | 12/24 V AC/DC |
| Current Draw | 300mA @ 12V AC/DC 150mA @ 24V AC/DC |
| Static Strength | 1,500 Lbs. |
| Dynamic Strength | 70 Ft-Lbs |
| Endurance | 1,500,000 cycles (Factory Tested) 250,000 cycles (UL Verified) |
| Mode | Field Selectable Fail Safe/Fail Secure |
| Operation | AC-Buzz DC-Silent |
| Duty | Continuous |
| Lock Monitor Status | 2 x SPST, 100mA @ 24V DC, Resistive |
| Strike Monitor Status | SPDT, 100mA @ 24V DC, Resistive |
| Dimensions | 3.25"L x 10.50"W x 2.25"H |
Downloads:
