Camden

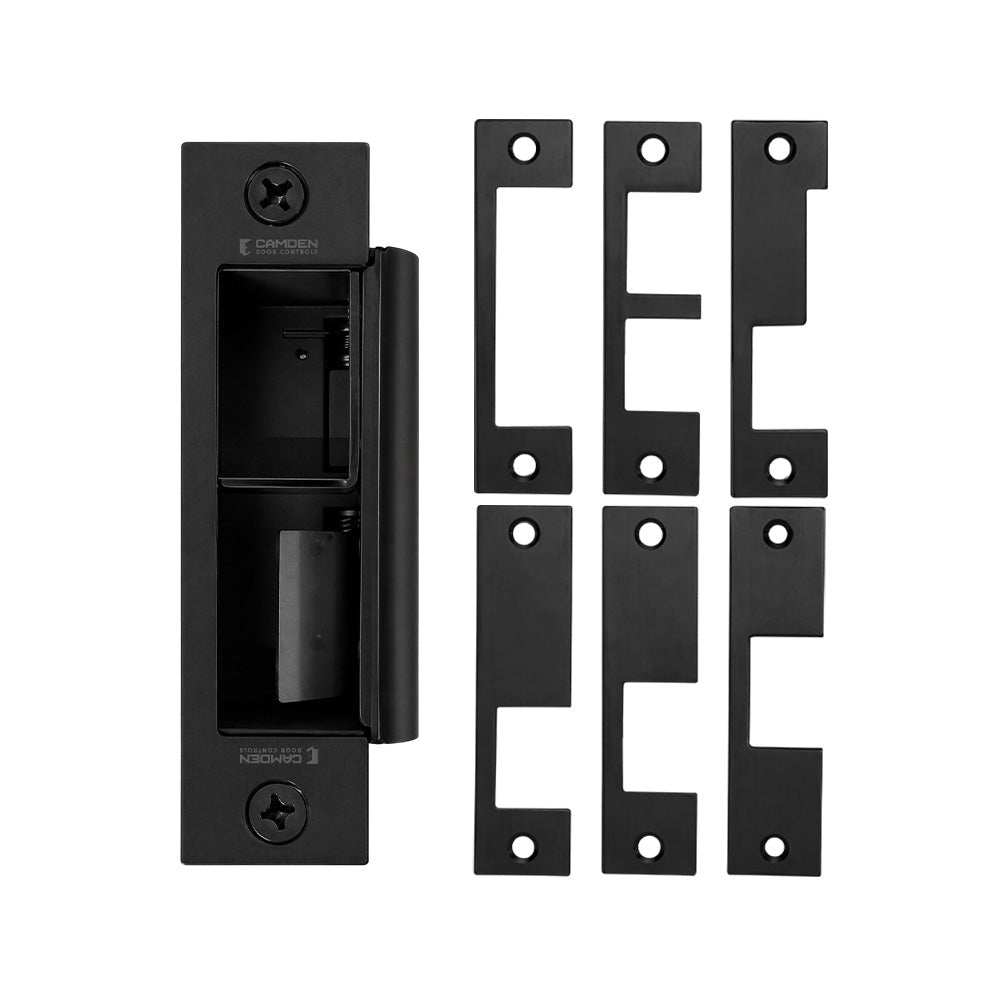

Camden CX-ED1579L-BK Low Profile All In One Black Electric Strike - Fire Rated - Grade 1

Camden CX-ED1579L-BK Low Profile All In One Black Electric Strike - Fire Rated - Grade 1

$440.86 USD
$569.30 USD $440.86 USD
Sale Sold out

Camden CX-ED1579L-BK Low Profile All In One Black Electric Strike - Fire Rated - Grade 1

Grade 1 'All In One' fire rated strike, 12/24V AC/DC, for mortise and cylindrical locksets, comes with 5 black faceplates.

Features:
  • For mortise and cylindrical locksets
  • 3/4" (19mm) latch projection (throw)
  • 6 black stainless steel faceplates included
  • Selectable fail safe/fail secure operation
  • Selectable 12/24V AC/DC
  • Latch monitoring
  • Non-Handed, LH/RH
  • Easy Fit connectors for power and monitoring wires
  • Stainless steel strike body
  • 5 year warranty
Specifications:
Voltage 12/24V AC/DC
Current Draw 260 mA @ 12V AC/DC
150 mA @ 24V AC/DC
Static Strength 1,500 Lbs.
Dynamic Strength 70 Ft-Lbs.
Mode Fail-Safe/Fail-Secure, Field Selectable
Operation AC - Buzz
DC - Silent
Duty Continuous (DC)
Mounting Non-Handed
Endurance 1,500,000 Cycles (Factory Tested)
250,000 Cycles (Ul Verified)
Fire Rating UL10C/Can4-S104
3 hour (fail secure only)
Latch Bolt Monitor SPDT, 100 mA @ 24 VDC
Dimensions 3.25"L x 10.65"W x 2.13"H
