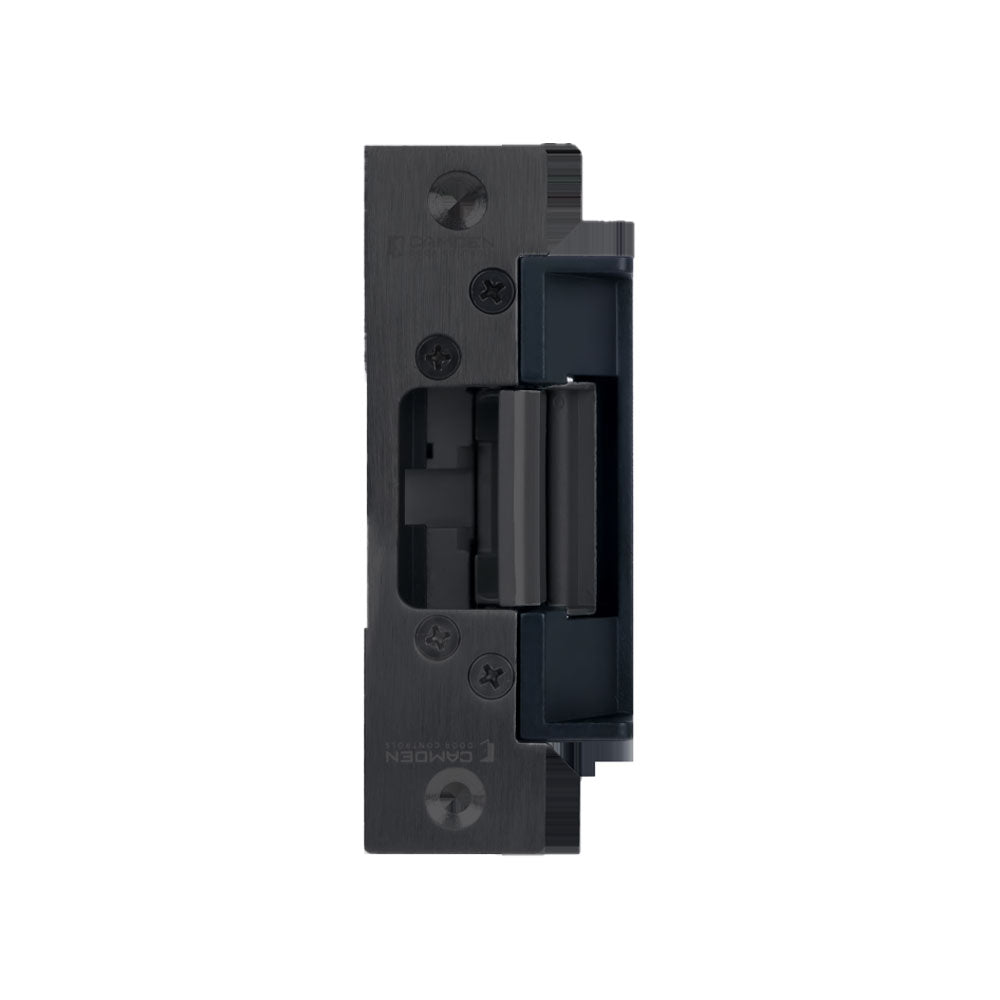

Camden - CX-ED1420-BK - Low Profile Universal Electric Strike for Cylindrical Locksets - Fail Safe/Fail Secure-Fire Rated - Grade 1 - US19 - Matte Black (622)
Camden - CX-ED1420-BK - Low Profile Universal Electric Strike for Cylindrical Locksets - Fail Safe/Fail Secure-Fire Rated - Grade 1 - US19 - Matte Black (622)
Regular price
$262.97 USD
Regular price
$394.46 USD
Sale price
$262.97 USD
Unit price
per
Couldn't load pickup availability
Camden - CX-ED1420-BK - Low Profile Universal Electric Strike for Cylindrical Locksets - Fail Safe/Fail Secure-Fire Rated - Grade 1 - US19 - Matte Black (622)
Camden CX-ED1410 standard depth and CX-ED1420 low profile Grade 1 ANSI fire-rated strikes are designed to provide affordable code compliance to UL fire-rated doors/frames with cylindrical locksets.
These fire-rated strikes are designed to deliver unparalleled application flexibility, with field-selectable voltage and fail-safe/fail-secure operation.
Features:
- Centerline latch entry, for cylindrical locksets
- UL 90 minute fire and UL 1034 burglary listed
- CX-ED1420: 1/2" - 5/8" (12mm - 16mm) latch projection
- Dual voltage 12/24V AC/DC
- ANSI square faceplate included, 4-7/8" x 1-1/4" (124mm x 32mm)
- Field selectable fail safe / fail secure operation
- Trim plate included
Specifications:
| Voltage | 12 or 24V AC/DC |
| Current Draw | 150 mA @ 24 VDC |
| Static Hold Force | 1,500 Lbs. |
| Dynamic Strength | 70 Ft-Lbs. |
| Endurance | 1,000,000 cycles (factory tested), 250,00 cycles (UL verified) |
| Fire Rating | 90 minutes (UL verified) |
| Operation | AC - Buzz DC- Silent |
| Latch Projection | CX-ED1420: 1/2" - 5/8" (12mm - 16mm) |
| Mode | Field selectable fail safe / fail secure (Fire rated in fail secure mode only) |
| Duty | Continuous |
| Dimensions | CX-ED1420: 3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm) |
| Finish | US19 - Matte Black (622) |
