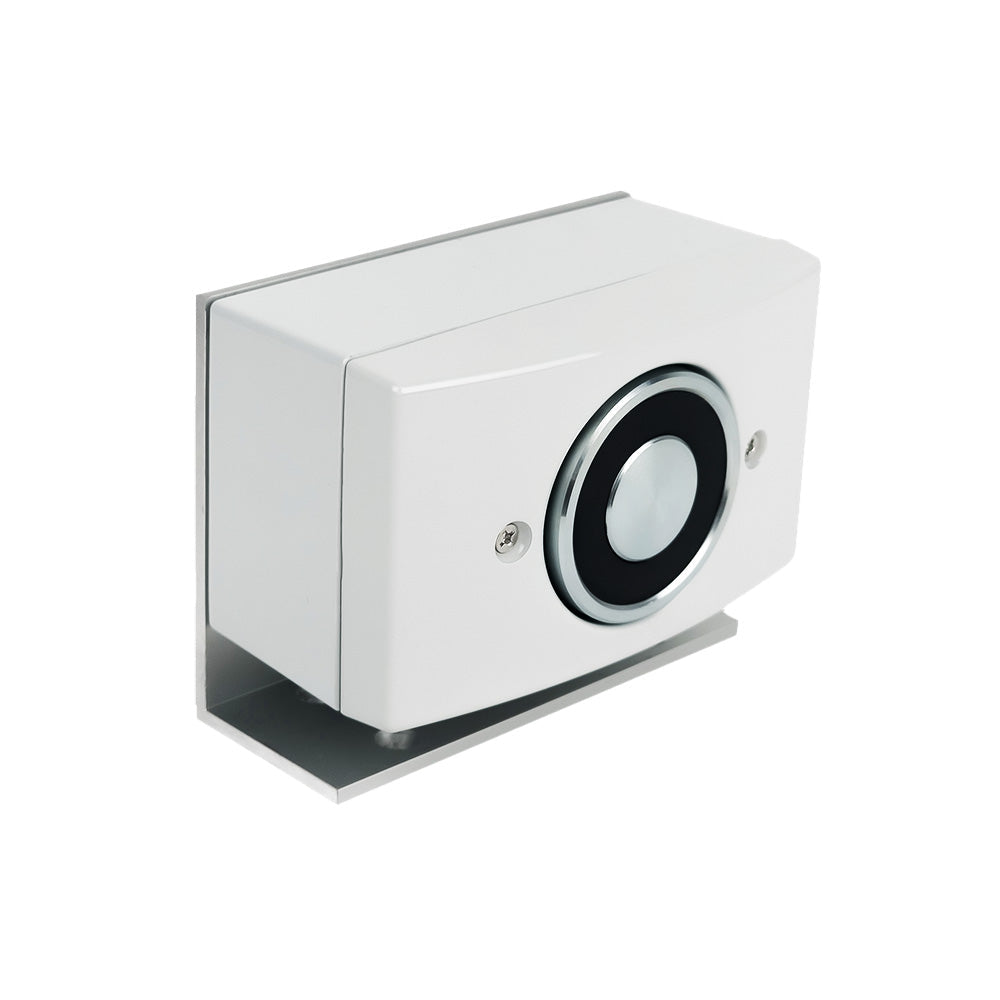

Camden - CX-95S-DH-FL - Floor Mount Magnetic Door Holder

Camden - CX-95S-DH-FL - Floor Mount Magnetic Door Holder

$127.50 USD
$191.25 USD $127.50 USD
Sale Sold out

Camden - CX-95S-DH-FL - Floor Mount Magnetic Door Holder

Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices. Camden Magnetic Door Holders may be surface or flush mounted (CX-95S-DH), or floor-mounted (CX-95S-DH-FL), with all mounting hardware included in the kit.

Features:
  • Multiple voltages: 12/24V, AC/DC, 120 VAC
  • Armature plate adjusts to door alignment
  • CX-95S-DH: Surface or flush mount model
  • CX-95S-DH-FL: Floor mount model
  • Up to 35 lbs (16 kg) holding force
  • Used for door release in public, industrial, and commercial applications
  • 3" & 7" extension bars available
  • 2-year warranty
Specifications:
Voltage 12/24V AC/DC, 120V AC
Current Draw 55mA @ 12V AC
57mA @ 12V DC, 32mA @ 24V AC
34mA @ 24V DC, 30mA @ 120V AC
Static Hold Force 12V AC/DC: Up to 30 lbs.
24V AC/DC: Up to 35 lbs.
120V AC: Up to 18 lbs.
Mount Options Surface or Flush Mount
Dimensions Surface Mount Magnet:
2-3/4" W x 4-5/8" L x 2-1/2" D (70mm x 116mm x 62mm)
Flush Mount Magnet:
2-3/4" W x 4-5/8" L x 1-3/4" D (70mm x 116mm x 44mm)
Armature Plate:
2-9/16" W x 2-9/16" L x 2-7/8" D (65mm x 65mm x 74mm)
L Bracket:
4-1/2" W x 3-9/16" L x 1-3/4" D (114mm x 90mm x 44mm)
