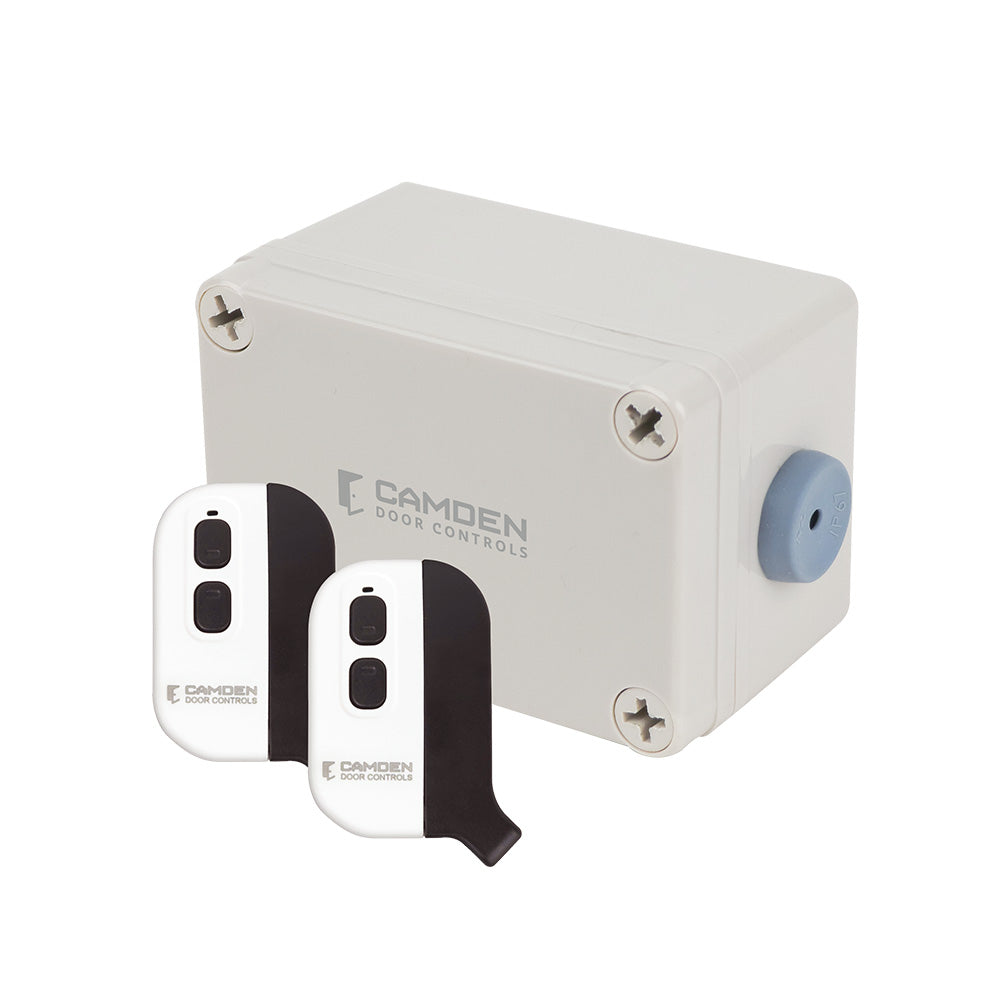

Camden CM-SRFM2 Kit Wireless 2 Channel Receiver with 2 Transmitters
The CM-SRFM2 kit will control up to two doors from one device. Ideal for front desk - reception applications or hard-to-wire locations. Designed to work with magnetic locks, electric strikes, keypads, gate operators, and door operators. Kits include a channel receiver and transmitter.
- Receiver can be mounted inside or outside. IP65 rated
- Rolling code encryption
- Field configurable latching/bi-stable mode keeps doors unlocked until button is pressed again
- Receiver can be controlled by up to 30 transmitters
- Receiver relay mode is either momentary or bi-stable for 2nd relay
Specifications:
CM-SRX2
| Voltage | 12/24V, AC/DC |
| Frequency | 868.35 MHz |
| Current Draw | (Max) 80mA |
| Relay | (2) SPST, normally open, 1st relay momentary, 2nd momentary or latching/bi-stable, 1A @ 30 VDC |
| Operating Temp | -4°F to 185°F (-20°C to +85°C) |
| Dimensions | 2-1/2"W x 3-3/4"H x 2-1/4"D (64mm x 95mm x 56mm) |
CV-WTX2
| Voltage | 3 VDC, CR2032 type battery |
| Current Draw | 12mA |
| Operating Temp | -4°F to 185°F (-20°C to +85°C) |
| Dimensions | 1-3/16"W x 2-1/8"H x 3/8"D (30mm x 57mm x 10mm) |
Includes:
- (1) CM-SRX2 Receiver
- (1) User Manual
- (2) Transmitters CV-WTX2
- (2) Wall Plugs (used for mounting)
- (2) Self Tapping Screws (used for mounting)
- (1) Grommet
