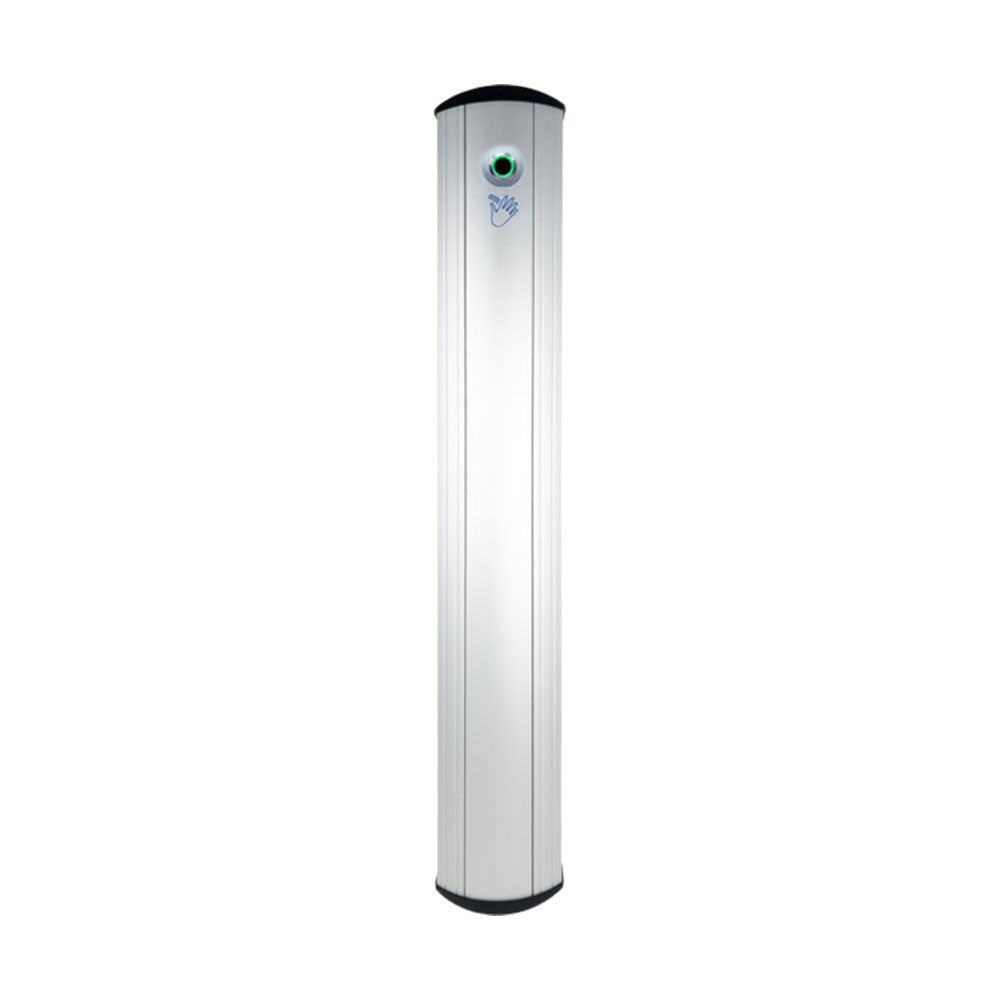

Camden CM-8536VR Side Load Push Plate Switch with Hands-free Sensor - Size 36" x 6"

Camden CM-8536VR Side Load Push Plate Switch with Hands-free Sensor - Size 36" x 6"

Camden CM-8536VR Series Hands-Free Column Switches use active infra-red microburst sensor technology, designed for use in ADA compliant automatic door control applications and access control. All models are ROHS compliant with lead-free construction. Built-in remote LED switching allows for integration with third-party applications, such as guard and nurse station annunciators or washroom indicator status. Adjustable time delay from 0.5 to 20 seconds and an adjustable range from (2" to 8" / 5cm to 20cm).
The CM-8536VR Series Hands-Free Column can be activated manually by pressing any part of its actuating column.
The CM-8536VR Series Hands-Free Column Switch has a Back Box which facilitates mounting to narrow frames, and provides easier maintenance/serivice.

Features:

• Built-in Red and Green LED indication.
• Factory default = Red (Standby), Green (Triggered)
• Red and Green LEDs can be controlled by sensor or externally
• Adjustable detecting distance: 2 to 8 inches (5 cm to 20 cm) (IR only)
• Adjustable Time Delay: 0.5 seconds to 20 seconds (IR only)
• IP65 rating (IR only)
• IR lens to provide stable and reliable operation

Specifications:

Downloads:

• Data Sheet
