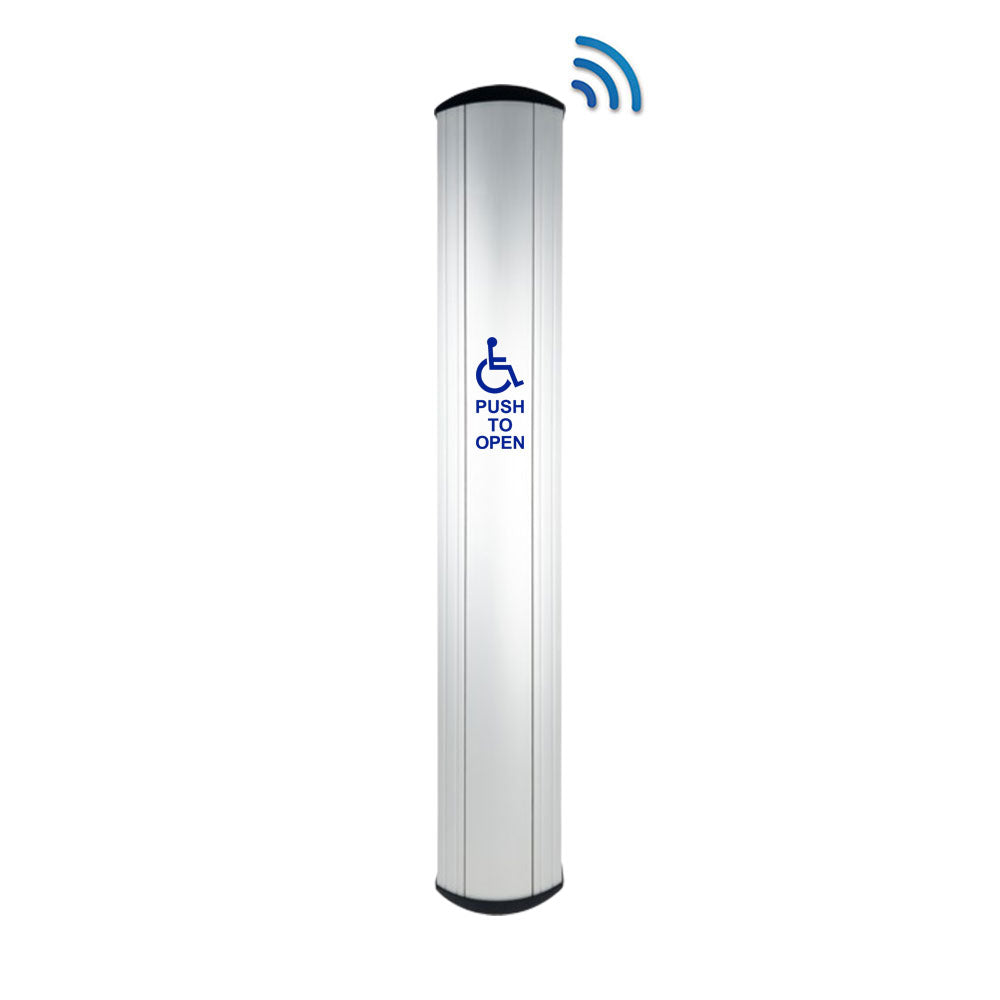

Camden CM-8536K Side Load Push Plate Switch with Built-in Kinetic No-Battery Wireless Transmitter - Size 36" x 4.5"
Camden CM-8536K Side Load Push Plate Switch with Built-in Kinetic No-Battery Wireless Transmitter - Size 36" x 4.5"
Regular price
$575.00 USD
Regular price
$701.22 USD
Sale price
$575.00 USD
Unit price
per
Couldn't load pickup availability
Camden CM-8536K Side Load Push Plate Switch with Built-in Kinetic No-Battery Wireless Transmitter - Size 36" x 4.5"
Camden CM-8536 Series Column Switches are ADA compliant wide base switches that activate from any angle, have a Back Box for easy mounting, and molded impact and flame-resistant End Caps. It utilizes two fully redundant switches, which can be hard-wired or fitted with Kinetic or Lazerpoint wireless transmitters.
Specifications:
| Contact Rating | 15 amps @ 30 VDC |
| Contacts | 2 x SPDT momentary contact switch (Form C), UL listed |
| Construction | Heavy duty extruded aluminum |
| Mounting | 4 x #14 x 1-1/2" tapping screws with anchor plugs or 1/4"-20 machine screws |
| Actuator Width | 3" (76mm) |
| Dimensions (overall) | 37-1/2" H x 5-7/8" W x 2-3/8" D (955mm x 150mm x 61mm) |
