Camden CM-8536 Side Load Push Plate Switch - Size 36" x 6"
Camden CM-8536 Side Load Push Plate Switch - Size 36" x 6"
Regular price
$472.00 USD
Regular price
$575.61 USD
Sale price
$472.00 USD
Unit price
per
Couldn't load pickup availability
Camden CM-8536 Side Load Push Plate Switch - Size 36" x 6"
Camden CM-8536 Series Column Switches are ADA compliant wide base switches that activate from any angle, have a Back Box for easy mounting, and molded impact and flame-resistant End Caps. It utilizes two fully redundant switches, which can be hard-wired or fitted with Kinetic or Lazerpoint wireless transmitters
Specifications:
| Contact Rating | 15 amps @ 30 VDC |
| Contacts | 2 x SPDT momentary Contact switch (Form C), UL listed |
| Construction | Heavy duty extruded aluminum |
| Mounting | 4 x #14 x 1-1/2" Tapping Screws with anchor plugs or 1/4"-20 Machine Screws |
| Actuator Width | 3" (76mm) |
| Dimensions (overall) |
37-1/2" H x 5-7/8" W x 2-3/8" D (955mm x 150mm x 61mm) |

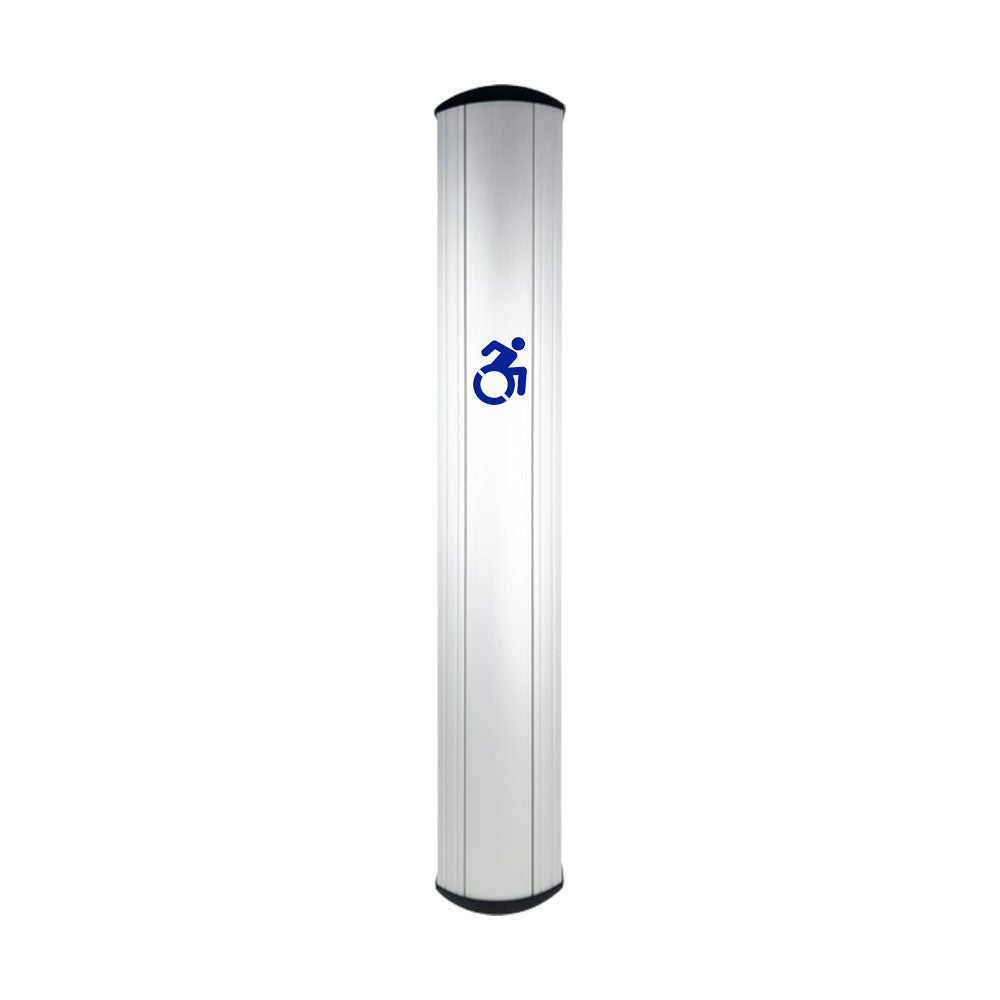

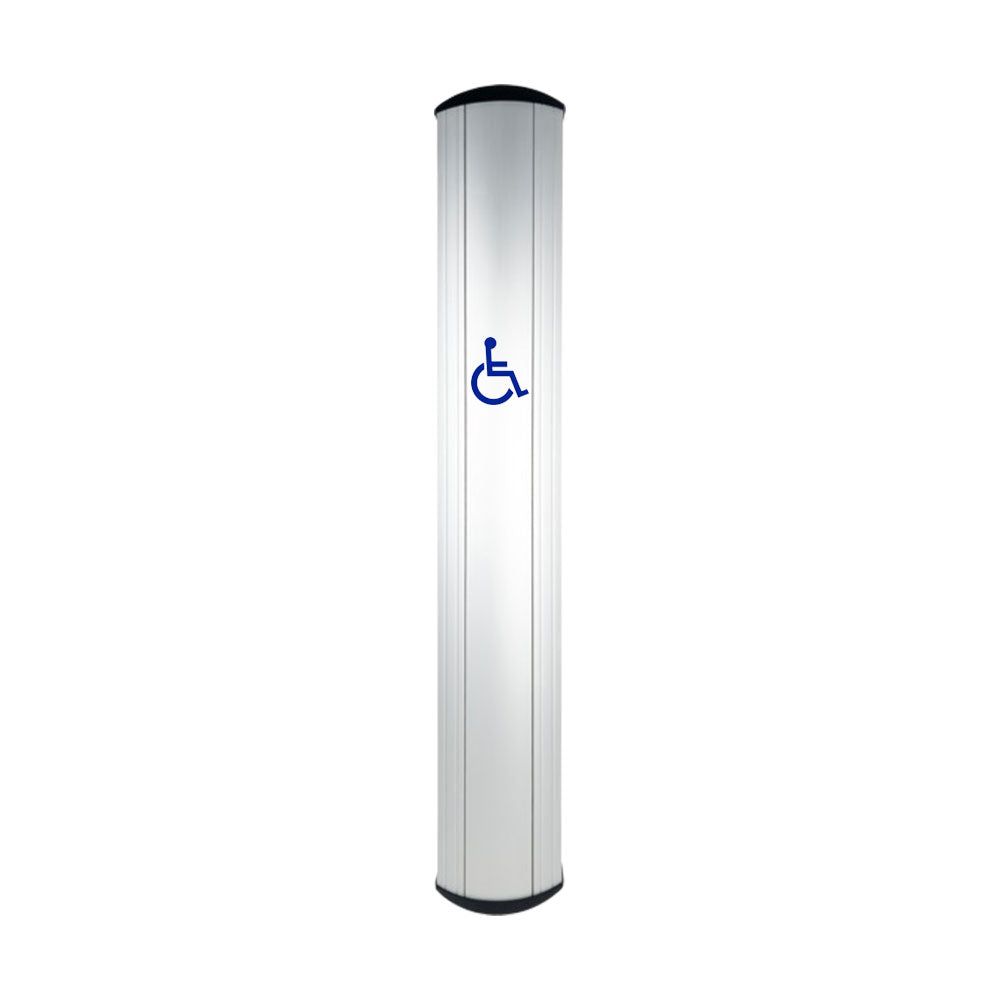

| Faceplate Graphic | CM-8536-2=Wheelchair Symbol CM-8536-4=Wheelchair Symbol and Push to Open CM-8536-40=Wheelchair Symbol and Push to Open with Foot Icon CM-8536-4FE=Wheelchair Symbol with PTO & PPO CM-8536-8B=Lock Icon & Push to Lock CM-8536-A2=Active Wheelchair Symbol CM-8536-A4=Active Wheelchair Symbol and Push to Open |
