Camden CM-8436 Side Load Column Push Plate Switch - Size 36.5" x 4.5"
Camden CM-8436 Series Column Switches are ADA compliant switches that activate from any angle, have a Back Box for easy mounting, and molded impact and flame-resistant End Caps. It utilizes two fully redundant switches, which can be hard-wired or fitted with Kinetic or Lazerpoint wireless transmitters.
Specifications:
| Contact Rating | 15 amps @ 30 VDC |
| Contacts | 2 x SPDT momentary Contact switch (Form C), UL listed |
| Construction | Heavy duty extruded aluminum |

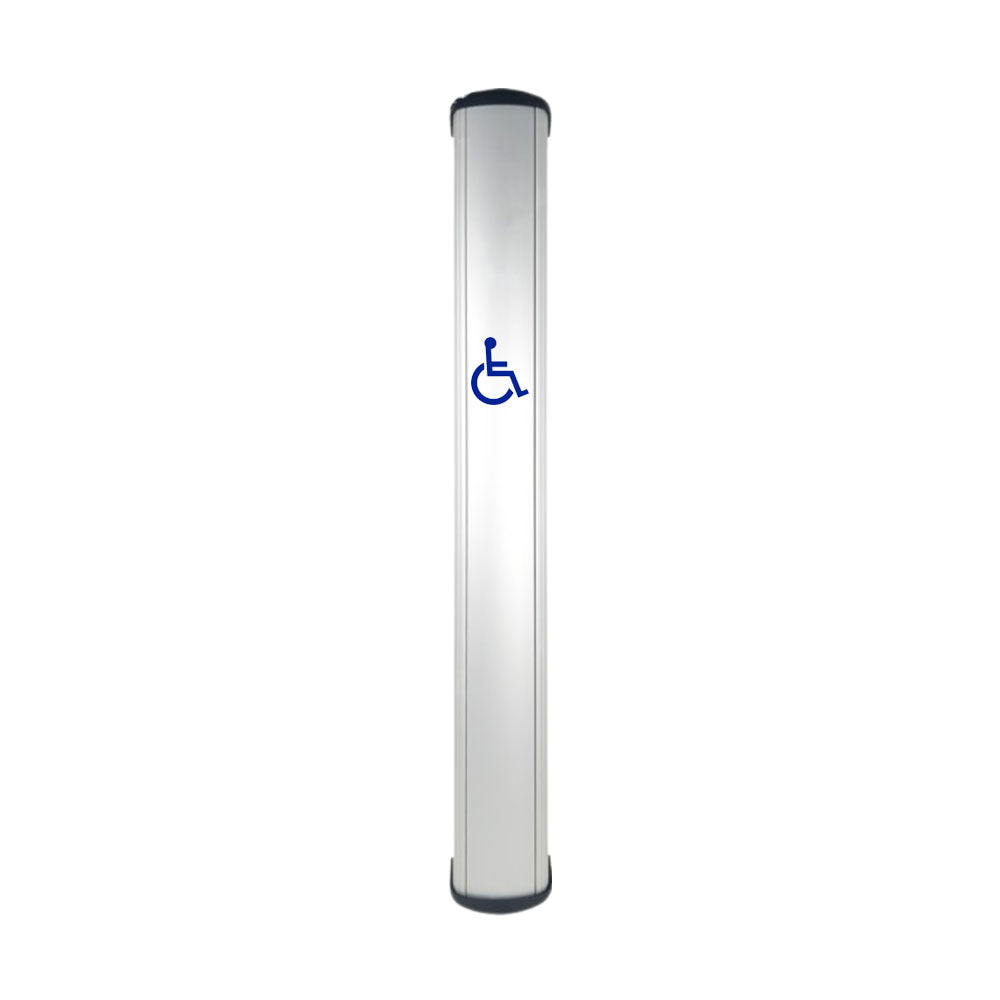

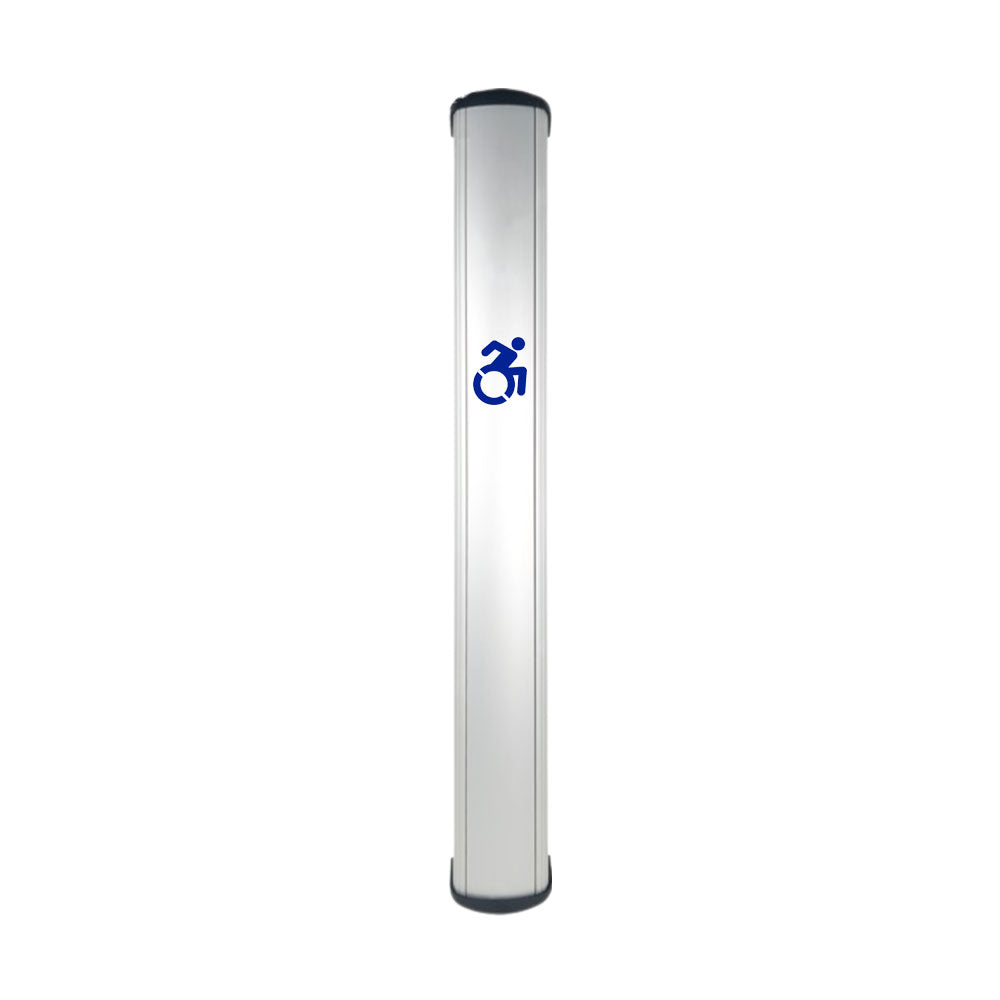

| Faceplate Graphic | CM-8436-2=Wheelchair Symbol CM-8436-4=Wheelchair Symbol and Push to Open CM-8436-8B=Lock Icon & Push to Lock CM-8436-A2=Active Wheelchair Symbol CM-8436-A4=Active Wheelchair Symbol and Push to Open |
| Mounting | 4 x #14 x 1-1/2" Tapping Screws with anchor plugs or 1/4"-20 Machine Screws |
| Actuator Width | 3" (76mm) |
| Dimensions (overall) |
37-1/2" H x 4-5/8" W x 2-7/16" D (955mm x 118mm x 62mm) |
