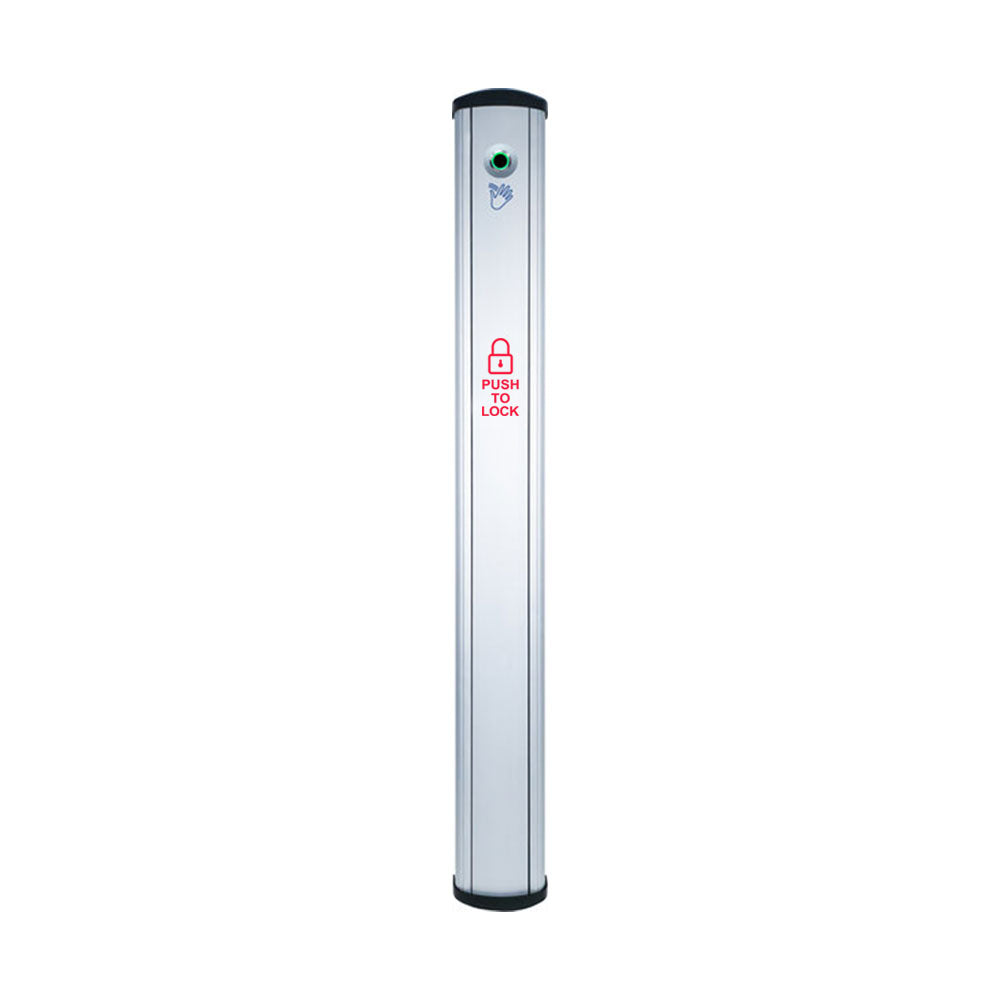

Camden CM-7436VR Top Load Push Plate Switch with Hands-Free Sensor - Size 36" x 4.5"

Camden CM-7436VR Top Load Push Plate Switch with Hands-Free Sensor - Size 36" x 4.5"

Camden CM-7436VR Series Hands-Free Column switches uses active infra-red microburst sensor technology, designed for use in ADA compliant automatic door control applications and access control. The switches eliminate the spread of germs by avoiding physical contact and provide greater convenience when moving through the premises. All models are ROHS compliant with lead-free construction. Built-in remote LED switching allows for integration with third-party applications, such as guard and nurse station annunciators. Adjustable time delay from 0.5 to 20 seconds and an adjustable range from(2" to 8" / 5cm to 20cm).
The CM-7436VR Series Hands-Free Column switches may be mounted to any flat wall surface, or to our Model CM-42 or CM-48 anodized aluminum or stainless-steel bollards. We provide necessary mounting hardware for all options.

Features:

• Built-in Red and Green LED indication
• Factory default = Red (Standby), Green (Triggered)
• Red and Green LEDs can be controlled by sensor or externally
• Adjustable detecting distance: 2 to 8 Inches (5 cm to 20 cm)
• Adjustable Time Delay: 0.5 seconds to 20 seconds
• Toggle function selection available
• IP65 rating
• IR lens to provide stable and reliable operation

Specifications:

Downloads:

• Data Sheet
