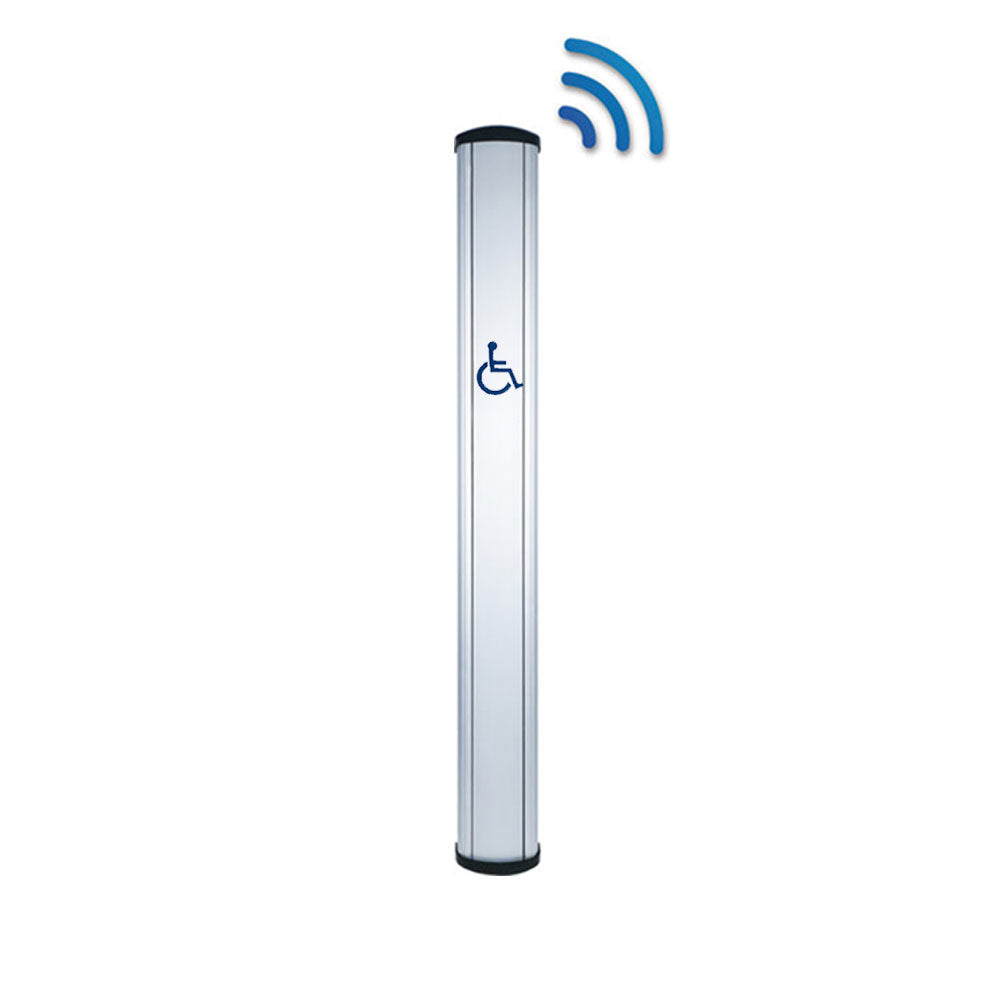

Camden CM-7436K Top Load Push Plate Switch with Built-in Kinetic No-Battery Wireless Transmitter - Size 36" x 4.5"
Camden CM-7436K Top Load Push Plate Switch with Built-in Kinetic No-Battery Wireless Transmitter - Size 36" x 4.5"
Couldn't load pickup availability
Camden CM-7436K Top Load Push Plate Switch with Built-in Kinetic No-Battery Wireless Transmitter - Size 36" x 4.5"
Camden CM-74 Series Column switches offer a rugged and attractive ADA compliant switch design that is easy to activate from any angle, providing years of trouble-free operation. CM-7436 utilizes 2 fully redundant 15 amp Form-C contact switches, and molded impact and flame resistant end caps which provide easy snap-in installation of the Lazerpoint TX-9 transmitter.The Column switch may be mounted to any flat wall surface. We provide necessary mounting hardware for all options.
CM-7436 uses two switches. It can be hard wired or fitted with either the Kinetic or Lazerpoint wireless transmitters. In the hard-wired layout, they will be wired in parallel. The wireless versions can be paired with Camden Lazerpoint or Kinetic receivers.
Specifications:
| Contact Rating | 15 amps @ 30 VDC |
| Contacts | 2 x SPDT momentary. Contact switch (Form C), UL listed. |
| Construction | Heavy duty extruded aluminum |
| Mounting | 4 x #14 wood screws or 1/4"-20 S/S machine screws with anchors |
| Dimensions | 37-1/2" H x 4-1/2" W x 1-5/8" D (overall) |
