Camden

Camden CM-701U Universal Blue Pull Station

Camden CM-701U Universal Blue Pull Station

Regular price $30.98 USD
Regular price $37.18 USD Sale price $30.98 USD
Sale Sold out

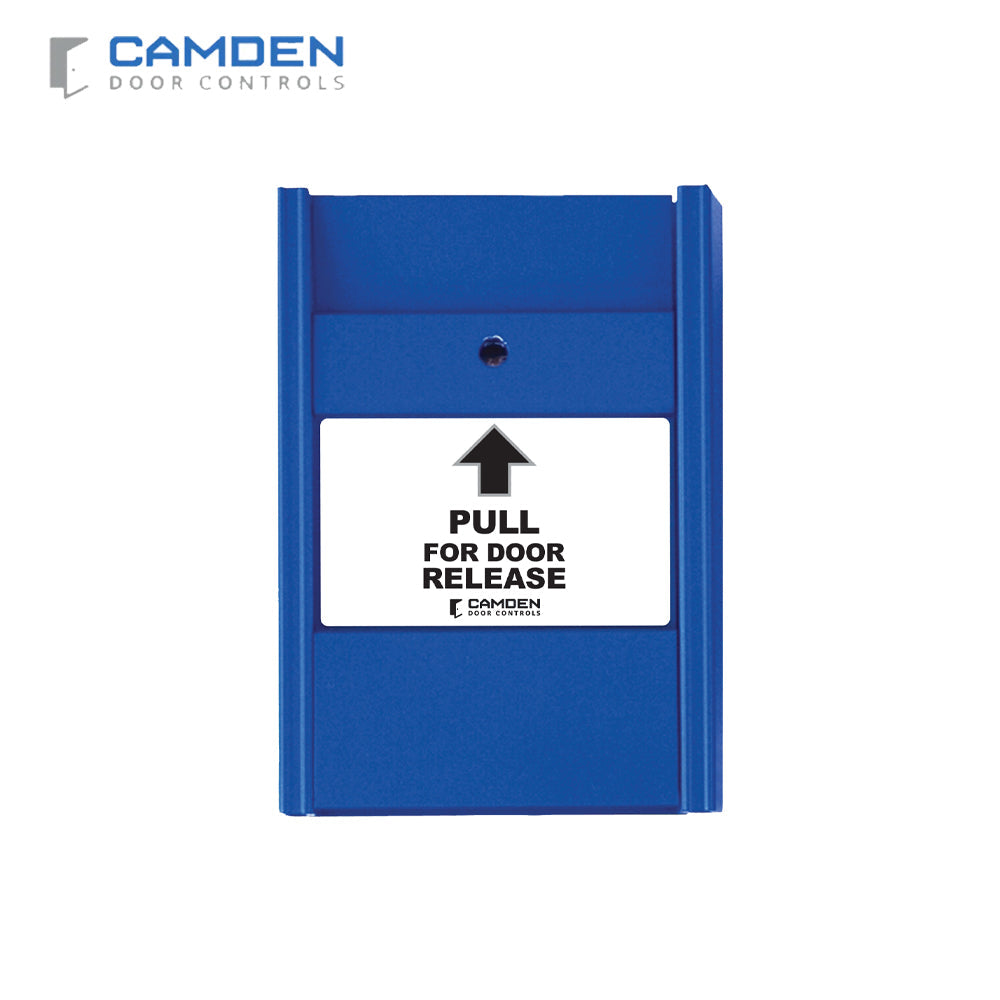

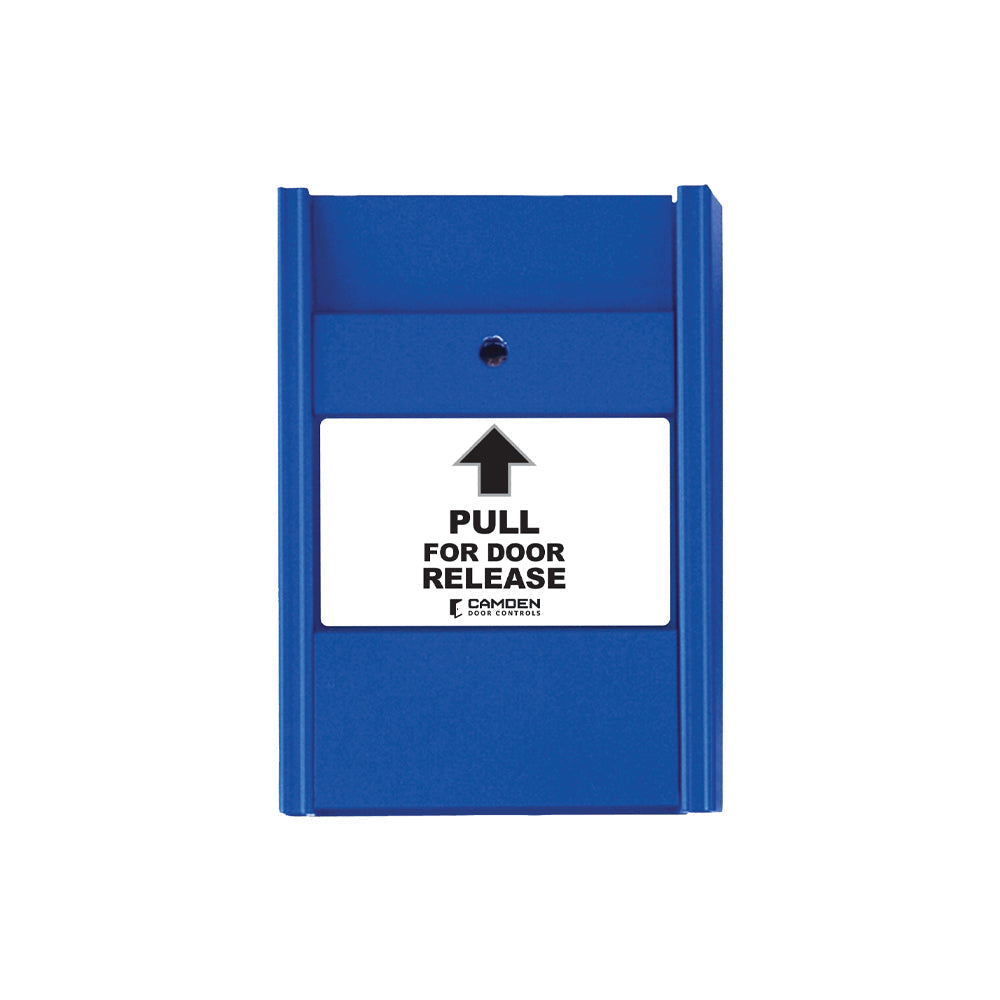

Camden CM-701U Universal Blue Pull Station

CM-700 Series 'Universal' pull stations and pull stations with sounder meet the stringent demands of emergency pull station controls. They are designed for single gang mounting and protrude only 3/4" from the wall. They are easily reset with a small screwdriver. Ideal for door release and emergency exit applications. 'Universal' models are supplied with 4 message labels.

Features:
  • Ideal for use with magnetic locks in access control applications
  • Heavy duty vandal resistant design
  • English, French and Spanish versions available
  • Available with N/O, N/C or both N/O and N/C switches
  • Optional built-in sounder
  • Optional clear lift cover
  • Convenient Wiring Terminal
  • Standard single gang mount
  • 3 year warranty
Specifications:
Construction: Extruded aluminum
Mounting: Single gang electrical box
Contact Rating: 1 Amp @ 30 VDC
Sounder: 85dB @ 10cm
40 mA @ 12 VDC
Dimensions: 4-1/2" x 3-1/2" x 1-3/8" (114mm x 90mm x 37mm)
Installation Instruction:
