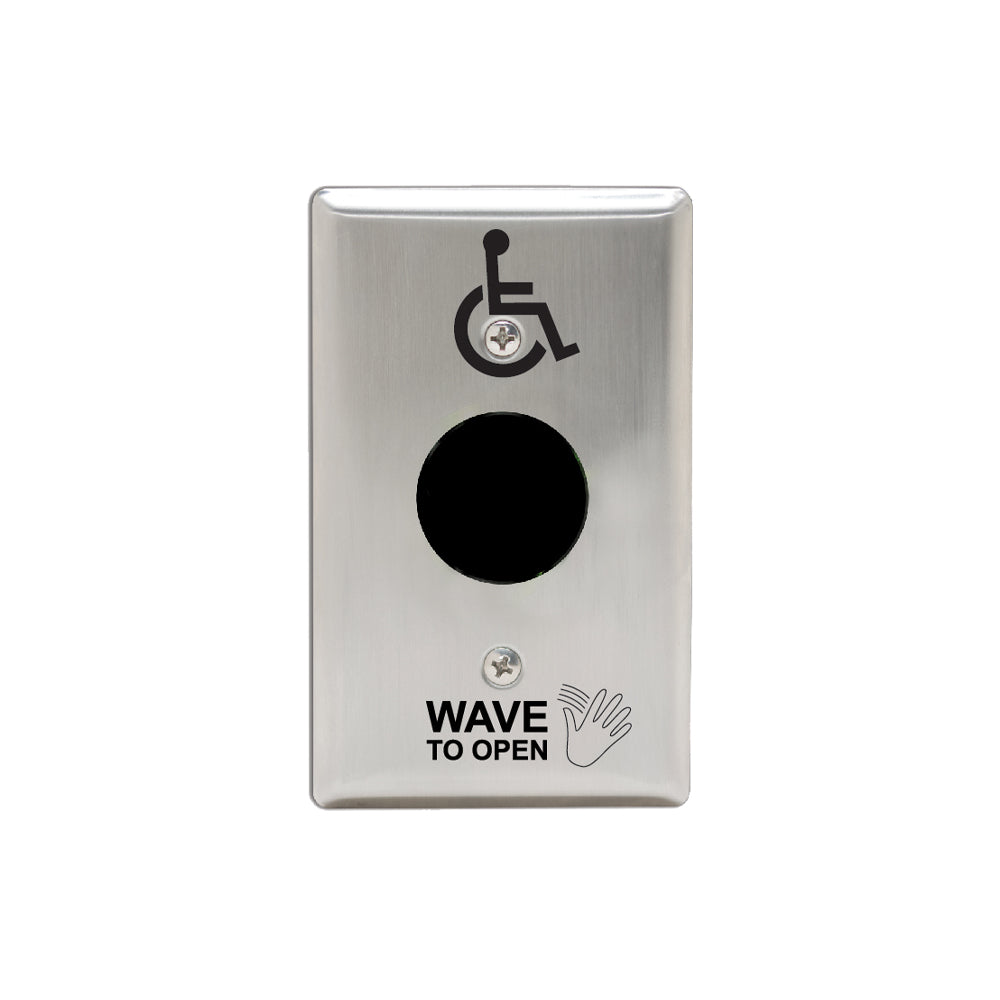

Camden - CM-336/42-S - SureWave Battery Powered Wireless Touchless Switch - Wheelchair Icon - Wave to Open with Hand Icon - Stainless Steel Faceplate

Camden - CM-336/42-S - SureWave Battery Powered Wireless Touchless Switch - Wheelchair Icon - Wave to Open with Hand Icon - Stainless Steel Faceplate

CM-336 Series are 2nd generation hands-free wireless switches provide superior door activation in new and retrofit access control and automatic door applications. Supplied with (2) AA alkaline batteries. Camden CM-RX90 Wireless Receiver required. Lithium batteries recommended for environments below 0°C (32°F).

Features:

• Wired, wireless and hybrid (wirless/wired) models
• Indoor/outdoor use. -4°F to +153°F (-20°C to +85°C) operating temp. Gasket included in package
• CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries
• Line powered models offer 12/24V AC/DC operation
• 1 and 2 relay wired models, SPDT, Form 'C'
• Narrow (jamb), single and and double gang faceplates
• Stainless Steel Faceplate
• Advanced active infra-red technology with fast response
• Heavy duty 3 or 5 Amp rated relay
• Adjustable operating range up to 28", refer to model specification
• Adjustable time delay, refer to model specification
• Selectable fail safe/fail secure operation
• CM-336 Series: 'Request to exit' and external door contact inputs

Specifications:

Installation Instruction:

• CM-336_Manual
• CM-336_Manual_FR
