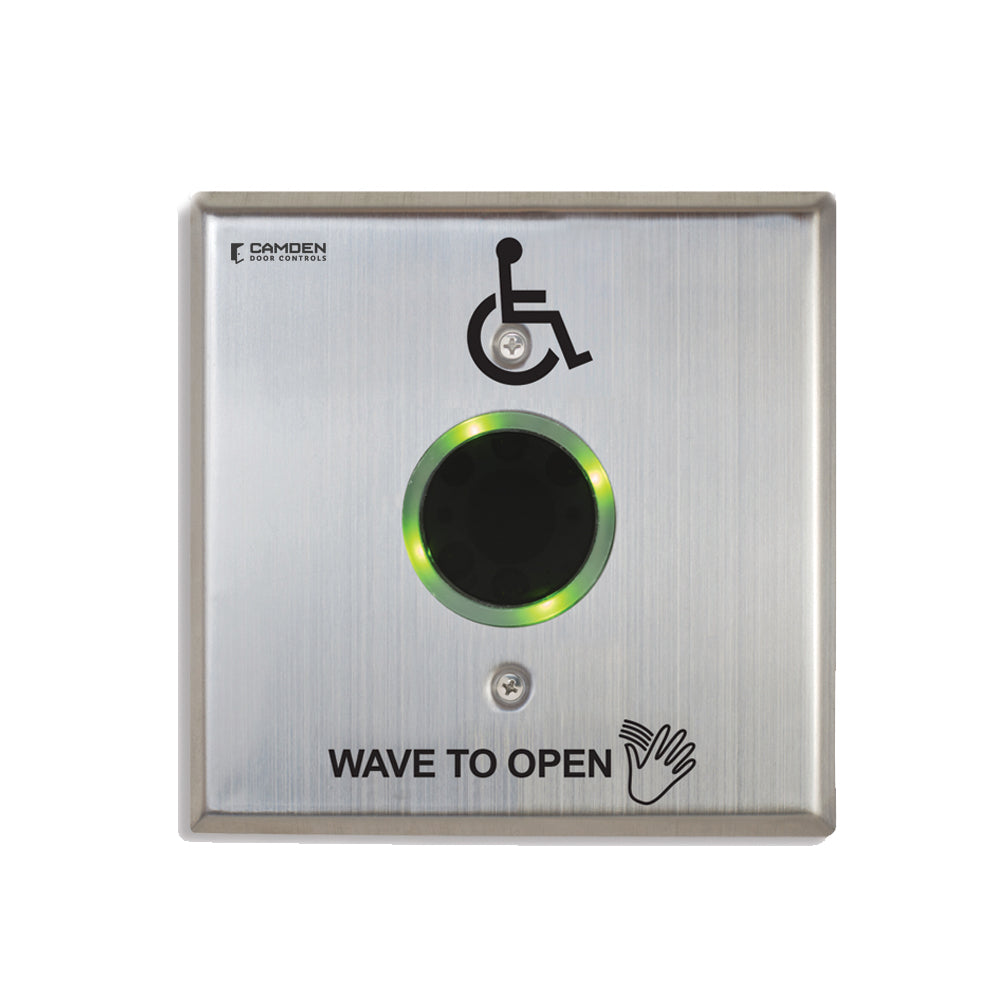

Camden CM-331/42SW-SGLR Sure Wave Wired Touchless Switch - Hand Icon - Wheelchair and Wave to Open Icon - Double Gang Faceplate with 1 Tri-Color Light Ring

Camden CM-331/42SW-SGLR Sure Wave Wired Touchless Switch - Hand Icon - Wheelchair and Wave to Open Icon - Double Gang Faceplate with 1 Tri-Color Light Ring

CM-331 touchless switches provide 'state of the art' door activation and control while eliminating the spread of germs. These line-powered touchless switches offer an adjustable operating range, selectable motion sensing and relay operating modes, hold open timer(s), REX and door position inputs, and the option for a light ring and wireless transmitter.

Features:

• Wired, wireless and hybrid (wireless/wired) models
• Indoor/outdoor use. -4°F to +153°F (-20°C to +85°C) operating temp. Gasket included in package.
• Line-powered models offer 12/24V AC/DC operation
• 1 and 2 relay wired models, SPDT, Form C
• Double gang faceplates
• Polycarbonate (black) and stainless steel faceplates
• Advanced active infra-red technology with fast response
• Heavy duty 3 or 5 Amp rated relay
• Adjustable operating range up to 28", refer to model specification
• CM-331 Selectable auto range (operation) mode of up to 6"
• Adjustable time delay, refer to model specification
• Selectable fail safe/fail secure operation
• CM-331 Active output for external alarm, LED or annunciator


Specifications:

Download:

• Installation Instruction
