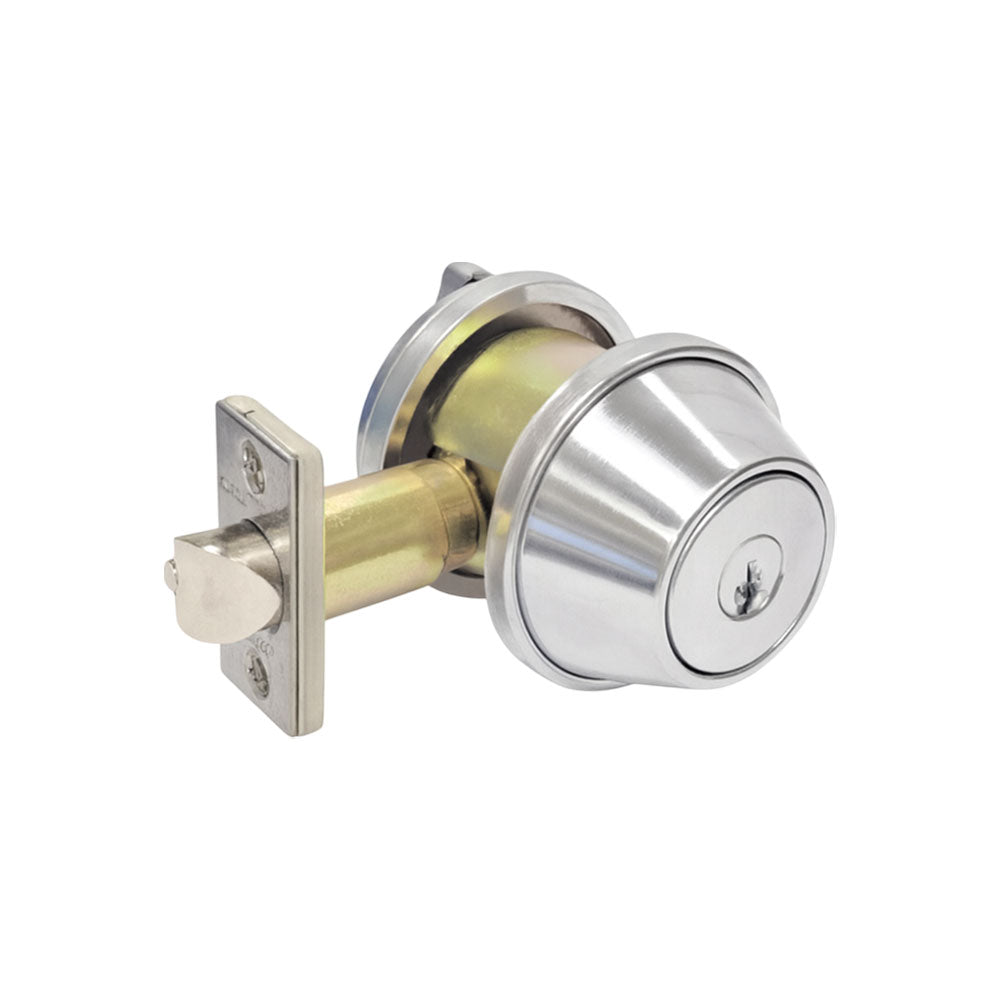

Cal-Royal - ULDL-55 - Guardian Series Standard Duty Cylindrical Dead Latches with Single Cylinder and Turn Piece - Grade 2

Cal-Royal - ULDL-55 - Guardian Series Standard Duty Cylindrical Dead Latches with Single Cylinder and Turn Piece - Grade 2

$114.84 USD
$149.14 USD $114.84 USD
Sale Sold out
Color

Cal-Royal - ULDL-55 - Guardian Series Standard Duty Cylindrical Dead Latches with Single Cylinder and Turn Piece - Grade 2

Features:
  • ADA Ergonomic Thumb Turn
  • UL-Listed, 90-Min Fire Rated
  • 2-3/4" Standard Backset
  • ANSI / BHMA A156.36, Grade 2 Standards
  • Dead locking latch bolt retracted by key from outside and by thumb turn from inside. No latch bolt hold back
Specifications:
Exposed Trim Wrought Brass or Stainless Steel
Door Ranges 1 3/8" to 1 3/4" door thickness (Use optional adapter ring for 1 3/8" doors, sold separately)
Backset 2 3/4" Standard; 2 3/8", 3 3/4" and 5" Optional
Dead Latch 1/2" Throw, Solid Brass
Dead Latch Faceplate 2 1/4" x 1", square corner packed with 1/8" filler for 1 1/8" width
Bore Diameter 1" for latch, 2 1/8" for lock housing
Strike T-Strike Standard; ASA and full lip strike available upon request
Keyways 6-Pin Solid Brass "C" Keyway Standard; Weiser "E", Arrow "A", Kwikset also available
ANSI Standards Meets or Exceeds ANSI / BHMA A156.36, Grade 2 Standards
ANSI E01122
