Cal-Royal

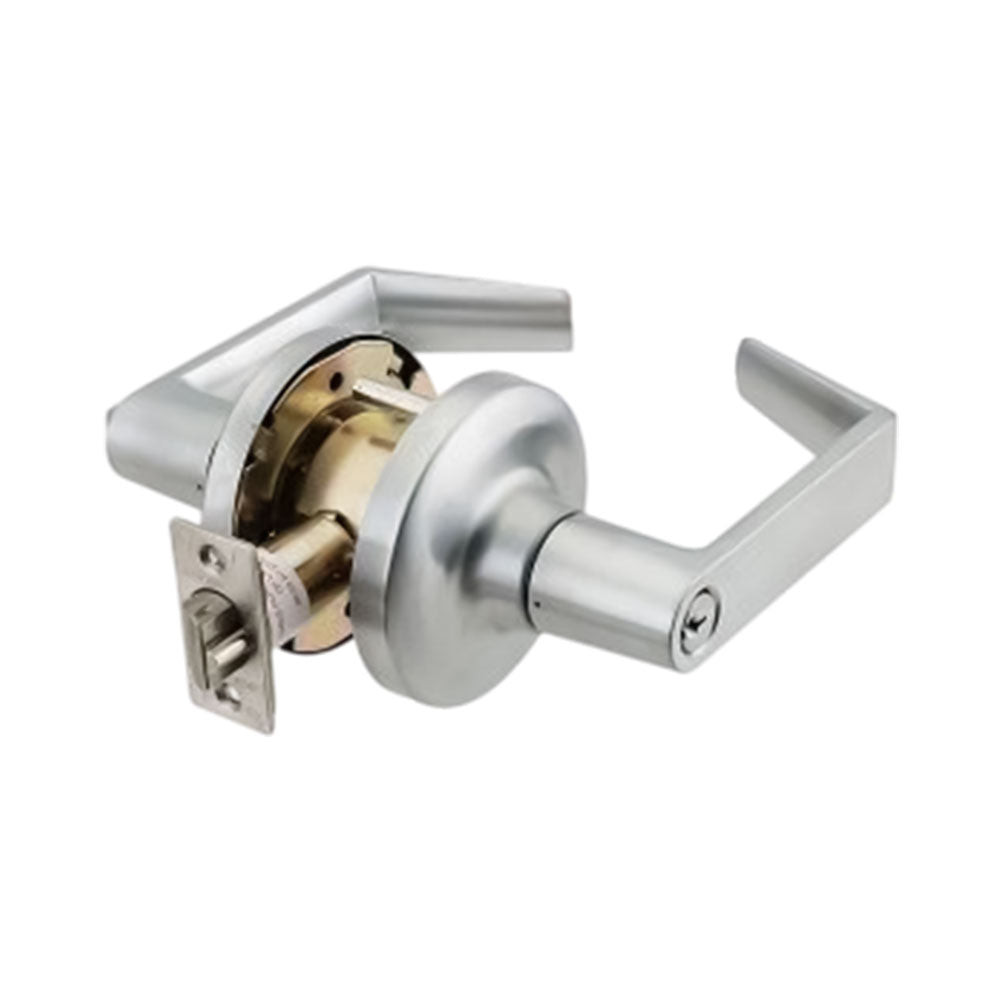

Cal-Royal - SL50 - Pioneer Heavy Duty Cylindrical Lever Set with Exit Function (Non-Clutch Mechanism) - Grade 2

Cal-Royal - SL50 - Pioneer Heavy Duty Cylindrical Lever Set with Exit Function (Non-Clutch Mechanism) - Grade 2

$68.24 USD
$88.62 USD $68.24 USD
Sale Sold out
Color

Cal-Royal - SL50 - Pioneer Heavy Duty Cylindrical Lever Set with Exit Function (Non-Clutch Mechanism) - Grade 2

Features:
  • Optional thru-bolt installation
  • Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
  • Meets ADA requirements specially designed for Barrier-Free application
  • Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
Specifications:
Applications For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
Door Ranges 1 3/8" to 1 3/4" thickness doors.
Backset 2 3/4" Standard, 2 3/8", 3 3/4" and 5" optional.
Latch Bolt 1/2" Throw solid brass, reversible for RH or LH applications. UL Listed.
Latch Faceplate 2 1/4" x 1 1/8", adjustable for flat or beveled doors 1 3/8" in 2", for 2 3/4" backset. Optional 2 1/4" x 1" for 2 3/8" backset.
Strikes ASA strike standard, "T" and full lip strike available on request. TACTILE & LEAD LINING available upon request.
Keying 6-pin "C" keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
Cylinder and Keyways 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
Clutch Clutch available on all keyed locks and privacy functions. Prefix "C" before part number.
Interchangeable Core Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
ANSI Standards Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
