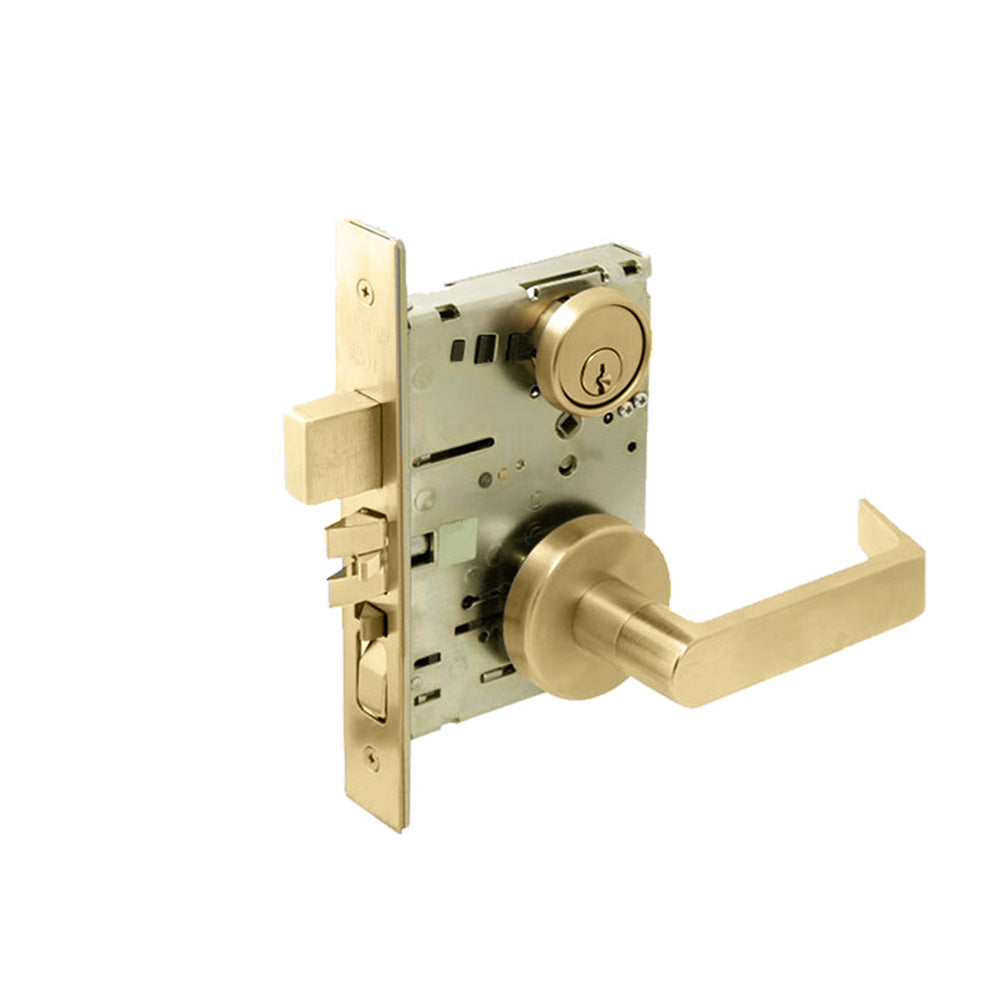

Cal-Royal - NM8466 - NM Series Heavy Duty Store Door Lock Mortise Lockset with 2-3/4" Backset - Grade 1

Cal-Royal - NM8466 - NM Series Heavy Duty Store Door Lock Mortise Lockset with 2-3/4" Backset - Grade 1

$229.16 USD
$297.61 USD $229.16 USD
Sale Sold out
Color
Handed
Trim Design

Cal-Royal - NM8466 - NM Series Heavy Duty Store Door Lock Mortise Lockset with 2-3/4" Backset - Grade 1

Function: ANSI F14 - Latch bolt operated by lever from either side. Deadbolt projected or retracted by key on either side. Latch bolt and deadbolt are independent of each other.

Features:
  • BHMA Certified Lifetime Warranty, GRADE 1.
  • Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty.
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997.
  • Optional Interchangeable Core.
  • Rust-proof heavy duty 2 3/4" backset lock case.
  • Individual spring to prevent lever sag, easily reversible.
  • Forged brass lever handles exceed requirements of ADA (American Disability Act).
  • Auxiliary latch bolt.
  • Armored front plate conceals lock mounting screws.
  • 1" throw heavy duty deadbolt with anti-saw hardened pins.
  • Heavy duty 3/4" latch bolt with anti-friction latch; easily reversible.
  • Optional Electrified Locks available
  • Conforms and Meets ADA Regulations
Specifications:
Function Storeroom - ANSI F14
Door Thickness 1-3/4"
Backset 2-3/4" (70mm)
Handing Right
Left
Strike Brass, non-handed curved strike 4-7/8" x 1 1/4"
Deadbolt 1" throw, brass, chrome plated with hardened steel rollers
Latch Bolt Brass, chrome plated with heavy-duty deadbolt
Trim Design SS Sectional
SE Escutcheon
Front Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors and doors beveled 1/8" in 2"
Guardbolt Extruded brass, chrome plated
Stopworks Rocker type, brass, chrome plated
UL Listing UL Listed "A" Label (3 hours), for use on fire doors, single or pair of doors. "F" mark stamped on strike
Certifications Meets ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles
Finishes:
  • US3 - Bright Polished Brass (605)
  • US4 - Clear Coated Satin Brass (606)
  • US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
  • US26 - Bright Chromium Plated (625)
  • US26D - Satin Chromium Plated (626)
  • US32D - Satin Stainless Steel (630)
  • US19 - Black Powder Coat
