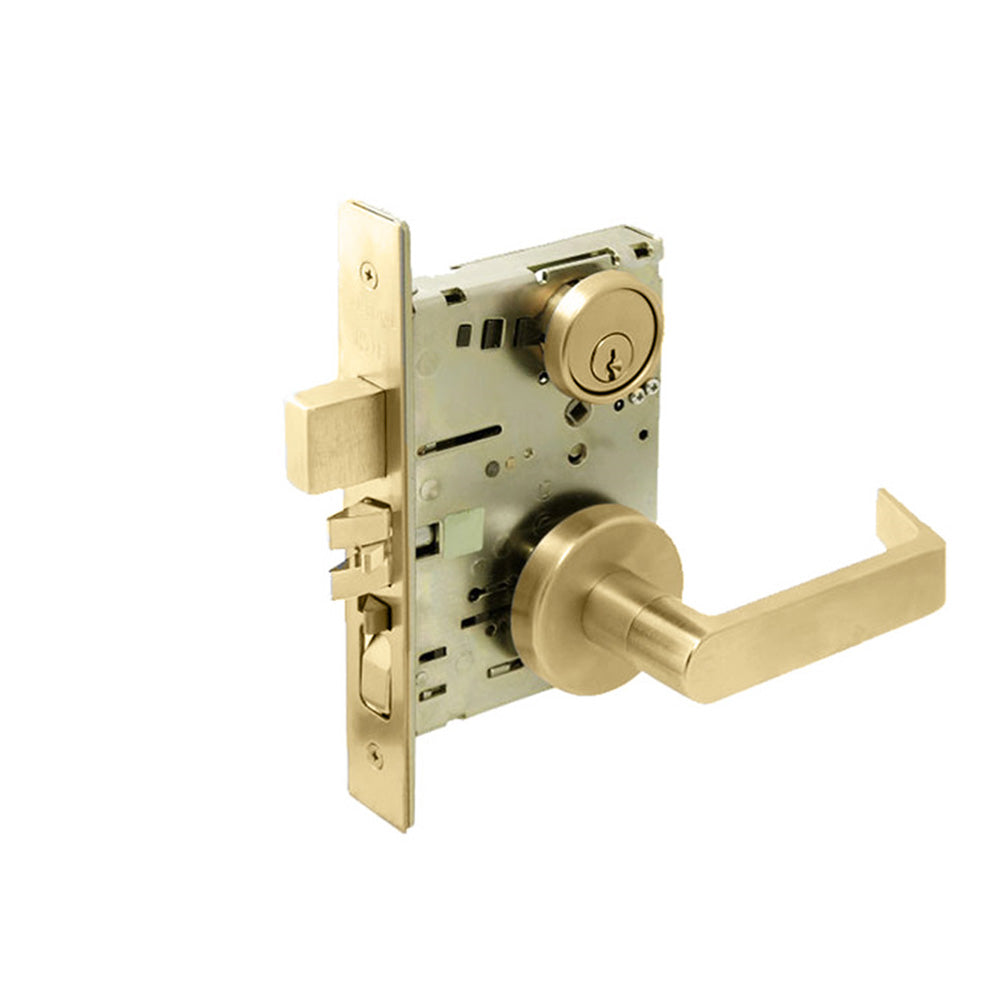

Cal-Royal - NM8050 - NM Series Heavy Duty Office / Entrance Mortise Lockset with 2-3/4" Backset - Grade 1
Cal-Royal - NM8050 - NM Series Heavy Duty Office / Entrance Mortise Lockset with 2-3/4" Backset - Grade 1
Regular price
$213.34 USD
Regular price
$277.06 USD
Sale price
$213.34 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - NM8050 - NM Series Heavy Duty Office / Entrance Mortise Lockset with 2-3/4" Backset - Grade 1
Latch bolt retracted by key outside and inside lever when outside lever is locked. Outside lever retracts latch bolt unless outside lever is locked by operating toggle button. Outside lever is locked and unlocked by toggle button. Key outside locks outside lever only. When latch bolt is retracted by inside lever, outside lever remains locked. Auxiliary latch deadlocks latch bolt when door is closed. Inside lever is always free for immediate exit.
Features:
- BHMA Certified Lifetime Warranty, GRADE 1.
- Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty.
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Optional Interchangeable Core.
- Rust-proof heavy duty 2-3/4" backset lock case.
- Forged brass lever handles exceed requirements of ADA (American Disability Act).
- Individual spring to prevent lever sag, easily reversible.
- Auxiliary latch bolt.
- Armored front plate conceals lock mounting screws.
- 1" throw heavy duty deadbolt with anti-saw hardened pins.
- Heavy duty 3/4" latch bolt with anti-friction latch, easily reversible.
- Optional Electrified Locks available.
- Conforms and Meets ADA Regulations.
Specifications:
| Function | Office/Entrance - ANSI F04 |
| Door Thickness | 1-3/4" (44.5mm) standard |
| Backset | 2-3/4" |
| Lockcase | Heavy gauge zinc chromate steel |
| Front | Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors and doors beveled 1/8" in 2" |
| Armored Front | Wrought brass attached by machine screws to lockcase front |
| Deadbolt | 1" throw, brass, chrome plated with hardened steel rollers |
| Latchbolt | Brass, chrome plated with heavy-duty deadbolt |
| Guardbolt | Extruded brass, chrome plated |
| Stopworks | Rocker type, brass, chrome plated |
| Strike | Brass, non-handed curved strike 4-7/8" x 1-1/4". Curved-up strike available upon request |
| Handing | Right Left |
| Trim Design | SS Sectional SE Escutcheon |
| UL Listing | UL Listed "A" Label (3 hours), for use on fire doors, single or pair of doors. "F" mark stamped on strike |
| ANSI/BHMA | Meets ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1 Standards. Lock body conforms to Federal |
| Escutcheon Dimension | 2-1/2" W x 8-1/4" H x 1/2" T |
Finish:
- US3 - Bright Polished Brass (605)
- US4 - Clear Coated Satin Brass (606)
- US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
- US26 - Bright Chromium Plated (625)
- US26D - Satin Chromium Plated (626)
- US32D - Satin Stainless Steel (630)
- US19 - Black Powder Coat
