Cal-Royal

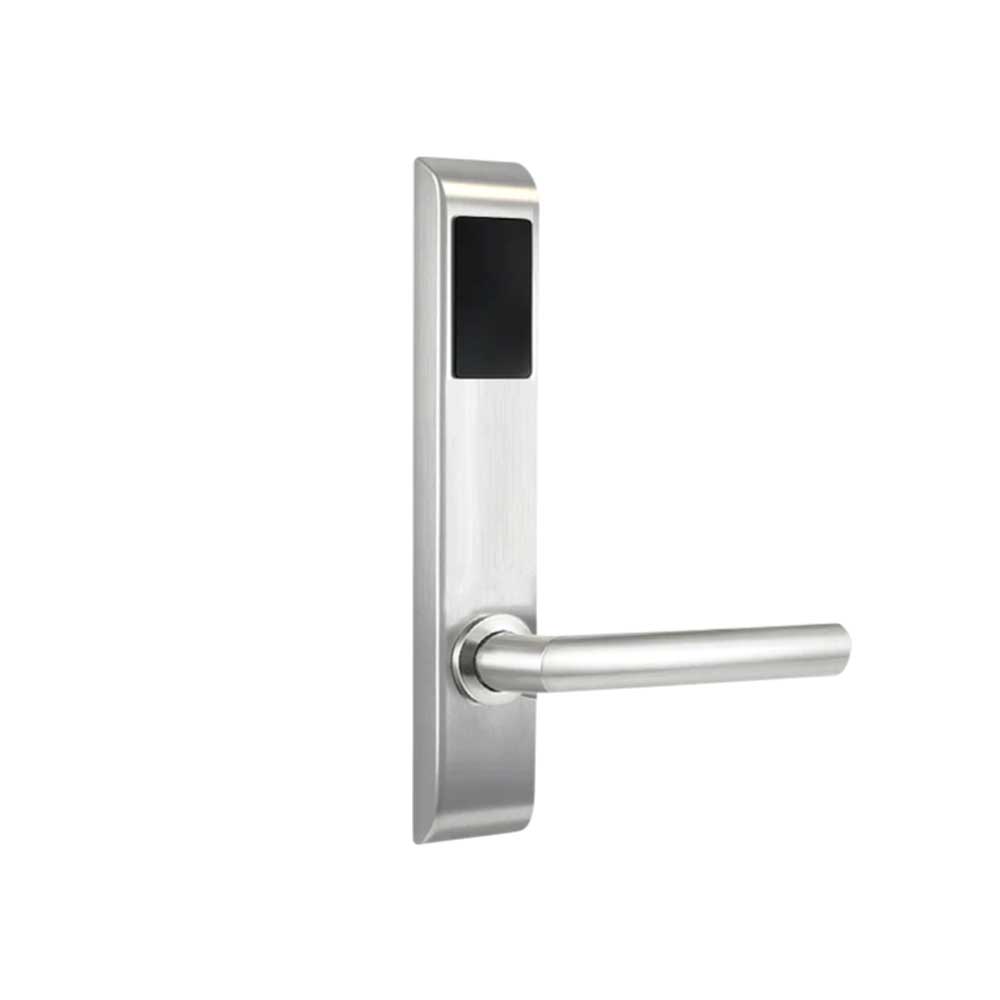

Cal-Royal - MRCR98D - Smart Exit Device Trim for Mortise Panic Bar - Clutch Mechanism - Grade 2
Cal-Royal - MRCR98D - Smart Exit Device Trim for Mortise Panic Bar - Clutch Mechanism - Grade 2
Regular price
$645.00 USD
Regular price
$860.00 USD
Sale price
$645.00 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - MRCR98D - Smart Exit Device Trim for Mortise Panic Bar - Clutch Mechanism - Grade 2
The Cal-Royal MRCR98D Smart Exit Device Trim is a Grade 2 smart access solution designed for mortise panic bar doors in commercial and residential settings. It supports standard door preparations and offers smartphone app control and RFID access, durable clutch operation, low-battery indicators, emergency USB power, and weather-resistant performance-making it a reliable and modern choice for offices, apartments, hotels, and high-traffic entrances.
Features:
- Apple and Android Compatible
- Can be managed or sync using the TUYO/TTLOCK app.
- Smart Phone connectivity; WIFI lock and unlock
- Keypad Anti-Tamper Lockout
- Key/Thumbturn Turning Detector
- Passage Mode
- Anti-peeping function
- Optional Auto Re-locking
- Restricted Access Right
- One-Time User PIN Code
- Low Battery Indicator
- Factory Default Passcode
- 3-Years Warranty
Specifications:
| Application | For offices, apartments, hotel/motels, residential, and commercial |
| Grade | ANSI/BHMA A156.2, Grade 2 |
| Door Thickness | 1-1/2" to 2-3/8" |
| Backset | 2-3/4" |
| Latch Faceplate | 8" x 1-1/8" square corner |
| Clutch | Clutch technology allows turning of lever without retracting latch. Thus prolonging the life of the lock by reducing stress on the spindle and other parts. NO CYLINDER OVERRIDE. |
| Function | MRCR98D The latch bolt is operated by a lever on the outside and a push bar on the inside. To retract the latch when turning the lever, the outside requires the RFID card to be tapped. The Smart Phone App can override the RFID card or key fob for access. |
| Cylinder | 6-pin "C" cylinder |
| Power Supply | 4 x AAA alkaline batteries (included) |
| Emergency Power | Type-C USB emergency power cable |
| Weather Resistance | All models are weather resistant for temperature operating ranges of -4°F ~ 149°F (-20°C ~ +65°C) For outdoor use of the Front Panel, the back panel should not be exposed to outdoor conditions and it is recommended to use an outdoor lock cover protector. Optional rubber seal for enhanced weather resistance in outdoor use. (Included in the box) |
| Compatibility | Compatible with N-MR7700 and N-MR9800. (Sold Separately). |
Downloads:
