Cal-Royal

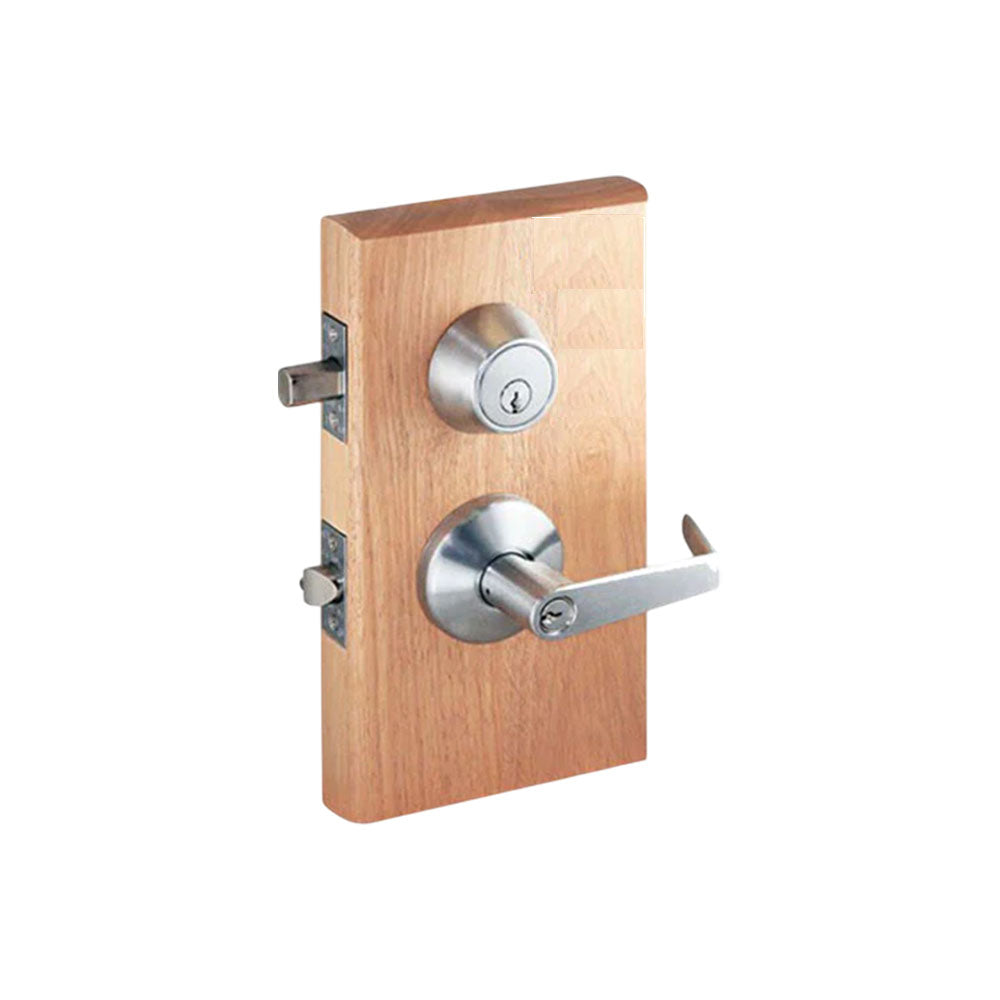

Cal-Royal - JHILDOV00 - Entrance Interconnected Leverset with Double Locking and Dover Lever - Grade 2 - US26D - Satin Chromium Plated (626)
Cal-Royal - JHILDOV00 - Entrance Interconnected Leverset with Double Locking and Dover Lever - Grade 2 - US26D - Satin Chromium Plated (626)
Regular price
$154.43 USD
Regular price
$200.76 USD
Sale price
$154.43 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - JHILDOV00 - Entrance Interconnected Leverset with Double Locking and Dover Lever - Grade 2 - US26D - Satin Chromium Plated (626)
Features:
- Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2.
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997.
- Unique individual spring on the exterior and interior side of lever to prevent lever sag.
- Solid brass 6-Pin "C" keyway cylinder.
- Meets the Buy American Act.
- Entrance Function.
Specifications:
| Door Thickness | 1-3/8" and 1-3/4" doors. |
| Backset | Adjustable 2-3/8" - 2-3/4" |
| Lock Function | Entrance (Double Locking) |
| Strike | Standard "T" strike furnished with lockset. 2-3/4" x 1-1/8" square strike with deadbolt. |
| Escutcheon | 9-3/16" x 3-3/16" brass plated. Packed with interior escutcheon. |
| Deadbolt | 1" Throw. UL-Listed Adjustable 2 3/4" or 2 3/8" Brass with hardened steel pin. Standard 2-1/4" x 1" face plate, packed with plastic filler for 1-1/8" door preparations. |
| Latchbolt | 1/2" Throw. UL-Listed for 3 hour doors. |
| Latch Faceplate | Standard 2-1/4" x 1" face plate, packed with plastic filler for 1-1/8" door preparations. |
| Keyway | Solid brass 6-Pin "C" keyway cylinder. |
| Finish | US26D - Satin Chromium Plated (626) |
