Cal-Royal

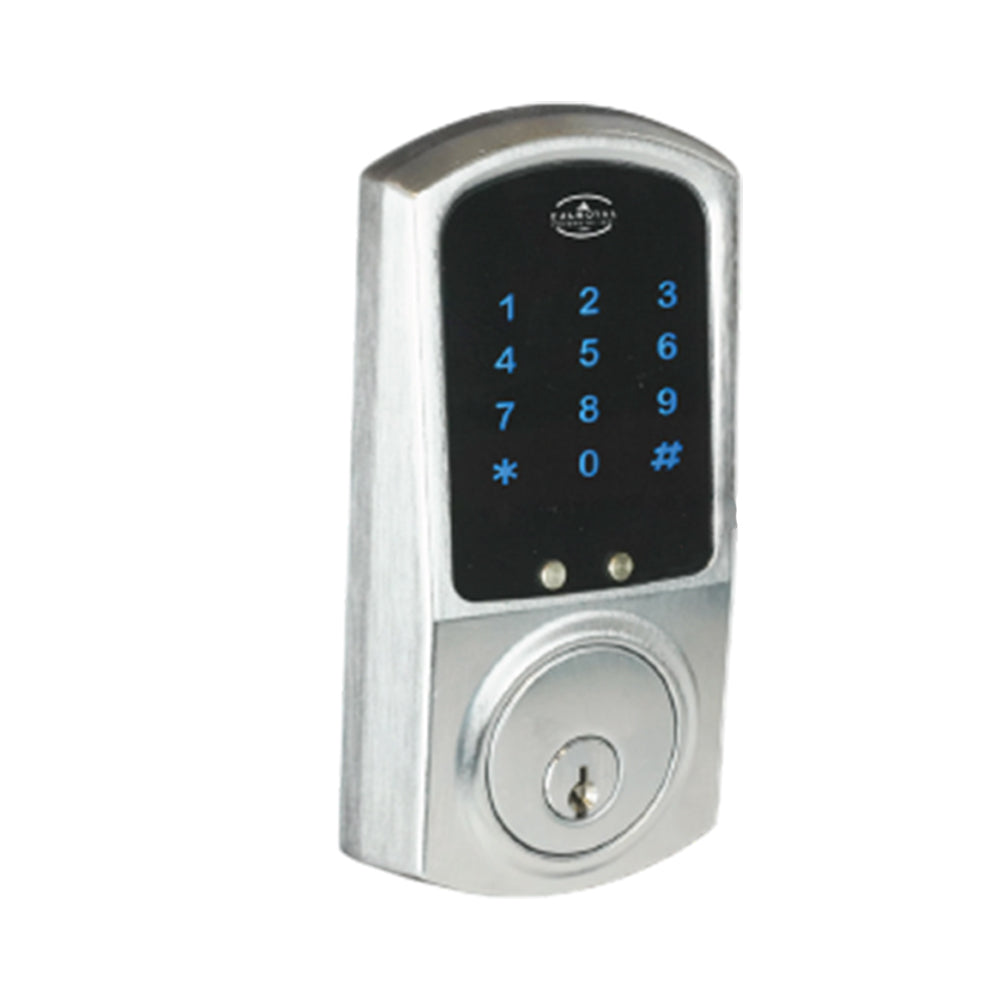

Cal-Royal - JE-80M - Smart Digital Touch Screen, RFID and Smart Connect Motorized Deadbolt Lock - Grade 2

Cal-Royal - JE-80M - Smart Digital Touch Screen, RFID and Smart Connect Motorized Deadbolt Lock - Grade 2

$518.00 USD
$672.73 USD $518.00 USD
Sale Sold out
Color

Cal-Royal - JE-80M - Smart Digital Touch Screen, RFID and Smart Connect Motorized Deadbolt Lock - Grade 2

The Cal-Royal JE-80M is a smart digital deadbolt lock featuring a responsive touch screen, RFID access. Equipped with a motorized locking mechanism, this Grade 2 lock offers advanced security with support for multiple user codes, RFID credentials, and emergency key override

Features:
  • 4-6 digit PIN code combination with secure master code management
  • Supports up to 500 RFID cards/keyfobs and 500 user codes per lock
  • 13.56 MHz proximity RFID card compatible with optional RFID keyfob
  • Includes 2 one-time user codes and convenient passage mode
  • Motorized locking mechanism with cylinder/key override for emergency access
  • Advanced security features including anti-tamper lock-out and lock-out mode
  • Touch screen keypad wakes up to lock or unlock the door instantly
  • Weather-resistant construction with 9V emergency battery port
  • Non-handed, fully reversible design for left or right-hand doors
  • Backed by a 2-year manufacturer warranty
Specifications:
Applications Offices, schools, hospitals, apartments, condo units, hotels/motels, residential, commercial and public buildings
Door Thickness 1.375 in to 1.750 in (standard)
Deadbolt UL-Listed adjustable motorized latch, 2.750 in or 2.375 in backset, 1.000 in throw; brass with hardened steel pin insert
Latch Faceplate Standard 2.250 in x 1.000 in faceplate; includes 1.125 in plastic filler for 1.125 in door preparations
Strike 2.750 in x 1.125 in square corner deadbolt strike; includes (2) 3.000 in screws and wood frame reinforcer
ANSI Standards Meets ANSI / BHMA A156.5 Grade 2 requirements
Cylinder 6-pin solid brass cylinder, Schlage "C" keyway; includes two brass keys per lock
Proximity RFID Card (Standard) (2) cards included; MIFARE compatible; ISO 14443A; 13.56 MHz; read range up to 1.1875 in
RFID Keyfob (Optional) ISO 14443A compliant; 13.56 MHz; read range up to 1.1875 in
Power Supply 4 x AA 1.5V alkaline batteries (included)
Operating Environment Weather resistant; operating temperature -30°F to 150°F (-35°C to 66°C) at up to 85% relative humidity
Touch Screen Human-touch responsive touchscreen with automatic sleep mode after operation


Packaging Includes:
  • UL-Listed adjustable motorized deadbolt, 2.750 in or 2.375 in backset
  • 2.250 in x 1.000 in faceplate with plastic filler
  • 6-pin solid brass "C" cylinder
  • 2 RFID cards
  • 4 x AA 1.5V alkaline batteries
  • 2.750 in x 1.125 in square corner deadbolt strike
  • (2) 3.000 in screws with wood frame reinforcer
  • Rubber insert
Downloads:
