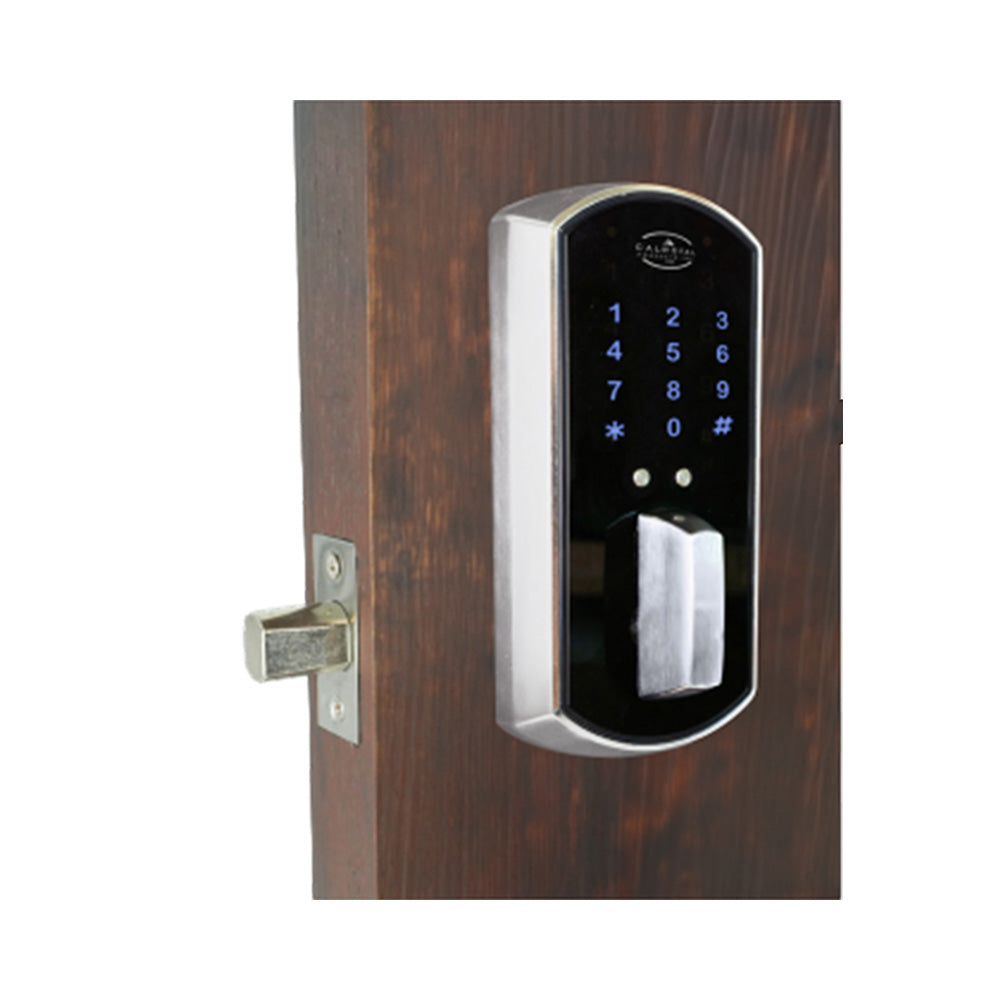

Cal-Royal - JE-40C - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock - Grade 2

Cal-Royal - JE-40C - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock - Grade 2

$518.00 USD
$672.73 USD $518.00 USD
Sale Sold out
Color

Cal-Royal - JE-40C - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock - Grade 2

The Cal-Royal JE-40C Digital Touch Screen / RFID Deadbolt Lock is a modern access control solution featuring a durable clutch locking mechanism for extended lock life. Designed for residential and commercial use, it supports touchscreen PIN access, RFID cards

Features:
  • Master code management
  • Supports up to 500 user codes per lock
  • Supports up to 500 RFID cards/keyfobs per lock
  • 2 one-time user codes
  • 4-6 digit code combination
  • Passage mode
  • Weather resistant design
  • 9V battery emergency power port
  • Anti-tamper lock-out protection
  • Lock-out mode
  • Clutch locking mechanism
  • Non-handed, reversible design
  • Standard proximity RFID card (13.56 MHz)
  • Optional RFID keyfob
  • Touchscreen interface to wake up or lock the door
  • 2-year manufacturer warranty
Specifications:
Applications For offices, apartments, condo units, residential, commercial, and public buildings
Door Ranges 1.38" to 1.75" standard
Deadbolt UL-Listed adjustable backset latch (2.75" or 2.38"), 1.00" throw; brass with hardened steel pin insert
Latch Faceplate Standard 2.25" x 1.00" faceplate, packed with 0.13" plastic filler for 1.13" door preparations
Strikes 2.75" x 1.13" square corner deadbolt strike, packed with (2 pcs) 3.00" screws and wood frame reinforcer
ANSI Standards Meets ANSI/BHMA A156.5, Grade 2 requirements
Clutch Clutch technology allows turning of thumb turn without retracting latch, reducing stress on the spindle and extending lock life
Proximity RFID Card (Standard) 2 pcs included; compatible with MIFARE infrastructures; operates at 13.56 MHz (ISO 14443A); inductive distance up to 1.19"
RFID Keyfob (Optional) Operates at 13.56 MHz (ISO 14443A); inductive distance up to 1.19"
Power Supply 4 AA 1.5V alkaline batteries (included)
Weather Resistant Operating temperature range -30°F to 150°F (-35°C to 66°C) at 85% relative humidity
Touch Screen Human-touch responsive screen for access and programming; reverts to sleep mode after operation


Includes:
  • UL-Listed adjustable deadbolt
  • 2.25" x 1.00" faceplate with plastic filler
  • 2 RFID cards
  • 4 batteries
  • 2.75" x 1.13" square corner strike
  • (2) 3.00" screws with wood frame reinforcer
