Cal-Royal

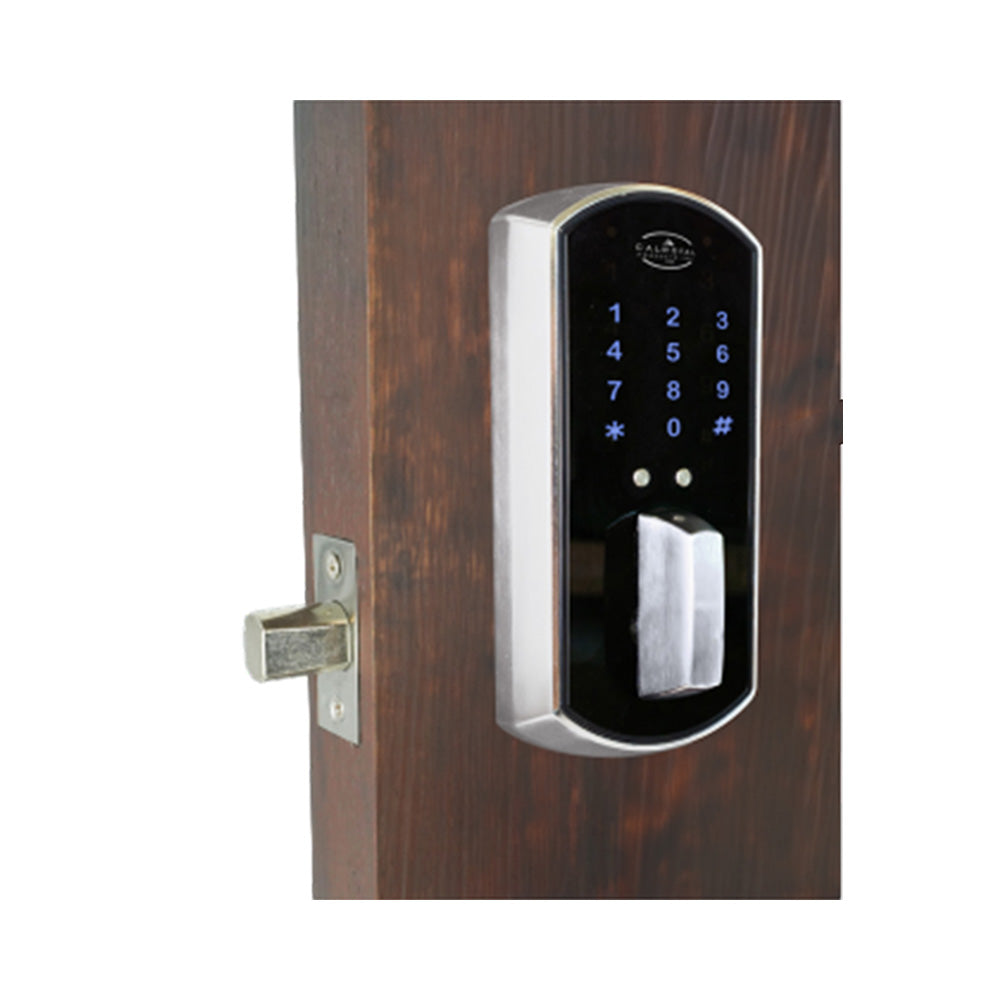

Cal-Royal - JE-40C-SCM - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock with Smart Connect Module - Grade 2

Cal-Royal - JE-40C-SCM - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock with Smart Connect Module - Grade 2

$574.00 USD
$745.45 USD $574.00 USD
Sale Sold out
Color

Cal-Royal - JE-40C-SCM - Smart Digital Touch Screen, RFID and Smart Connect Clutch Deadbolt Lock with Smart Connect Module - Grade 2

The Cal-Royal JE-40C-SCM Digital Touch Screen / RFID / Smart Connect Deadbolt Lock with Clutch Locking Mechanism is a secure and reliable keyless entry solution designed for modern residential and light commercial applications. It supports touchscreen PIN codes, RFID cards, and smartphone connectivity, offering flexible access control and easy user management.

Features:
  • Mobile app for Android & Apple (Download the ExperiEnSmart App)
  • Stores up to 1,000 audit trail entries
  • Master code management
  • Supports up to 500 user codes per lock
  • Supports up to 500 RFID cards/keyfobs per lock
  • 2 one-time user codes
  • 4-6 digit code combination
  • Passage mode
  • Weather resistant design
  • 9V battery emergency power port
  • Anti-tamper lock-out protection
  • Lock-out mode
  • Clutch locking mechanism
  • Non-handed, reversible design
  • Standard proximity RFID card (13.56 MHz)
  • Optional RFID keyfob
  • Optional Smart Connect Module
  • Touchscreen interface to wake up or lock the door
  • 2-year manufacturer warranty
Specifications:
Applications For offices, apartments, condo units, residential, commercial, and public buildings
Door Ranges 1.38" to 1.75" standard
Deadbolt UL-Listed adjustable backset latch (2.75" or 2.38"), 1.00" throw; brass with hardened steel pin insert
Latch Faceplate Standard 2.25" x 1.00" faceplate, packed with 0.13" plastic filler for 1.13" door preparations
Strikes 2.75" x 1.13" square corner deadbolt strike, packed with (2 pcs) 3.00" screws and wood frame reinforcer
ANSI Standards Meets ANSI/BHMA A156.5, Grade 2 requirements
Clutch Clutch technology allows turning of thumb turn without retracting latch, reducing stress on the spindle and extending lock life
Proximity RFID Card (Standard) 2 pcs included; compatible with MIFARE infrastructures; operates at 13.56 MHz (ISO 14443A); inductive distance up to 1.19"
RFID Keyfob (Optional) Operates at 13.56 MHz (ISO 14443A); inductive distance up to 1.19"
Power Supply 4 AA 1.5V alkaline batteries (included)
Weather Resistant Operating temperature range -30°F to 150°F (-35°C to 66°C) at 85% relative humidity
Touch Screen Human-touch responsive screen for access and programming; reverts to sleep mode after operation
Smartphone Connectivity (Optional) Managed via ExperienSmart app for Apple & Android (Smart Connect Module required)

Includes:
  • UL-Listed adjustable deadbolt
  • 2.25" x 1.00" faceplate with plastic filler
  • 2 RFID cards
  • 4 batteries
  • 2.75" x 1.13" square corner strike
  • (2) 3.00" screws with wood frame reinforcer
  • Smart Connect Module
Downloads:
