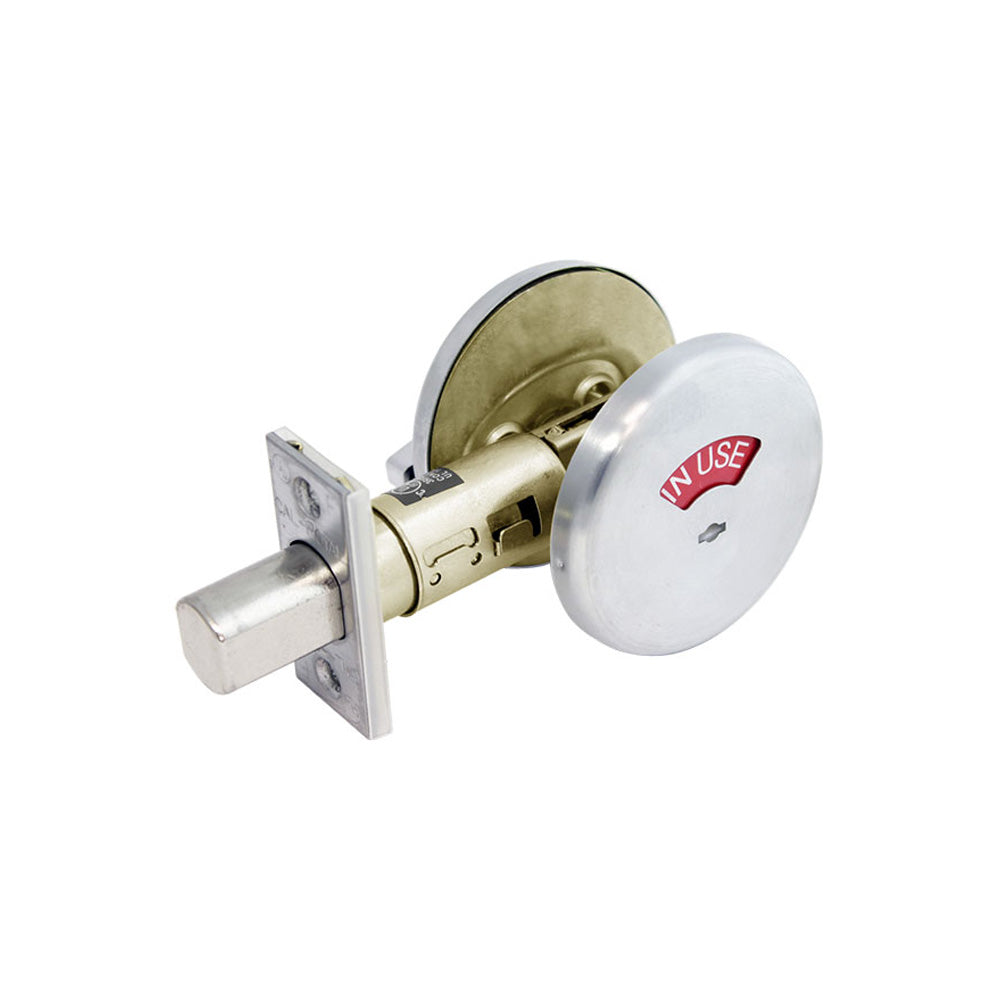

Cal-Royal - IND90-G2 - Commercial Indicator Deadbolts - Grade 2 - US26D - Satin Chromium Plated (626)

Cal-Royal - IND90-G2 - Commercial Indicator Deadbolts - Grade 2 - US26D - Satin Chromium Plated (626)

$41.05 USD
$53.36 USD $41.05 USD
Sale Sold out

Cal-Royal - IND90-G2 - Commercial Indicator Deadbolts - Grade 2 - US26D - Satin Chromium Plated (626)

Features:
  • Conforms with ANSI A156.36, GRADE 2 Standards.
  • ADA (American Disability Act Compliant) Ergonomic Thumbturn.
  • Red (IN-USE) and Green (VACANT) Indicator.
Packaging Includes:
  • UL Listed Adjustable 2-3/4" and 2-3/8" backset.
  • 1-1/8" x 2-3/4" Deadbolt Security Strike with 2 pcs. # 10 x 3" wood screws.
  • 1-1/8" x 2-3/4" square corner strike.
  • 4 pcs. # 6 x 3/4" combination wood / machine screws.
  • UL Latch: Backset latch size 1" x 2-1/4" faceplate. Latch front adapter is provided to convert 1" face plate for 1-1/8" wide door preparations.
  • Emergency Key included to unlock the deadbolt from the outside.
Specifications:
Trim Wrought Brass or Stainless Steel
Door Ranges Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness
Backset Adjustable UL Listed 3-Hour Fire Rated 2-3/8" or 2-3/4"
Deadbolt Faceplate Standard 2-1/4" x 1" packed with plastic filler to convert 1" faceplate to 1-1/8" wide door preparations
Bore Diameter 1" for latch, 1-1/2" or 2-1/8" for lock housing
Strike 1-1/8" x 2-3/4" Square Corner
Finish US26D - Satin Chromium Plated (626)
