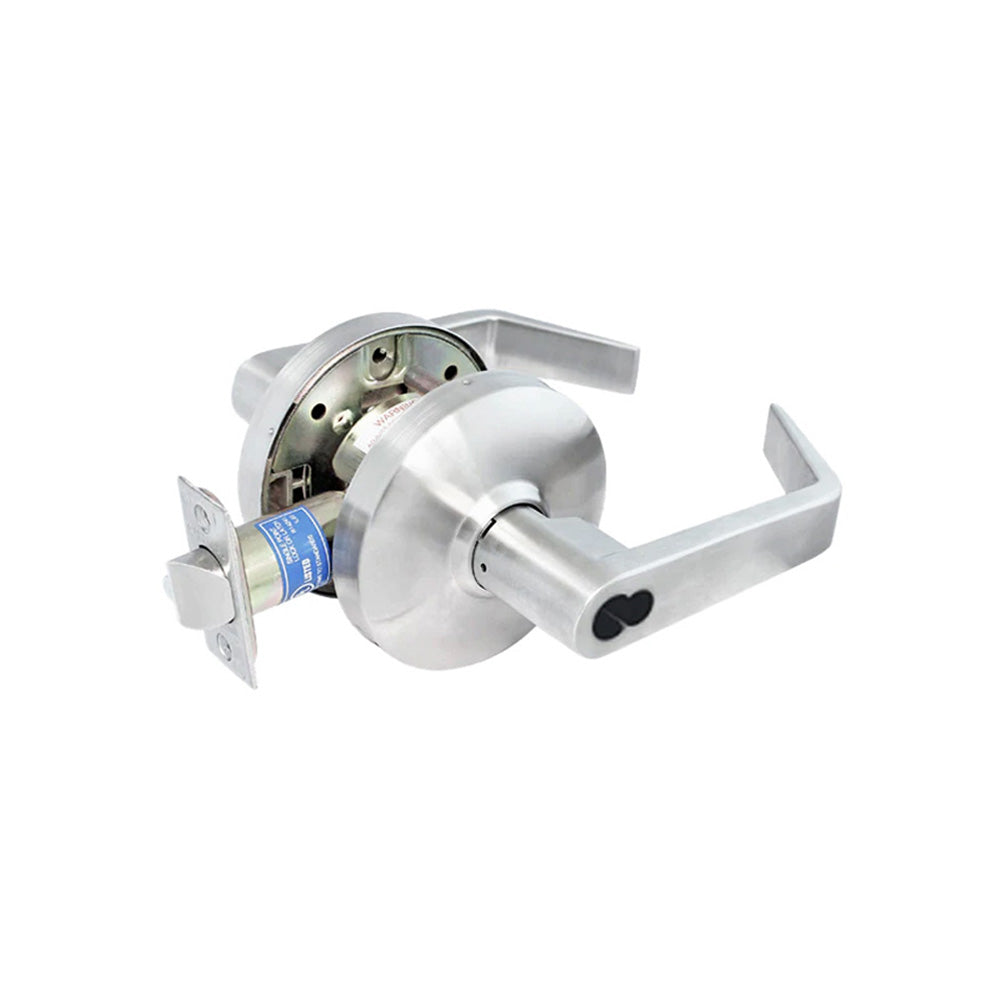

Cal-Royal - ICGN02 - SFIC Heavy Duty Cylindrical Lever Set with Store Lock Non-Clutch - Grade 1 - US26D - Satin Chromium Plated (626)
Cal-Royal GENESYS Series Heavy Duty Cylindrical Leverset, Non-Clutch, Double Cylinder. For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
Features:
- ANSI standard A156.2, GRADE 1, UL Listed.
- BHMA Certified, Lifetime Warranty.
- Free turning handle in the locked position, without retracting the latch to help prevent the breaking of handle.
- Double Cylinder Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.
Specifications:
| Function | F91 - Store Lock |
| Backset | 2-3/8" or 2-3/4" |
| Door Thickness | 1-3/8" - 1-3/4" |
| Strike | Round Corner Deadbolt Strike: 1" x 2-1/4" |
| Latch Faceplate | Standard 2-1/4" x 1-1/8" for 2-3/4" backset |
| Lever | GN Design Lever |
| Certification | ANSI Standard A156.2 |
| Finish | US26D - Satin Chromium Plated (626) |
| Bore | 1" Bore Diameter for Latch, 2-1/8" Diameter for Lock Housing |
| SFIC | Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW |
