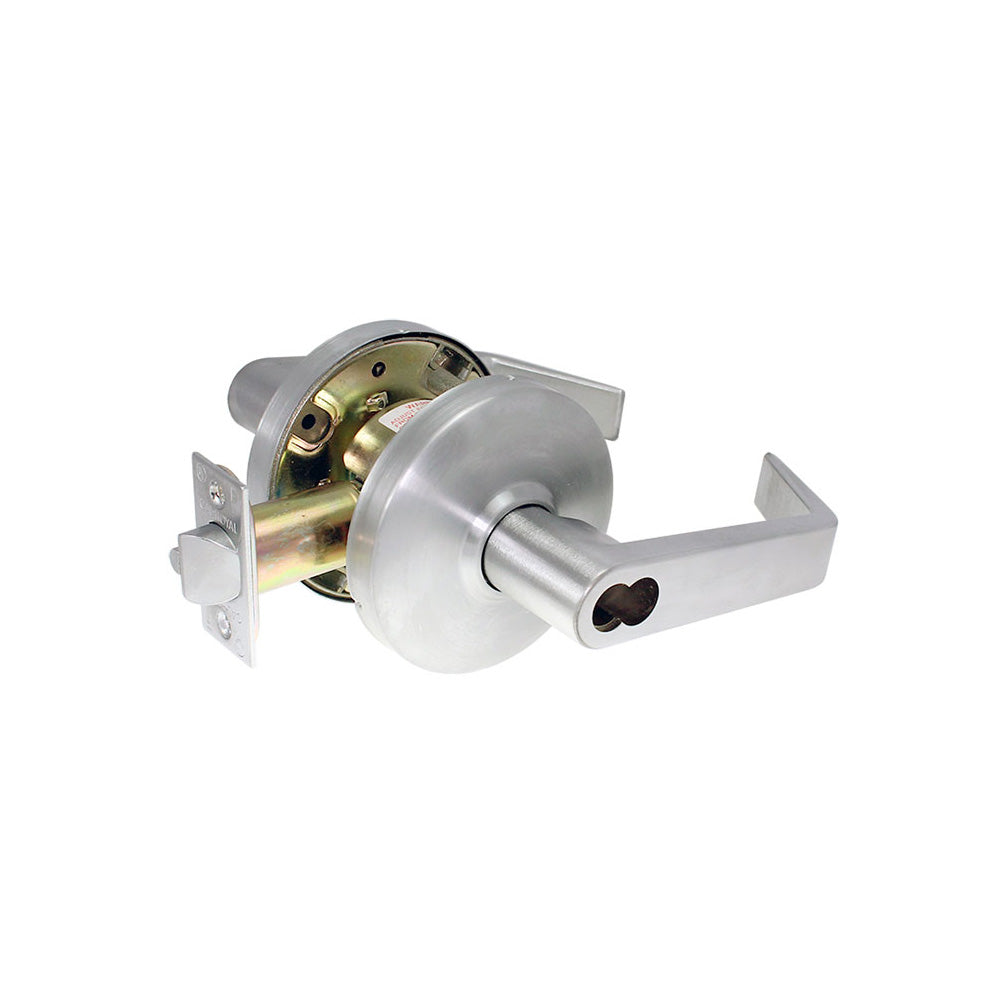

Cal-Royal - ICCGN00 - Entrance/Office Lever Lock with Interchangeable Small Format Core Prep - Grade 1 - US26D - Satin Chromium Plated (626)
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings
Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed. ANSI Function F109 - Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
Features:
- Heavy-Duty, BHMA/ANSI Grade 1 certified.
- Small format interchangeable core prep (core sold separately).
- ADA compliant, 3-hour fire-rated.
- Clutch mechanism, fixed thru-bolt installation.
Specifications:
| Function | Entrance / Office Lock |
| Handing | Non-Handed |
| Backset | 2-3/4" |
| Door Thickness | 1-3/8" - 1-3/4" |
| Strike | 1-1/4" x 4-7/8" |
| Latch Faceplate | Standard 2-1/4" x 1-1/8" for 2-3/4" backset |
| Keyway | KW |
| Certification | ANSI/BHMA A156 2 Series 4000 Grade 1 |
| Finish | US26D - Satin Chromium Plated (626) |
| Cylinder | Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW |
