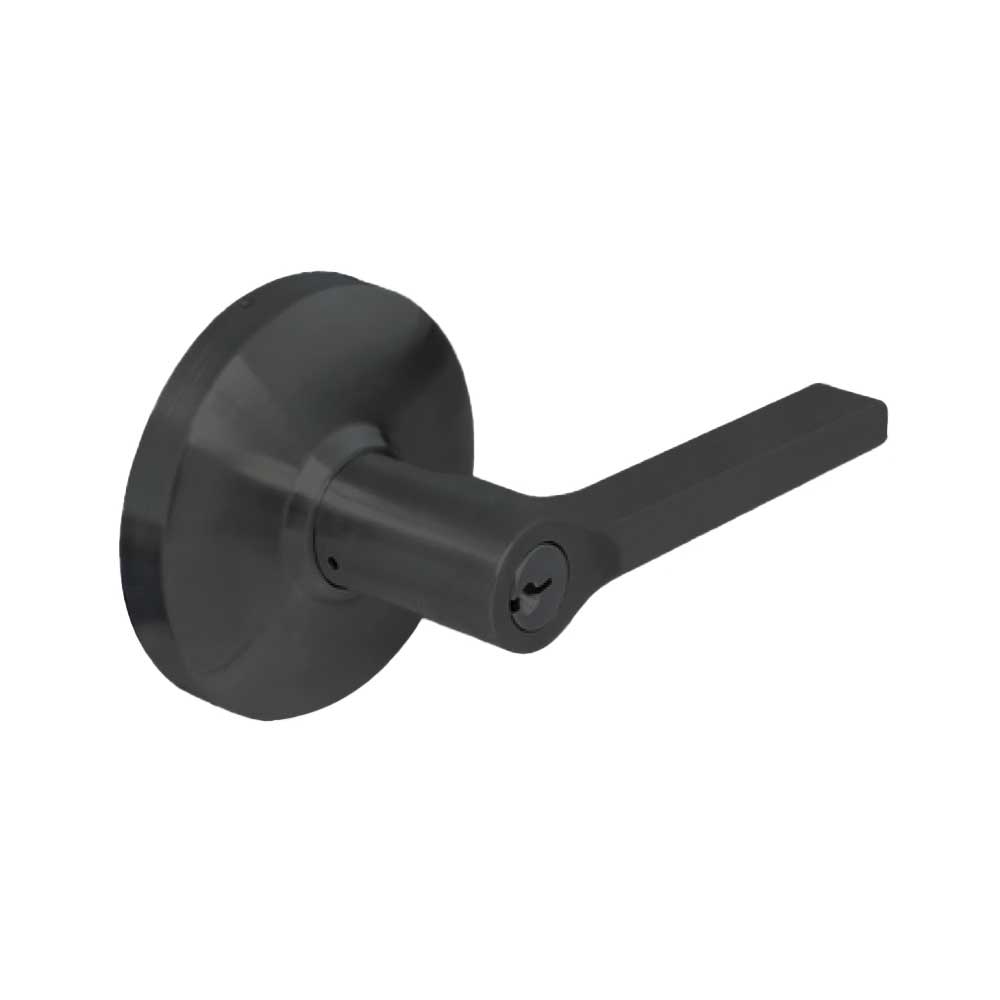

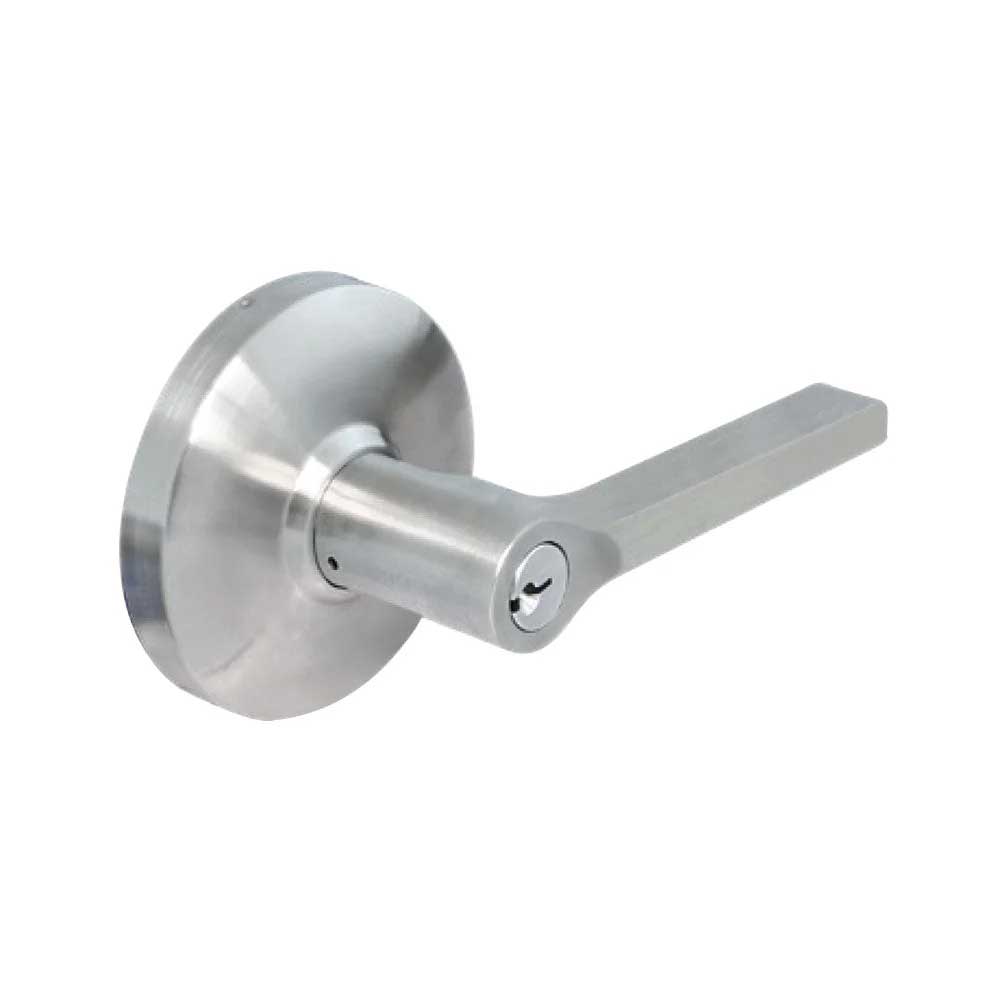

Cal-Royal - ICC2-LON05 - Cylindrical Clutch Mechanism Storeroom Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON, and ARROW - Grade 2

Cal-Royal - ICC2-LON05 - Cylindrical Clutch Mechanism Storeroom Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON, and ARROW - Grade 2

$185.75 USD
$247.67 USD $185.75 USD
Sale Sold out
Color
Lever Style

Cal-Royal - ICC2-LON05 - Cylindrical Clutch Mechanism Storeroom Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON, and ARROW - Grade 2

Storeroom Lock - Features a deadlocking latch bolt operated by a key in the outside lever or by turning the inside lever. The outside lever is always fixed, while the inside lever allows free exit, making this lock ideal for secured areas that require controlled access. The lock includes an SFIC interchangeable core (IC) for easy re-keying and is compatible with BEST, FALCON, and ARROW keyways, providing flexibility for commercial and educational applications.

Features

  • ANSI F86 Grade 2 Storeroom Lock
  • Deadlocking latch
  • Outside lever always locked; key required for entry
  • Inside lever always free for exit
  • Designed for secured areas
  • Full-length 4-3/4" lever handle with 3/8" return
  • Non-handed levers for left- or right-hand doors
  • Concealed mounting screws for a clean appearance
  • Key-removable outside lever for quick and easy re-keying
  • Durable construction designed for commercial applications
  • Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards

Specifications

Applications Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Product Type Storeroom Lock
ANSI Grade Grade 2
ANSI Standard BHMA/ANSI A156.2 Series 4000 (FF-H 106C)
Locking Function Deadlocking latch
Core Type 6- or 7-pin SFIC interchangeable core (IC)
Compatible Keyways BEST, FALCON, ARROW
Keying Combinated or uncombinated
Factory Keying Control key and master key options
Clutch Yes (Free-turning handle)
Door Thickness 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional)
Lever Length 4-3/4"
Lever Return 3/8"
Rose Diameter 3-3/8"
Bore Diameter 2-1/8"
Backset 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional)
Latch Faceplate 2-1/4" x 1-1/8"
Latch Throw 1/2" (Standard brass latch)
Strike Plate ASA 1-1/4" x 4-7/8" (Standard)
Cylinder 6-pin solid brass
Keyway "C" keyway (Standard)
Housing Material Cold-rolled steel with zinc dichromate finish
Retractor Precision cast steel
Handing Non-handed
Mounting Concealed screws; optional thru-bolted trim
Fire Door Options Anti-friction deadlatch available for paired fire doors
Finish US26D, US1, US10BE, US10, US3, US26, US4
