Cal-Royal

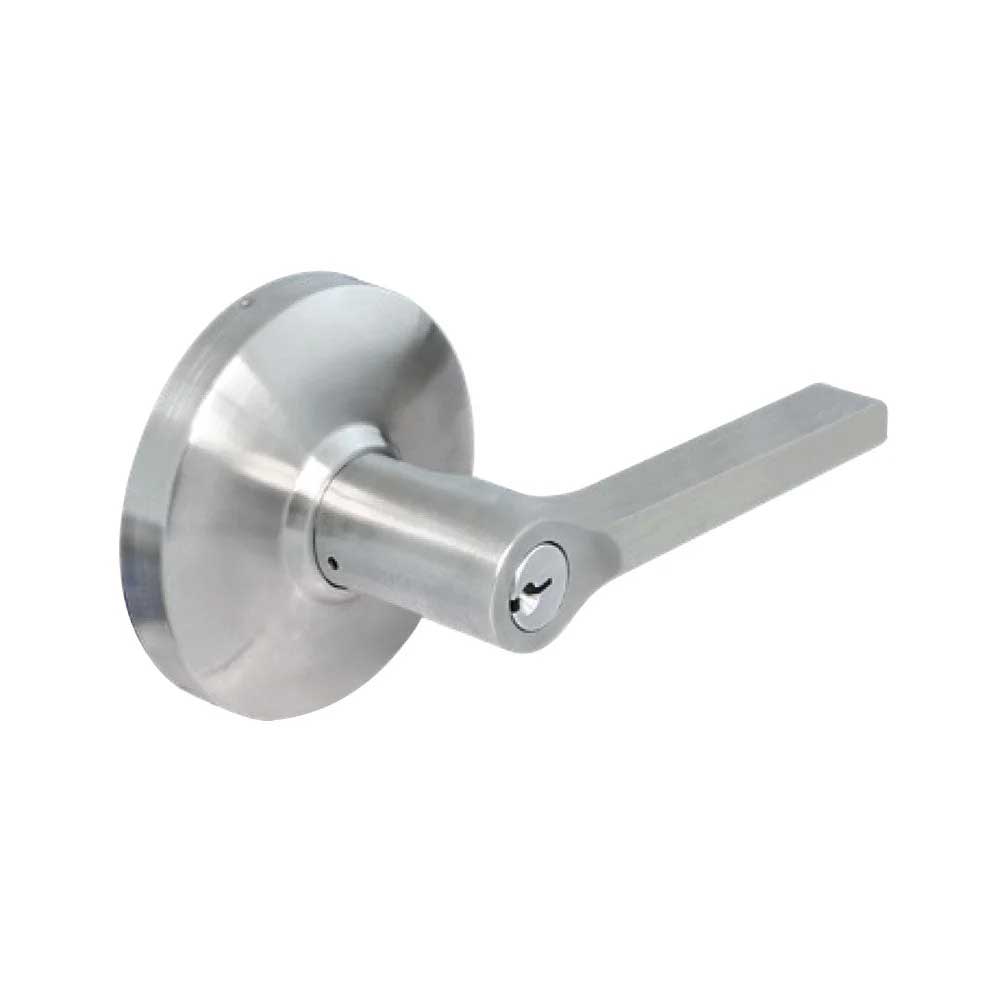

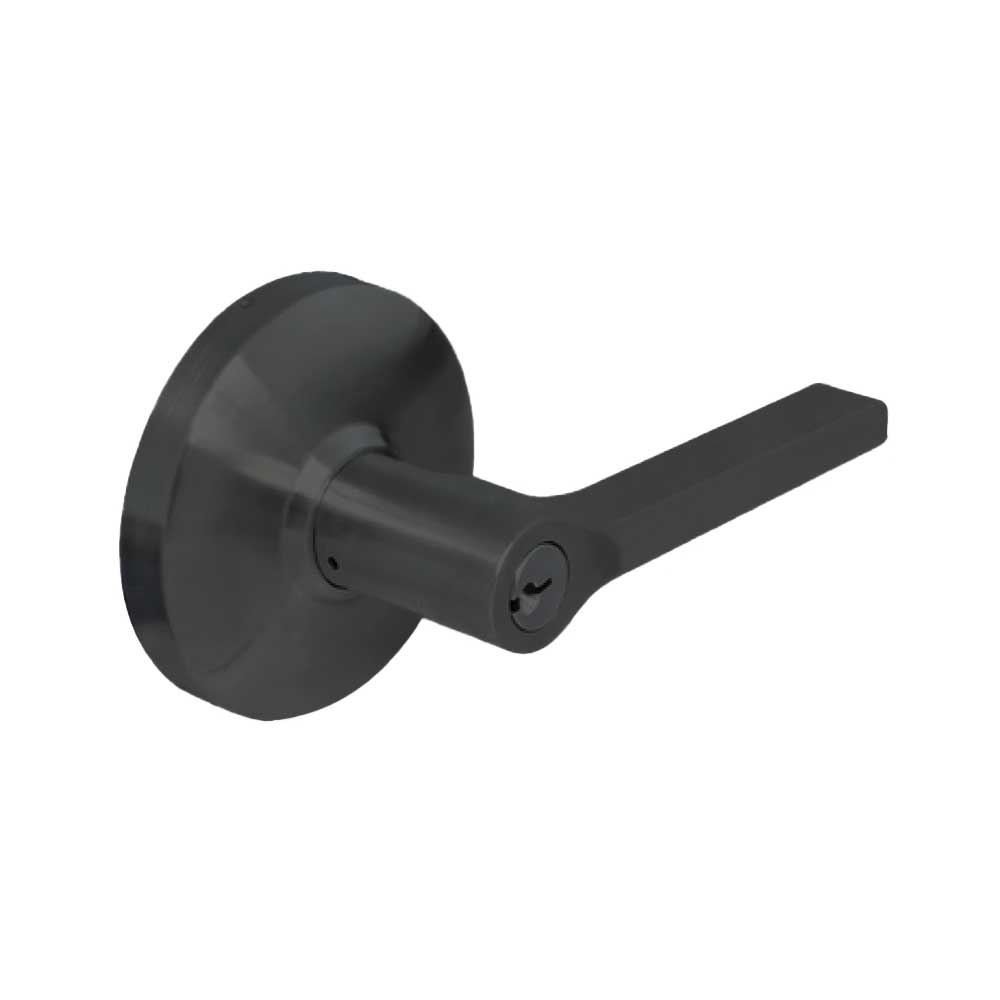

Cal-Royal - ICC2-LON03 - Cylindrical Clutch Mechanism Classroom Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON, and ARROW - Grade 2

Cal-Royal - ICC2-LON03 - Cylindrical Clutch Mechanism Classroom Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON, and ARROW - Grade 2

$185.75 USD
$247.67 USD $185.75 USD
Sale Sold out
Color
Lever Style

Cal-Royal - ICC2-LON03 - Cylindrical Clutch Mechanism Classroom Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON, and ARROW - Grade 2

Classroom Lock - Deadlocking latch bolt operated by lever from either side, except when the outside lever is locked from the outside by key. When locked, the latch bolt is operated by turning the inside lever only. Inside lever always free for exit. The lock features an SFIC interchangeable core (IC) for easy re-keying and compatibility with BEST, FALCON, and ARROW keyways, providing flexibility for commercial and educational applications.

Features

  • ANSI F84 Grade 2 Classroom Lock
  • Deadlocking latch
  • Outside lever locked/unlocked by key
  • Inside lever always free for exit
  • When locked, latch operated by inside lever only
  • Full-length 4-3/4" lever handle with 3/8" return
  • Non-handed levers for left- or right-hand doors
  • Concealed mounting screws for a clean appearance
  • Key-removable outside lever for quick and easy re-keying
  • Durable construction designed for commercial applications
  • Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards

Specifications

Applications Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Product Type Classroom Lock
ANSI Grade Grade 2
ANSI Standard BHMA/ANSI A156.2 Series 4000 (FF-H 106C)
Locking Function Deadlocking latch
Core Type 6- or 7-pin SFIC interchangeable core (IC)
Compatible Keyways BEST, FALCON, ARROW
Keying Combinated or uncombinated
Factory Keying Control key and master key options
Clutch Yes (Free-turning handle)
Door Thickness 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional)
Lever Length 4-3/4"
Lever Return 3/8"
Rose Diameter 3-3/8"
Bore Diameter 2-1/8"
Backset 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional)
Latch Faceplate 2-1/4" x 1-1/8"
Latch Throw 1/2" (Standard brass latch)
Strike Plate ASA 1-1/4" x 4-7/8" (Standard)
Housing Material Cold-rolled steel with zinc dichromate finish
Retractor Precision cast steel
Handing Non-handed
Mounting Concealed screws; optional thru-bolted trim
Fire Door Options Anti-friction deadlatch available for paired fire doors
Finish US26D, US1, US10BE, US10, US3, US26, US4
