Cal-Royal

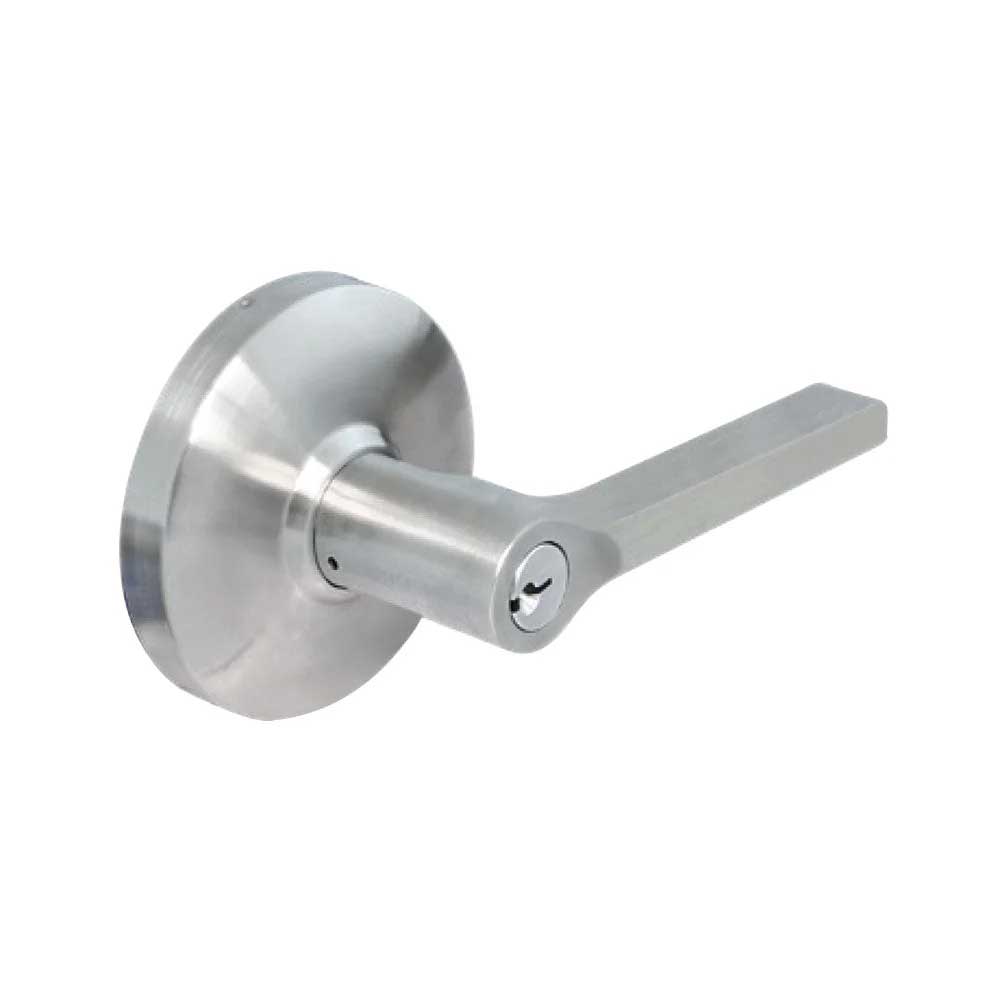

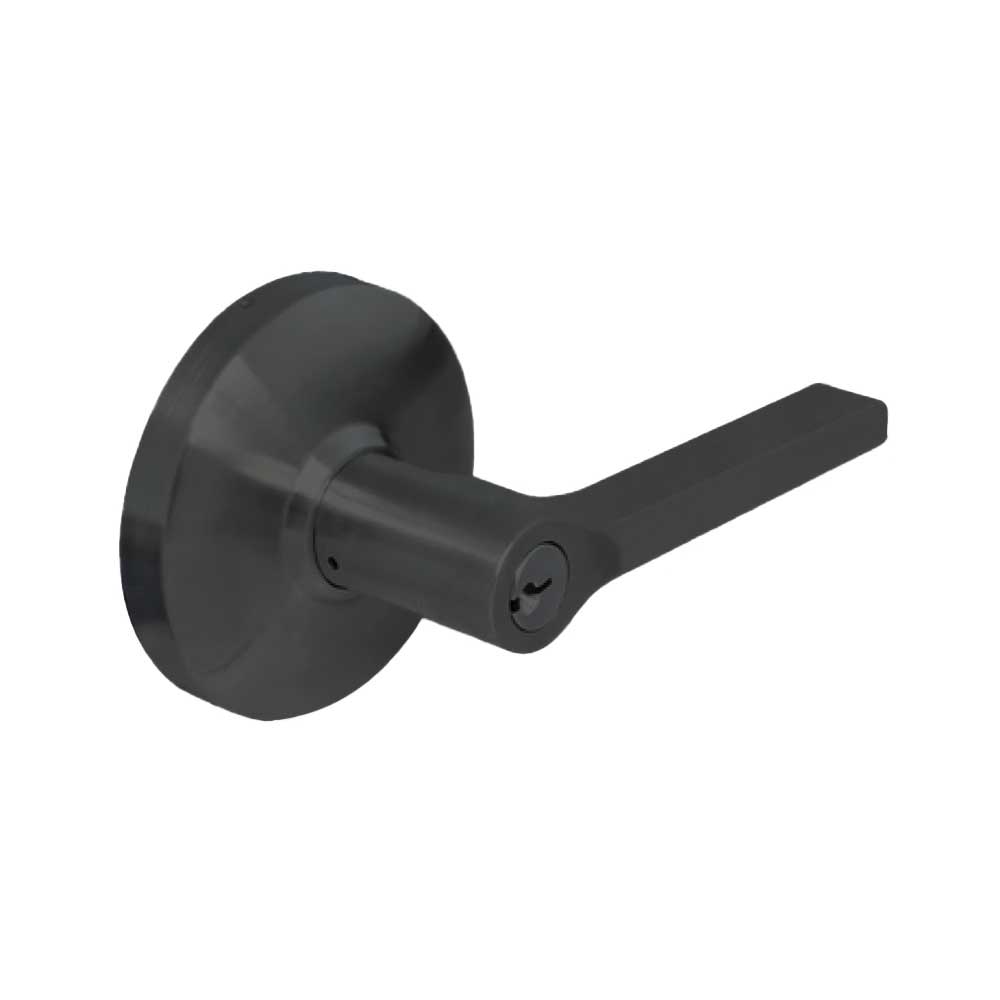

Cal-Royal - ICC2-LON00 - Cylindrical Clutch Mechanism Entrance Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON and ARROW - Grade 2

Cal-Royal - ICC2-LON00 - Cylindrical Clutch Mechanism Entrance Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON and ARROW - Grade 2

$185.75 USD
$247.67 USD $185.75 USD
Sale Sold out
Color
Lever Style

Cal-Royal - ICC2-LON00 - Cylindrical Clutch Mechanism Entrance Tuscany Series Lever Lock - SFIC Interchangeable Core - IC Keyway for BEST, FALCON and ARROW - Grade 2

Entrance / Office Lock - Features a turn/push button locking mechanism. Pushing and turning the button locks the outside lever, which requires a key to unlock. Alternatively, pushing the button locks the outside lever until it is manually unlocked with a key or by turning the inside lever, which always allows free egress. The lock includes an SFIC interchangeable core (IC) for easy re-keying and is compatible with BEST, FALCON, and ARROW keyways, providing flexibility for commercial and educational applications.

Features:

  • ANSI F109 Grade 2 Entrance Lock
  • Turn / Push Button locking mechanism
  • Clutch function with free-turning handle to deter forced handle breakage
  • Outside lever locks and unlocks using a key
  • Inside lever unlocks the door when turned
  • Full-length 4-3/4" lever handle with 3/8" return
  • Non-handed levers for left- or right-hand doors
  • Concealed mounting screws for a clean appearance
  • Key-removable outside lever for quick and easy re-keying
  • Durable construction designed for commercial applications
  • Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards

Specifications:

Applications Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Product Type Entrance Lock
ANSI Grade Grade 2
ANSI Standard BHMA/ANSI A156.2 Series 4000 (FF-H 106C)
Locking Function Turn / Push Button
Core Type 6- or 7-pin SFIC interchangeable core
Compatible Keyways BEST, FALCON, ARROW
Keying Combinated or uncombinated
Factory Keying Control key and master key options
Clutch Yes (Free-turning handle)
Door Thickness 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional)
Lever Length 4-3/4"
Lever Return 3/8"
Rose Diameter 3-3/8"
Bore Diameter 2-1/8"
Backset 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional)
Latch Faceplate 2-1/4" x 1-1/8"
Latch Throw 1/2" (Standard brass latch)
Strike Plate ASA 1-1/4" x 4-7/8" (Standard)
Housing Material Cold-rolled steel with zinc dichromate finish
Retractor Precision cast steel
Handing Non-handed
Mounting Concealed screws; optional thru-bolted trim
Fire Door Options Anti-friction deadlatch available for paired fire doors
Finish US26D, US1, US10BE, US10, US3, US26, US4
