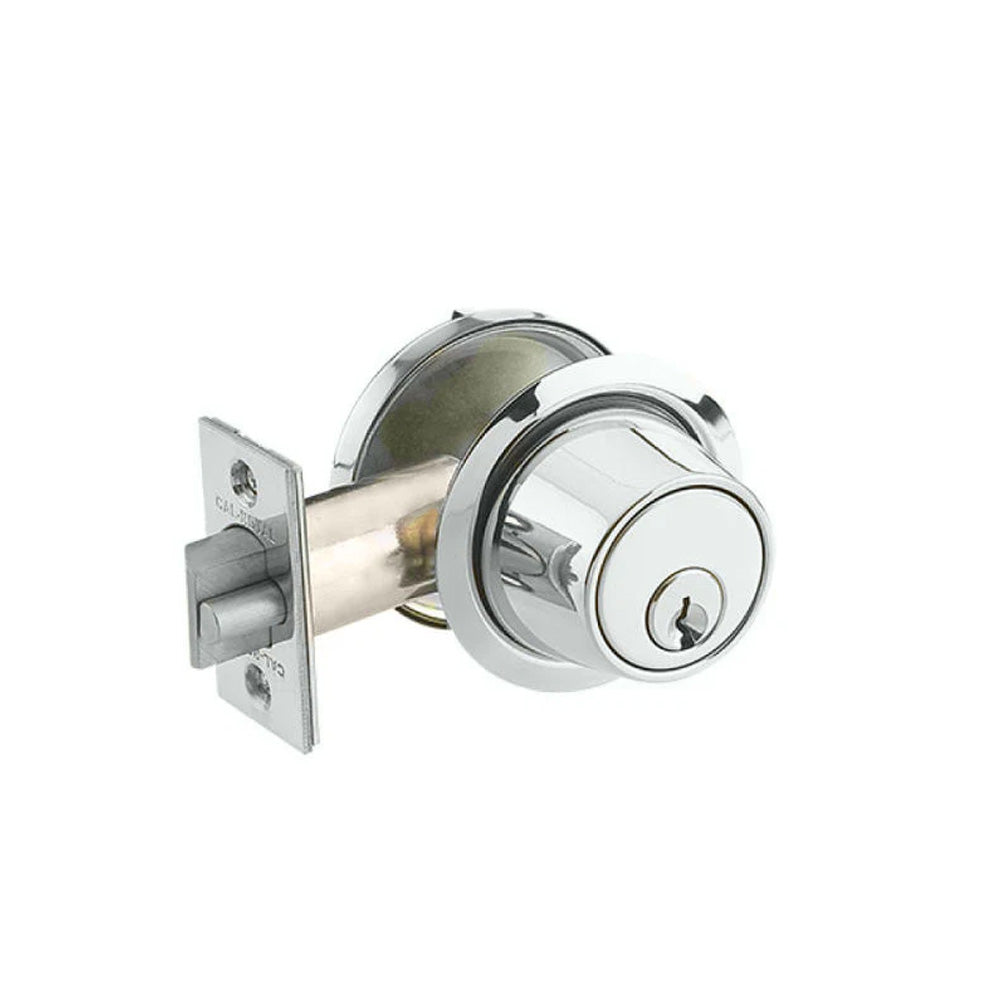

Cal-Royal - GL160 - Standard Duty Single Cylinder Deadbolt Gate Latch - Grade 2 - US26D - Satin Chromium Plated (626)
Features:
- Solid brass 6 pin "C" keyway cylinder, optional other keyways.
- ADA (American Disability Act) Ergonomic Thumbturn.
- Conforms with ANSI A 156.5 Series 4000, Standard Duty GRADE 2.
- Tapered cylinder guard and metal insert, turns free with any removal attempt.
- Adjustable latch bolt.
Specifications:
| Function | Dead locking latch bolt retracted by key from outside and thumb turn on inside. Otherwise always locked. |
| Cylinder | Standard 6-pin solid brass "C" keyway |
| Material | Wrought Brass or Stainless Steel |
| Strike | 1-1/8" x 2-3/4" square corner |
| Bore Diameter | 1" for latch, 1-1/2" or 2-1/8" for lock housing |
| Handing | Non-Handed for Left or Right hand doors |
| Door Thickness | 1-3/8" (35 mm) - 1-3/4" (44.5 mm) |
| Backset | 2-3/8" (60 mm) |
| Finish | US26D - Satin Chromium Plated (626) |
| Deadbolt Faceplate | Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations |
