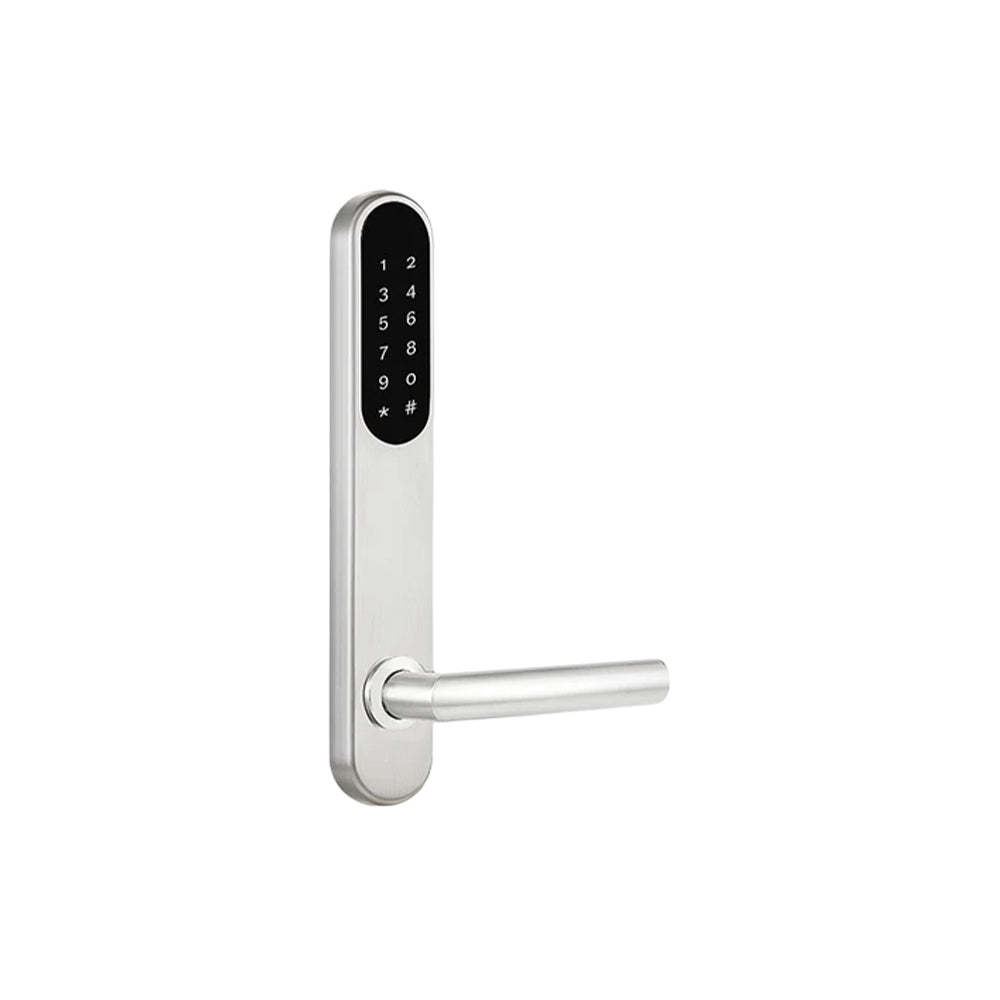

Cal-Royal - EXCR929M - Smart Digital Standard Exit Device Trim with Clutch Mechanism - No Cylinder Override - Grade 2

Cal-Royal - EXCR929M - Smart Digital Standard Exit Device Trim with Clutch Mechanism - No Cylinder Override - Grade 2

$645.00 USD
$837.66 USD $645.00 USD
Sale Sold out
Color
Lever Style

Cal-Royal - EXCR929M - Smart Digital Standard Exit Device Trim with Clutch Mechanism - No Cylinder Override - Grade 2

The Cal-Royal EXCR929M Smart Digital Exit Device Trim combines advanced security with modern convenience. Designed for residential and commercial doors, it features a clutch mechanism for durability and no cylinder override for enhanced protection. Ideal for smart home and commercial applications, this digital trim provides reliable, easy-to-use access control while maintaining a sleek, professional appearance.

Features:
  • Apple and Android compatible (iOS 13+ / Android 5.0+)
  • Can be used as stand-alone or integrated access control system
  • Close proximity smartphone connectivity to lock & unlock
  • Wi-Fi lock and unlock capability (with optional gateway)
  • Standard proximity RFID card (13.56 MHz)
  • Optional construction engineering card
  • Master code / passcode management
  • Fingerprint feature (optional, factory lead time required)
  • Digital touchscreen interface
  • TTLOCK system integration
  • Timestamped access log (audit trail)
  • Anti-peeping function for added security
  • Non-handed design
  • Scheduled passage mode
  • 1 Admin & 1 secondary admin level
  • Supports up to 250 passcode users per lock and 1,000 card users
  • 3-year manufacturer warranty
Specifications:
Applications For offices, apartments, hotel/motels, residential, and commercial
Door Thickness 1.5" (38mm) - 2.375" (60.3mm) standard
Backset 2.75" (70mm) standard
ANSI Standards Meets ANSI/BHMA A156.2 Series 4000, Grade 2 strength and operational requirements
Clutch Allows turning of lever without retracting latch, prolonging lock life by reducing stress on spindle and other parts
Low Battery Indicator Blinking sound signals low internal 4 AA alkaline batteries; battery percentage displayed in the app
Power Source 4 AA Alkaline batteries (Included in the box)
Emergency Power Back-up Type-C USB emergency cable
Specifications / Function Inside push bar, outside trim; latch bolt operated by lever from outside & pushbar from inside. Pre-programmed touch screen code, key, RFID card, or smartphone app overrides required to retract latch from outside
Weather Resistant Temperature range -4°F ~ 149°F (-20°C ~ +65°C). Optional outdoor lock cover and rubber seal included for enhanced weather protection
Compatibility Compatible with 2200, 5000, 6600, 7700, T5000, and 9800 Series RIM Type Exit Devices Only


Includes:
  • 2 RFID Cards
  • 4 AA Batteries and Battery Pack
Downloads:
View full details
