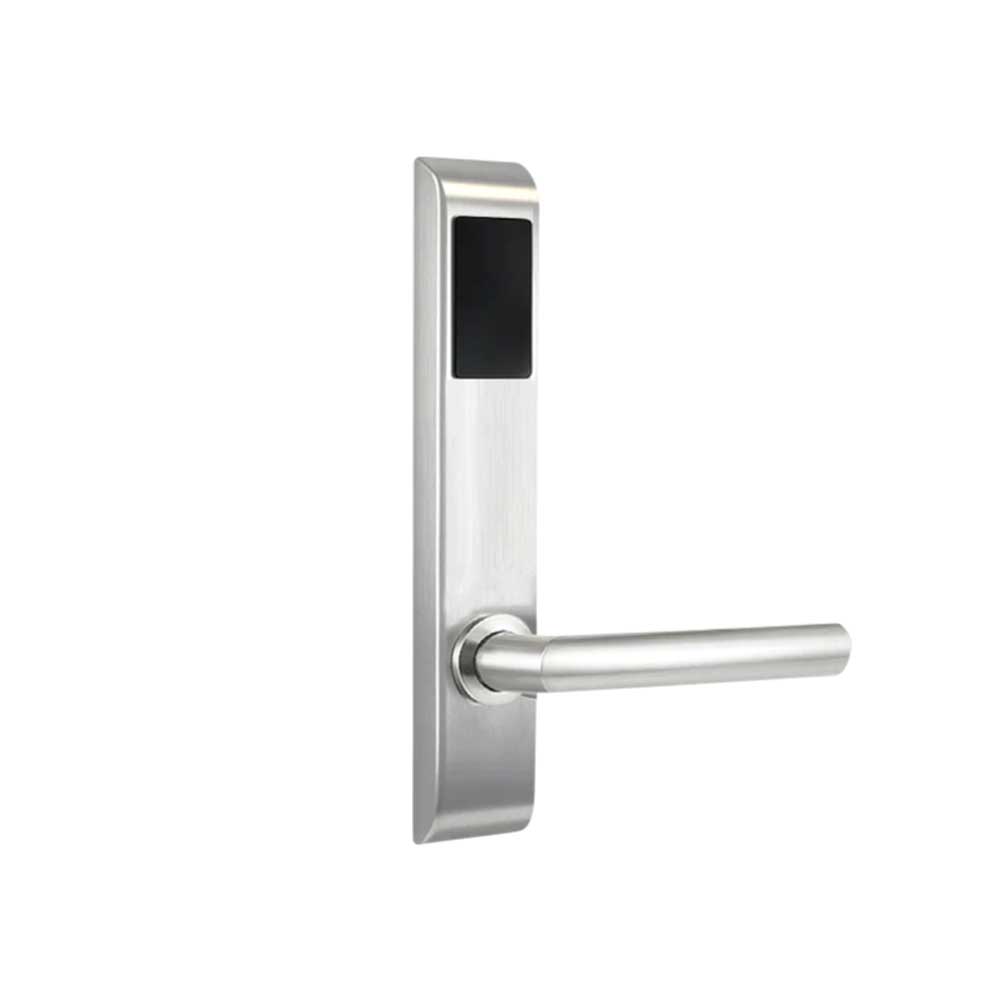

Cal-Royal - EXCR9298 - Smart Digital Mortise Lock Exit Device Trim - Clutch Mechanism - Grade 2
The Cal-Royal EXCR9298D is a Grade 2 smart digital exit device trim designed to integrate with mortise exit devices and panic bar systems. Combining smart access control capabilities with reliable commercial-grade hardware, this trim is ideal for offices, apartments, hotels/motels, and other medium-duty applications where secure, convenient entry is required.
Engineered for durability and everyday use, this trim leverages Cal-Royal's proven mechanical design while adding modern digital access functionality. The clutch mechanism enhances longevity by reducing wear from excessive force on the lever. Compatible with standard mortise panic devices (sold separately), it offers a seamless way to modernize access on egress doors without compromising safety or compliance.
Features:
- Apple and Android Compatible
- Can be managed or sync using the TUYO/TTLOCK app.
- Smart Phone connectivity; WIFI lock and unlock
- Keypad Anti-Tamper Lockout
- Key/Thumbturn Turning Detector
- Passage Mode
- Anti-peeping function
- Optional Auto Re-locking
- Restricted Access Right
- One-Time User PIN Code
- Low Battery Indicator
- Factory Default Passcode
- 3-Years Warranty
Specifications:
| Application | For offices, apartments, hotel/motels, residential, and commercial |
| Security Grade | ANSI/BHMA A156.2, Grade 2 |
| Door Thickness | 1-1/2" to 2-3/8" |
| Backset | 2-3/4" |
| Latch Faceplate | 8" x 1-1/8" square corner |
| Clutch | Clutch technology allows turning of lever without retractinglatch. Thus prolonging the life of the lock by reducing stress on the spindle and other parts. |
| Function | The latch bolt is operated by a lever on the outside and a push bar on the inside. To retract the latch when turning the lever, the outside requires the RFID card to be tapped. The Smart Phone App can override the RFID card or key fob for access. |
| Cylinder | 6-pin "C" cylinder |
| Power Supply | 4 x AAA alkaline batteries (included) |
| Emergency Power | Type-C USB emergency power cable |
| Weather Resistance | All models are weather resistant for temperature operating ranges of -4°F ~ 149°F (-20&°C ~ +65°C). For outdoor use of the Front Panel, the back panel should not be exposed to outdoor conditions and it is recommended to use an outdoor lock cover protector. Optional rubber seal for enhanced weather resistance in outdoor use. (Included in the box). |
| Compatibility | Compatible with Exit Devices 2200 Series, 6600 Series, 5000 Series, 7700 Series, and 9800 Series. RIM DEVICE ONLY. |
