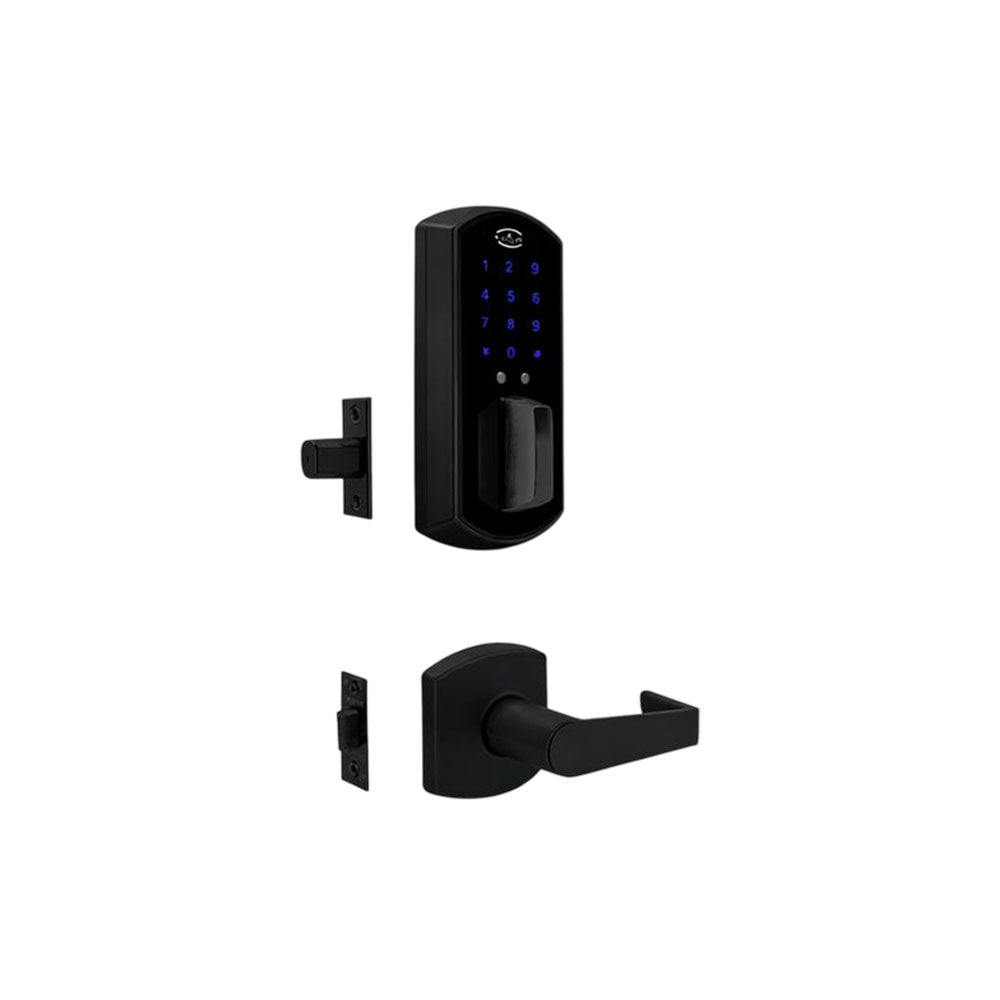

Cal-Royal - EJHIL Series Digital Single Locking Interconnected Touchscreen Door Lock - Pin Code / RFID - Grade 2

Cal-Royal - EJHIL Series Digital Single Locking Interconnected Touchscreen Door Lock - Pin Code / RFID - Grade 2

$715.00 USD
$928.57 USD $715.00 USD
Sale Sold out
Color
Lever Style

Cal-Royal - EJHIL Series Digital Single Locking Interconnected Touchscreen Door Lock - Pin Code / RFID - Grade 2

Features:
  • 4-6 Digit Code Combination
  • 500 Rfid Card/Keyfob Per Lock
  • Proximity Rfid Card (13.56 Mhz)
  • Rfid Keyfob (Optional)
  • Master Code
  • 500 User Codes Per Lock
  • 2 One Time User Codes
  • Passage Mode
  • Weather Resistant
  • 9v Battery Emergency Port
  • Anti-Tamper Lock-Out
  • Lock-Out Mode
  • Non-Handed, Reversible
  • Low Battery Indicator
  • Touch Screen To Wake Up Or Lock Door
  • 2 Year Warranty
Specifications:
Applications For offices, apartments, condo units, residential, commercial, and public buildings
Door Ranges 1 3/8" to 1 3/4" standard
Deadbolt 1" throw, UL-listed adjustable 2 3/4" or 2 3/8" brass with hardened steel pin.
Standard 2 1/4" x 1" face plate, packed with 1/8" plastic filler for 1 3/8" door preparations.
Latch Bolt 1/2" throw, UL-listed 2 3/4" standard backset
Latch Faceplate Standard 2 1/4" x 1" face plate, packed with 1/8" plastic filler for 1 3/8" door preparations
Strikes T-strike standard, 2 3/4" x 1 1/8" square corner deadbolt strike.
Packed with (2 pcs) 3" screws and wood frame reinforcer.
ANSI Standards Meets ANSI / BHMA A156.12 Series 5000, Grade 2 requirements
Proximity RFID Card (Standard) 2 pcs included. Compatible with existing MIFARE infrastructures.
Operates at 13.56 MHz in accordance with ISO 14443.
Inductive distance up to 1 3/16".
RFID Keyfob (Optional) Dual frequency enamel fobs (125 kHz + 13.56 MHz).
Size: 1 1/8" x 2". Comes with metal keyring.
Power Supply 4 AA 1.5V alkaline batteries (included)
Weather Resistant Operates in temperatures from -30°F to 150°F (-35°C to 66°C) at 85% relative humidity.
Touch Screen Responds to human touch for convenient entry or programming access.
Automatically returns to sleep mode after operation.

Includes:
  • UL-Listed Adjustable 2 3/4" or 2 3/8" deadbolt, 2 1/4" x 1" faceplate with plastic filler
  • UL-Listed 2 3/4" backset, 2 1/4" x 1" faceplate with plastic filler
  • 2 RFID Cards, 4 Batteries
  • T-Strike, 2 3/4" x 1 1/8" Deadbolt Strike
  • 3" screws with wood frame reinforcer
