Cal-Royal - ED-500 - Single Cylinder Deadbolt - Grade 3

Cal-Royal - ED-500 - Single Cylinder Deadbolt - Grade 3

Features:

• Kwikset keyway. Re-keyable for master and construction keying.
• Weiser and schlage "C" keyway available on special factory order only.
• ADA (American Disability Act) Ergonomic Thumbturn.
• Optional UL (ED500 – Single Cylinder Deadbolt).
• Reversible for left & right handed doors.
• Reversible for right and left handed doors.
• 2-3/8" or 2-3/4" adjustable backset, size 1" x 2-1/4" round corner standard Square corner also available. Drive in adjustable backset is also available.
• All metal body & cylinder construction.
• All exterior parts are brass.
• ANSI Standard A156.2 Grade 3.
• Easy installation.
• Full 1" throw deadbolt with hardened steel pin to prevent saw cutting.
• Fits 1-3/8" to 1-3/4" doors.
• 1" x 2-1/4" strike,round corner and full lip strike round corner standard. Square corner option also available. optional 1-1/4" x 3-5/8" security strike with 3" screws also available.
• For wood and metal doors.
• 5-Year Warranty, 25-Year Mechanical Warranty

Specifications:

Finish:

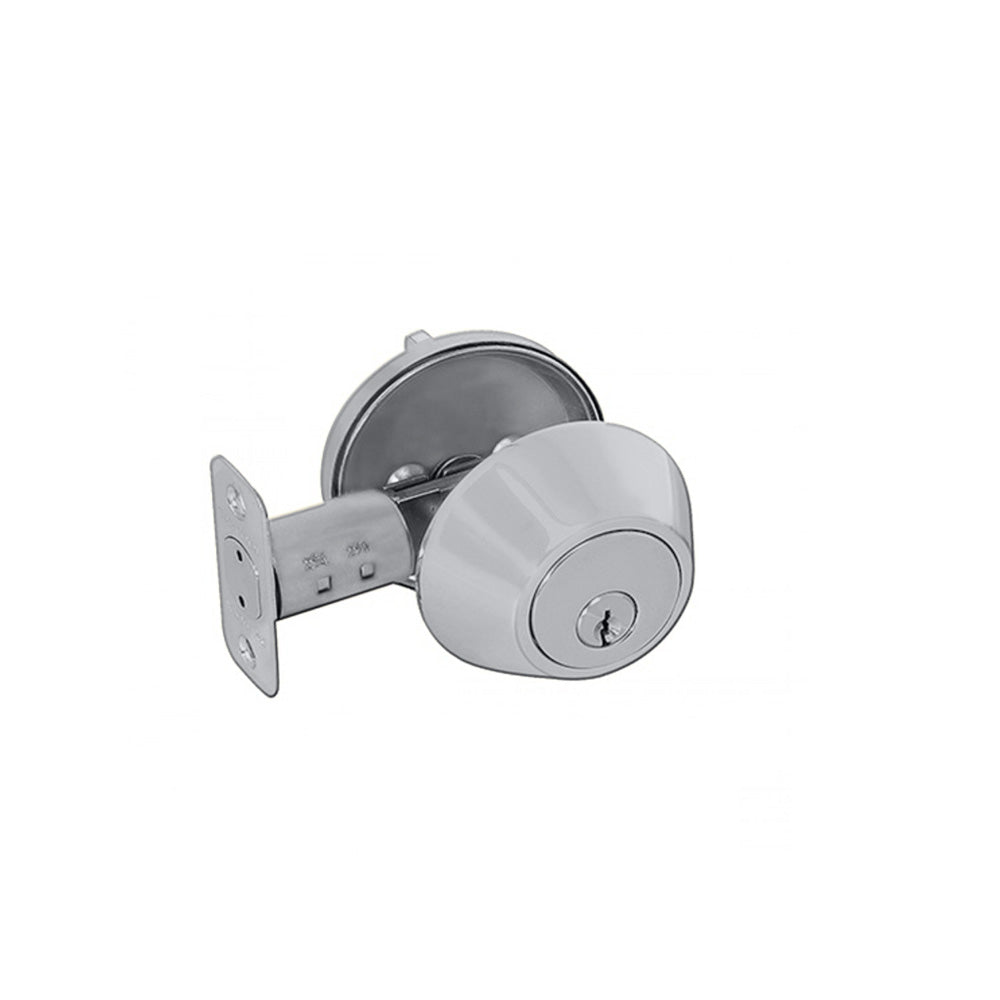

• US26D - Satin Chromium Plated (626)
• US3 - Bright Polished Brass (605)
• US5 - Clear Coated Blackened Satin Brass (609)

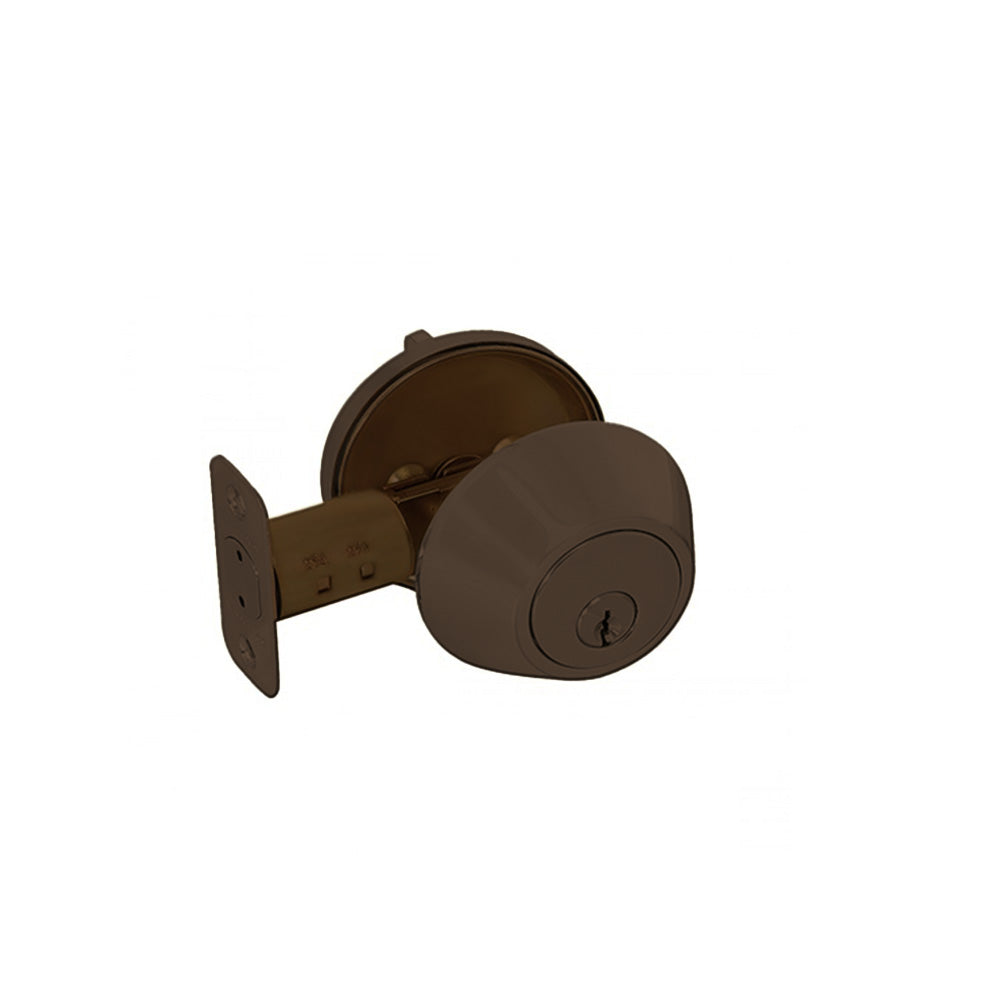

• US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
• US15 - Clear Coated Satin Nickel Plated (619)
• US26 - Bright Chromium Plated (625)

Download:

• Catalog
• Template
