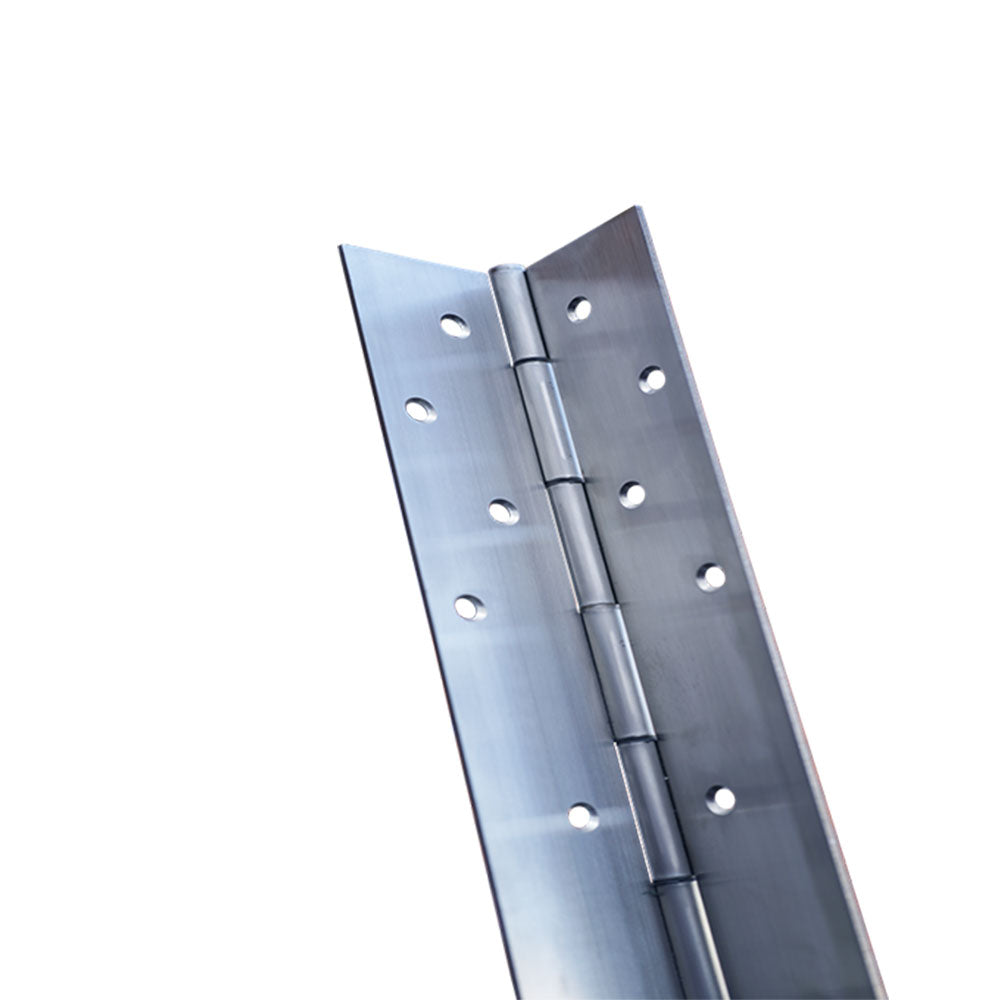

Cal-Royal - CTH-SS - Stainless Steel Continuous Hinges

Cal-Royal - CTH-SS - Stainless Steel Continuous Hinges

Features:

• UL Listed 3 Hour Fire-Rated (Metal) 90 min. wood composite.
• For heavy-duty doors, up to 300 lbs.
• Door Thickness: 1-3/4" maximum.
• Length: 83-1/8", 95-1/8", 119-1/8".
• Material: 14 Ga. (0.075") Type 304 Stainless Steel.
• Door Reinforcement:.
• Wood - none required up to 200 lbs
• Metal Doors - a 1/8" (3mm) thick reinforcement plate is recommended along the hinge edge for proper thread engagement of the adjustment studs.
• Dual 6/6 Nylon bearings between each knuckle.
• Packed with all wood and all machine screws
• Finishes: US32D
