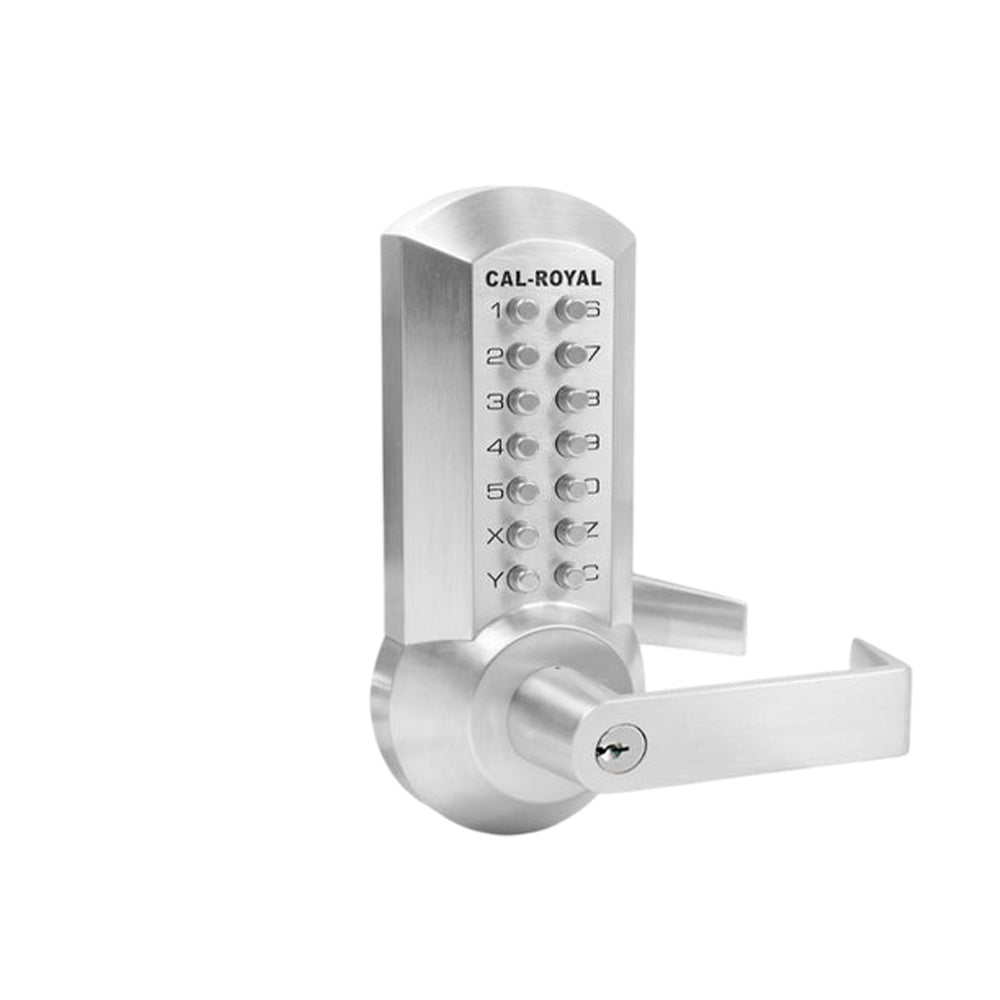

Cal-Royal - CRCODE204 - Mechanical Push Button Lock - Storeroom Function - Grade 2

Cal-Royal - CRCODE204 - Mechanical Push Button Lock - Storeroom Function - Grade 2

$462.71 USD
$600.92 USD $462.71 USD
Sale Sold out
Color

Cal-Royal - CRCODE204 - Mechanical Push Button Lock - Storeroom Function - Grade 2

The CRCODE204 is a Grade 2 mechanical stand-alone push button lock designed for secure keyless access control. Featuring a durable breakaway lever mechanism, weather-resistant construction, and easy code change functionality, it delivers reliable performance for commercial and institutional applications.

Features:
  • Meets ADA requirements specially designed for Barrier Free Application.Conforms with ANSI A156.2, Series 4000 GRADE 2.
  • Easy installation covers 161 prep (2-1/8" hole)
  • Supports 1 to 12 digit code combinations
  • Single code user operation
  • Built-in key override function
  • Easy on-the-door code change without removing the lock
  • Code-free passage mode option
  • Breakaway lever design for added protection
  • Clutch-free mechanism for reliable operation
  • Weather-resistant construction
  • Non-handed design for flexible installation
  • More than 8,000 non-sequential possible code combinations
Specifications:
General Full length 5-1/2" lever handle with 7/8" return. Escutcheon dimension 3-1/2" x 8-1/8". Key removable outside lever for fast re-keying. Non-handed levers with 2-1/8" diameter bore.
Breakaway Lever Design Lever stays at the 5 o'clock position when forced down without retracting the latch to help prevent handle breakage.
Door Ranges 1-3/4" - 2"
ANSI Standards Meets or exceeds ANSI A156.2, Series 4000 Grade 2 requirements.
Strikes CRCODE204 strikes supplied with exit device ordered. Additional strikes available upon request.
Trim Thru-bolted assembly through door with separate spring cage for each lever.
