Cal-Royal - CRCODE203 - Mechanical Push Button Lock - Institution Function - Grade 2

Cal-Royal - CRCODE203 - Mechanical Push Button Lock - Institution Function - Grade 2

$720.99 USD
$936.35 USD $720.99 USD
Sale Sold out
Color

Cal-Royal - CRCODE203 - Mechanical Push Button Lock - Institution Function - Grade 2

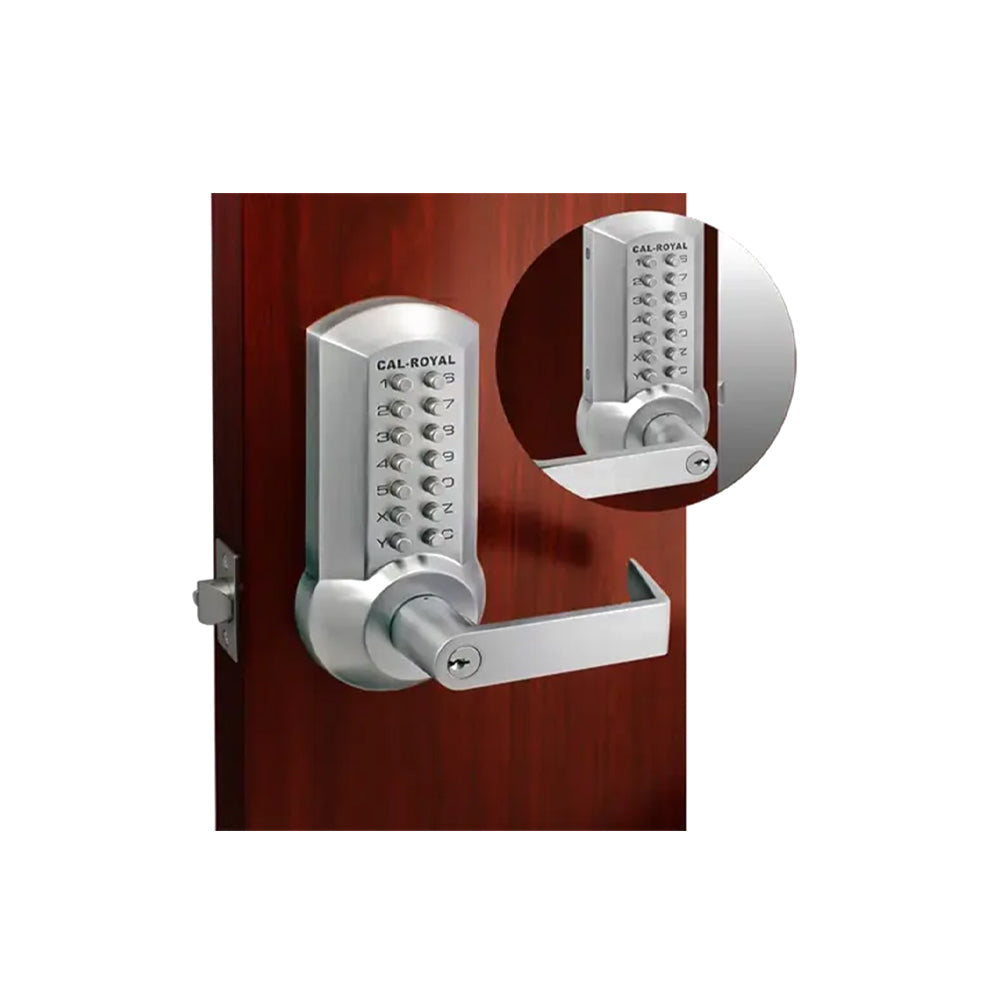

The CRCODE203 a Grade 2 mechanical stand-alone push button lock and exit device trim engineered for secure keyless access control. Featuring a durable breakaway lever mechanism, weather-resistant construction, and easy code change functionality, it delivers reliable performance for commercial and institutional applications.

Features:
  • Meets ADA requirements specially designed for Barrier Free Application.Conforms with ANSI A156.2, Series 4000 GRADE 2.
  • Easy installation covers 161 prep (2-1/8" hole)
  • Supports 1 to 12 digit code combinations
  • Single code user operation
  • Built-in key override function
  • Easy on-the-door code change without removing the lock
  • Code-free passage mode option
  • Breakaway lever design for added protection
  • Clutch-free mechanism for reliable operation
  • Weather-resistant construction
  • Non-handed design for flexible installation
  • More than 8,000 non-sequential possible code combinations
Specifications:
General Full length 5-1/2" lever handle with 7/8" return. Escutcheon dimension 3-1/2" x 8-1/8". Key removable outside lever for fast re-keying. Non-handed levers with 2-1/8" diameter bore.
Breakaway Lever Design Lever stays at the 5 o'clock position when forced down without retracting the latch to help prevent handle breakage.
Door Ranges 1-3/8" - 1-3/4"
ANSI Standards Meets or exceeds ANSI A156.2, Series 4000 Grade 2 requirements.
Strikes ASA 1-1/4" x 4-7/8"
Latch Faceplate Standard 2-1/4" x 1-1/8" faceplate with 2-3/4"
Trim Thru-bolted assembly through door with separate spring cage for each lever.
Latch Options Standard 2-3/4" brass latch with 1/2" throw. Optional 2-3/8" backset with 2-1/4" x 1" faceplate CRCODE203.
