Cal-Royal

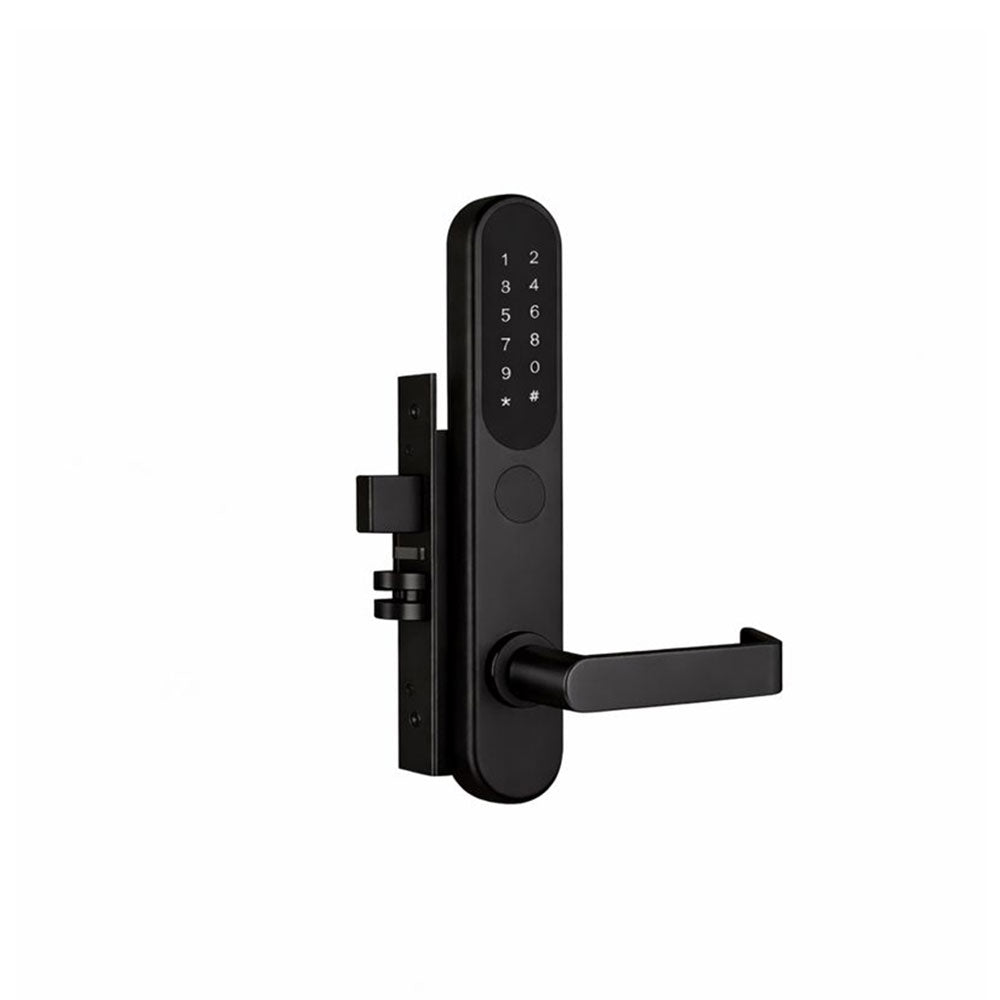

Cal-Royal - CR929M - Smart Digital Mortise Lock - Residential/Commercial - Clutch Mechanism with Cylinder Override - Left Hand Reverse - Grade 2

Cal-Royal - CR929M - Smart Digital Mortise Lock - Residential/Commercial - Clutch Mechanism with Cylinder Override - Left Hand Reverse - Grade 2

$845.00 USD
$1,097.40 USD $845.00 USD
Sale Sold out
Color
Lever Style

Cal-Royal - CR929M - Smart Digital Mortise Lock - Residential/Commercial - Clutch Mechanism with Cylinder Override - Left Hand Reverse - Grade 2

Features:
  • Apple and Android Compatible - iPhones with iOS 13.0 and above; Android 5.0 or above with smartphone connectivity capability.
  • TTLOCK App - Lock can be managed and synced using the app.
  • Admin Phone - Only one administrator phone is allowed at a time. Only smartphones can serve as the administrator. One admin phone can add a second-level admin and manage up to 250 locks.
  • Access Log (Audit Trail) - Stores up to 2,000 audit trail entries.
  • Gateway Connectivity - Optional gateway device allows compatible locks to connect to the internet for remote management.
  • Keypad Anti-Tamper Lockout - If an invalid code is entered five consecutive times, the unit will alarm and remain idle for one minute.
  • Key / Thumb-Turn Turning Detector - Detects mechanical operation such as key use or thumb-turn rotation and records it in the access log.
  • Low Battery Warning - Alerts users when battery power is low.
  • Passage Mode - Keeps the smart lock unlocked for an extended period. Can be controlled via smartphone when nearby or through Wi-Fi when remote.
  • Pre-Entry Codes (Anti-Peeping) - Displays random digits before or after the actual code to prevent identification through fingerprints on the touchscreen.
  • Optional Auto Re-Locking - Automatically relocks from 5 to 60 seconds or longer.
  • Restricted Access Right - Allows programming of specific access periods or intervals for users.
  • One-Time User PIN Code - Generates a single-use PIN code for temporary access.
  • Factory Setting Construction Passcode - Pre-set generic code used to access or reset the device during construction; a Construction Engineering Card is also available.
Specifications:
Applications For offices, apartments, hotels/motels, residential, and commercial use.
Door Thickness 1 1/2" (38mm) - 2 3/8" (60.3mm) standard.
Backset 2 3/4" (70mm) standard.
Latch Faceplate 8" (203mm) x 1 1/8" (28mm), square corner.
Strikes 4 7/8" (124mm) x 1 7/8" (48mm) ASA strike.
ANSI Standards Meets ANSI / BHMA A156.2 Series 4000, Grade 2 strength and operational requirements.
Cylinder 6-pin solid brass "Schlage C" mortise cylinder with two brass keys per lock. Optional master key system available.
Low Battery Indicator Blinking sound alerts when internal 4 AAA alkaline batteries are low. Battery percentage is also displayed in the app.
Power Source Powered by 4 AAA alkaline batteries (included in the box).
Emergency Power Back-Up Type-C USB emergency power cable.
Weather Resistant Weather resistant for operating temperatures from -4°F to 149°F (-20°C to +65°C). For outdoor front panel use, the back panel should not be exposed to outdoor conditions. Optional rubber seal included for enhanced outdoor weather resistance.

Includes:
  • RFID Card (2X)
  • Optional Rubber Seal for Outside and Inside Unit
  • Magnetic Cylinder Cap Remover
  • Door Position Switch
  • 4X AAA Batteries
Download:
