Cal-Royal

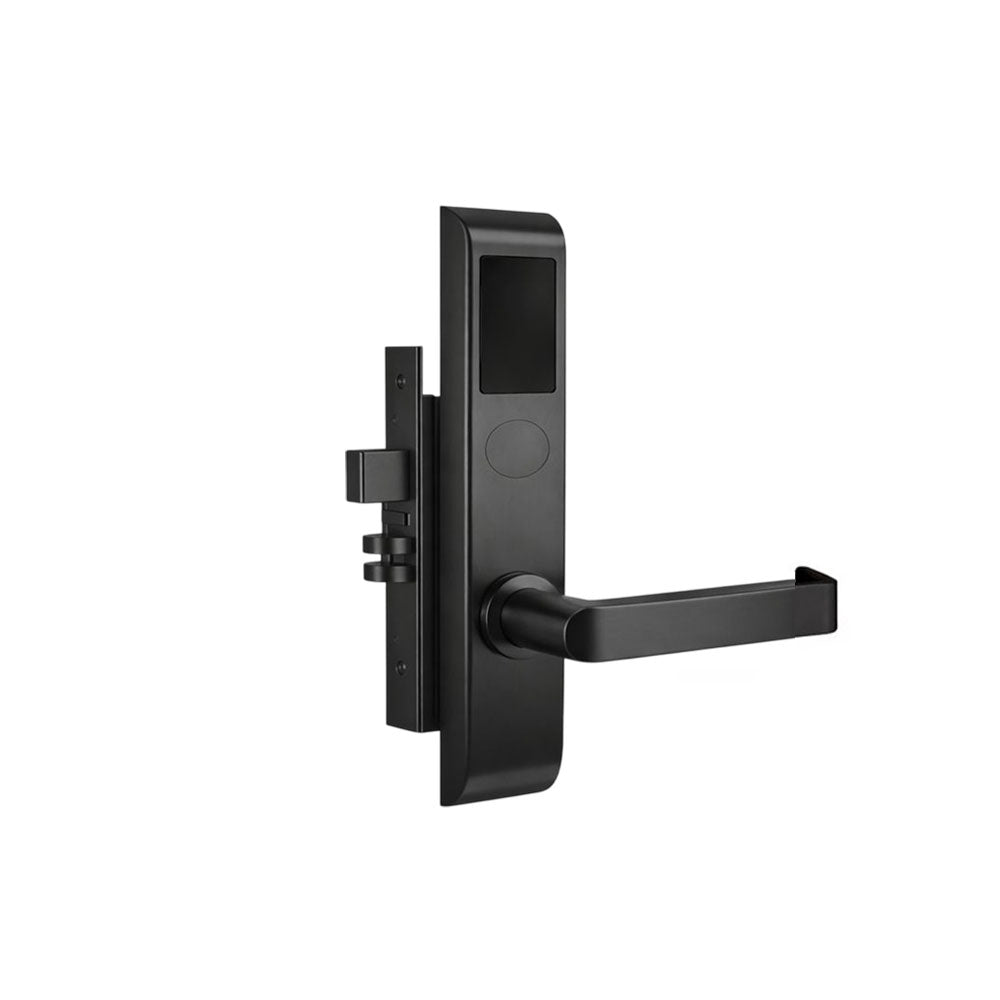

Cal-Royal - CR9298D05 - Smart Mortise Lock - Storeroom - Clutch Mechanism with Cylinder Override - Left Hand Reverse - Grade 2

Cal-Royal - CR9298D05 - Smart Mortise Lock - Storeroom - Clutch Mechanism with Cylinder Override - Left Hand Reverse - Grade 2

$805.00 USD
$1,045.45 USD $805.00 USD
Sale Sold out
Color
Lever Style

Cal-Royal - CR9298D05 - Smart Mortise Lock - Storeroom - Clutch Mechanism with Cylinder Override - Left Hand Reverse - Grade 2

Features:
  • Apple and Android Compatible - iPhones with iOS 13.0 and above; Android 5.0 or above with smartphone connectivity capability.
  • TTLOCK App - Lock can be managed and synced using the app.
  • Gateway Connectivity - Optional gateway device allows compatible locks to connect to the internet for remote lock management.
  • Admin Phone - Only one administrator phone is allowed at a time. Only smartphones can serve as the administrator. One admin phone can add a second-level admin and manage up to 250 locks.
  • Access Log (Audit Trail) - Stores up to 2,000 audit trail entries.
  • Passage Mode - Keeps the smart lock unlocked for an extended period and can be controlled via smartphone when nearby or through Wi-Fi when remote.
  • Optional Auto Re-Locking - Automatically relocks from 5 to 60 seconds or longer.
  • Restricted Access Right - Can be programmed to specify access periods or user intervals.
  • Low Battery Warning - Alerts users when battery power is low.
  • Key / Thumb-Turn Turning Detector - Detects mechanical operation such as key use or thumb-turn rotation and records it in the access log.
  • Factory Setting Construction Pass - A construction passcode is available for use during construction, with an optional Construction Engineering Card.
Specifications:
Applications For offices, apartments, hotels/motels, residential, and commercial use.
Door Thickness 1 1/2" (38mm) - 2 3/8" (60.3mm) standard.
Backset 2 3/4" (70mm) standard.
Latch Faceplate 8" (203mm) x 1 1/8" (28mm), square corner.
Strikes 4 7/8" (124mm) x 1 7/8" (48mm) ASA strike.
ANSI Standards Meets ANSI / BHMA A156.2 Series 4000, Grade 2 strength and operational requirements.
Cylinder 6-pin solid brass "Schlage C" mortise cylinder with two brass keys per lock. Optional master key system available.
Clutch Mechanism Clutch technology allows the lever to turn without retracting the latch, reducing stress on the spindle and extending lock life.
Thumbturn ADA ergonomic thumbturn.
Low Battery Indicator Blinking sound alerts when internal 4 AAA alkaline batteries are low. Battery percentage is also displayed in the app.
Power Source Powered by 4 AAA alkaline batteries (included in the box).
Emergency Power Back-Up Type-C USB emergency power cable.
Weather Resistant Weather resistant for operating temperatures from -4°F to 149°F (-20°C to +65°C). For outdoor front panel use, the back panel should not be exposed to outdoor conditions. Optional rubber seal included for enhanced outdoor weather resistance.

Includes:
  • RFID Card (2X)
  • Optional Rubber Seal for Outside and Inside Unit
  • Magnetic Cylinder Cap Remover
  • 4X AAA Batteries
Download:
View full details
