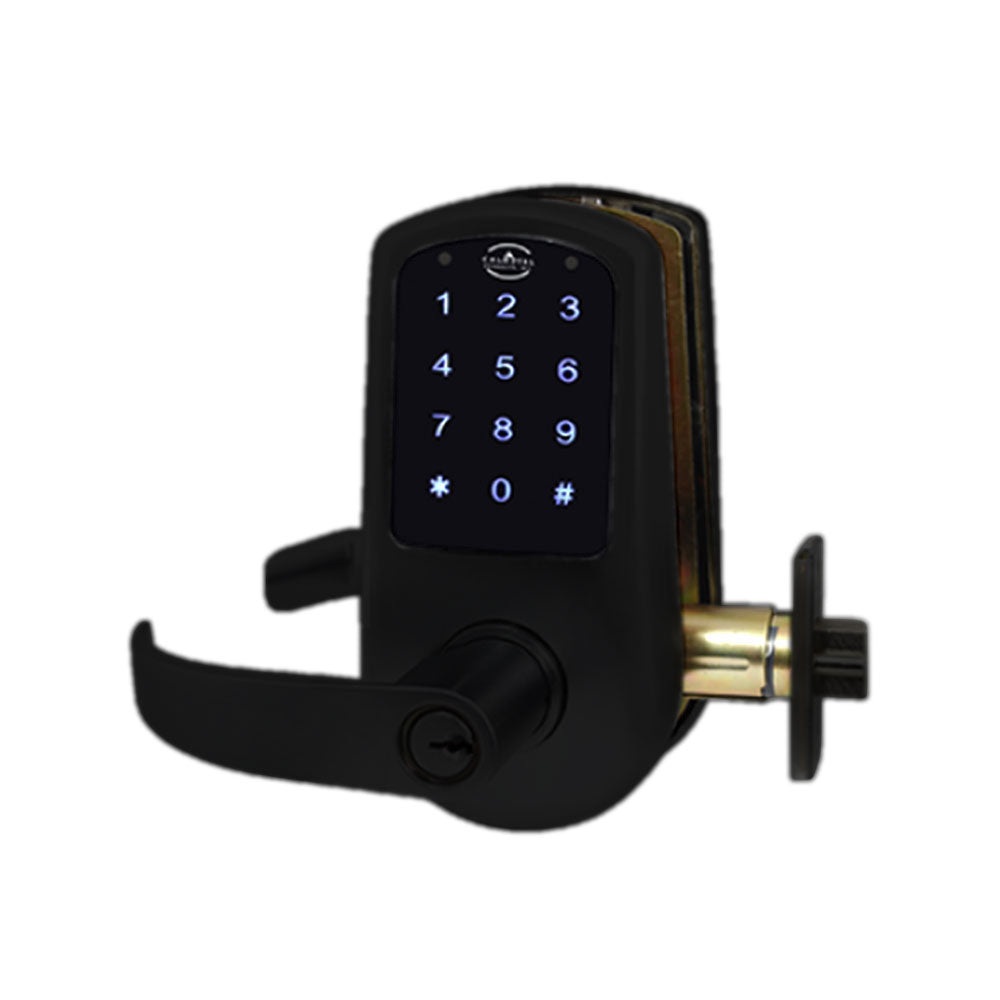

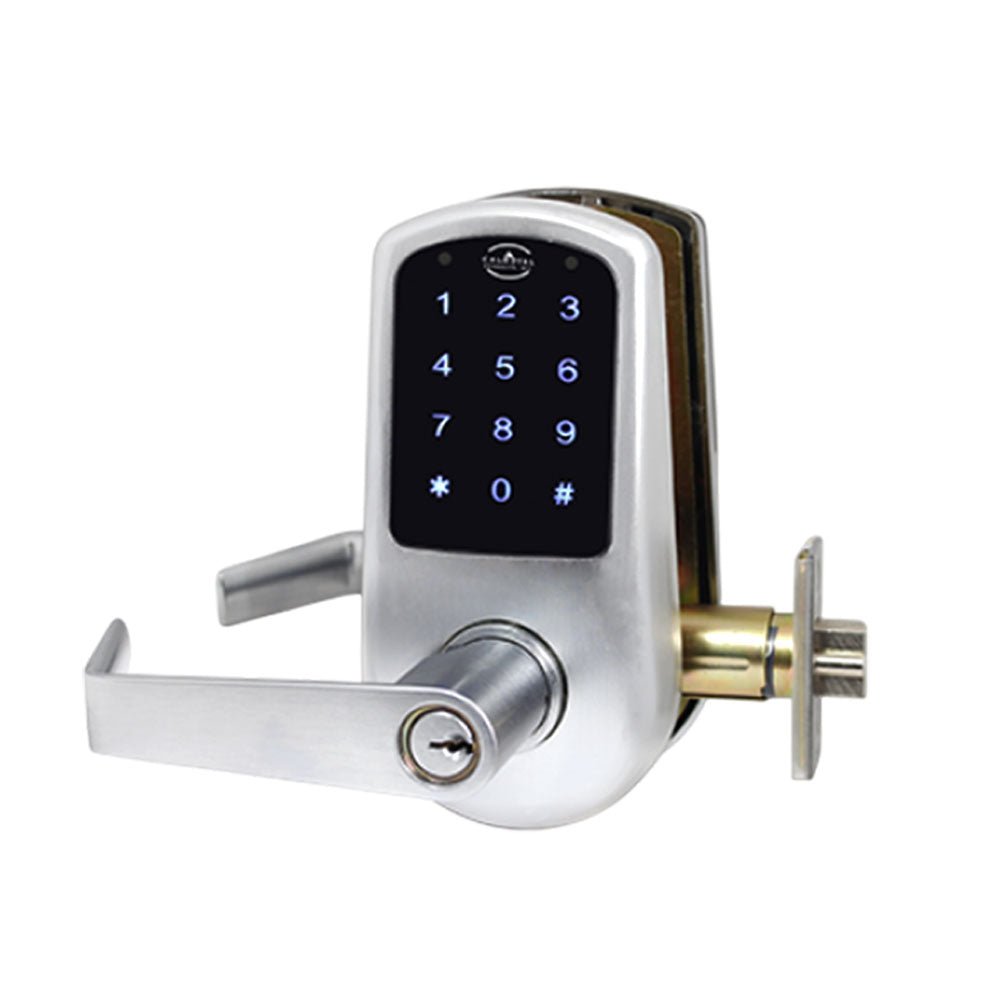

Cal-Royal - CR9000 - Commercial Digital Touch Screen Door Lock With Clutch Technology - Entrance - Grade 2

Cal-Royal - CR9000 - Commercial Digital Touch Screen Door Lock With Clutch Technology - Entrance - Grade 2

$244.70 USD
$317.79 USD $244.70 USD
Sale Sold out
Color
Lever Style

Cal-Royal - CR9000 - Commercial Digital Touch Screen Door Lock With Clutch Technology - Entrance - Grade 2

Features:
  • Stand-alone Touchscreen: Responds to human touch enabling convenient entrance or access to programming menu. After operation has been completed, the lock reverts back to sleep mode.
  • Master PIN Code: Use for programming the lock and entering Master and User PIN codes. Can also be used to open the lock and reset to factory settings. (6 digits)
  • User PIN Code: This feature only opens the lock by entering the code on the touch pad. It won't be able to program or change the settings. This lock can accommodate up to 50 user codes, 4 to 6 digits combined RFID and User PIN codes. One-Time
  • User PIN Code: Can only be used once. This lock can store up to 2 one-time User PIN code simultaneously.
  • Auto Re-lock Time: After successful code entry and unit unlock, it will automatically re lock in default for five (5) seconds. It can be changed by Master PIN code.
  • Passage Mode: Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the greenLED light is blinking.
  • Lock-Out Mode: This feature can be enabled by Master PIN Code. When enabled, it restricts all User PIN codes access except Master PIN code.
  • Low Battery Indicator: The blinking action signals internal 4 AA alkaline batteries are low.
  • Weather Resistant: CR9000 are manufactured making sure that internal electronic parts are protected from moisture, dust water and corrosion. All models are weather resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ +66°C) at 85% relative humidity.
  • Touch to Wake-up: Touching the screen
Specifications:
Functions Entrance
Applications For offices, schools, hospitals, apartments, condo units, hotel/motel, residential, commercial, and public buildings.
Door Thickness 1 3/8" (35mm) ~ 1 3/4" (45mm) standard.
Backset 2 3/4" (70mm) standard or 2 3/8" (60mm) optional backset.
Latch Faceplate 1 1/2" x 2 1/4" (28mm x 57mm) square corner, beveled, for 2 3/4" (70mm) backset standard.
1" x 2 1/4" (25mm x 57mm) square corner, beveled, for 2 3/8" (60mm) backset optional.
Strikes ANSI Curved lip strike 1 1/4" x 4 7/8" x 1 3/16" (32mm x 124mm x 30mm) lip to center standard. Optional ("T", "Full-lip") strikes available on request, lip lengths and strike box available.
ANSI Standards Meets ANSI / BHMA A156.2 Series 4000, Grade 2 strength and operational requirements.
Latch Bolt 1/2" (13mm) throw solid brass, deadlocking on keyed and non-keyed function.
Cylinder 6-pin solid brass "Schlage C" keyway standard with two brass keys per lock.
Lever Mechanism Free wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
Interchangeable Core (IC) SFIC Interchangeable Core security cylinder. Compatible 6 or 7 pin cores with Best and Master. Prefix "IC" before part number.
Power Source Powered by 4 AA Alkaline batteries.
Weather Resistant All models are weather resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ +66°C) at 85% relative humidity.
