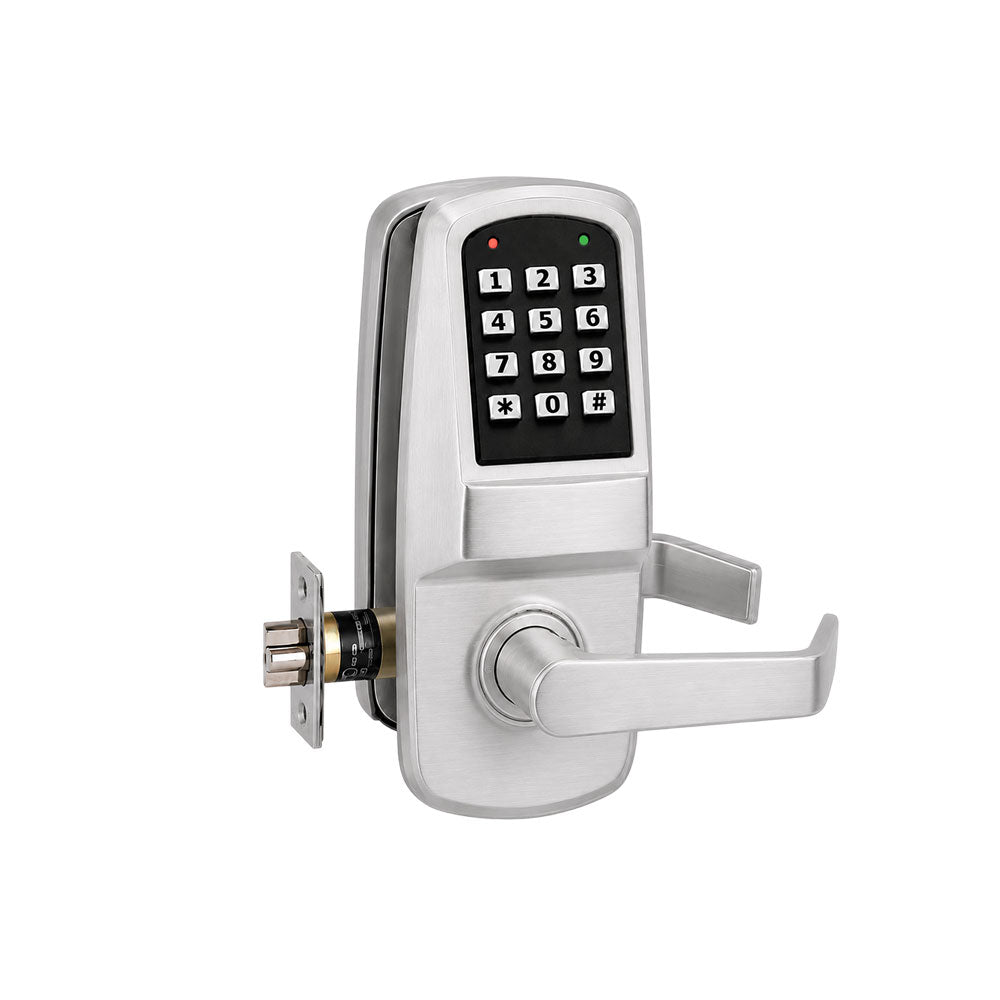

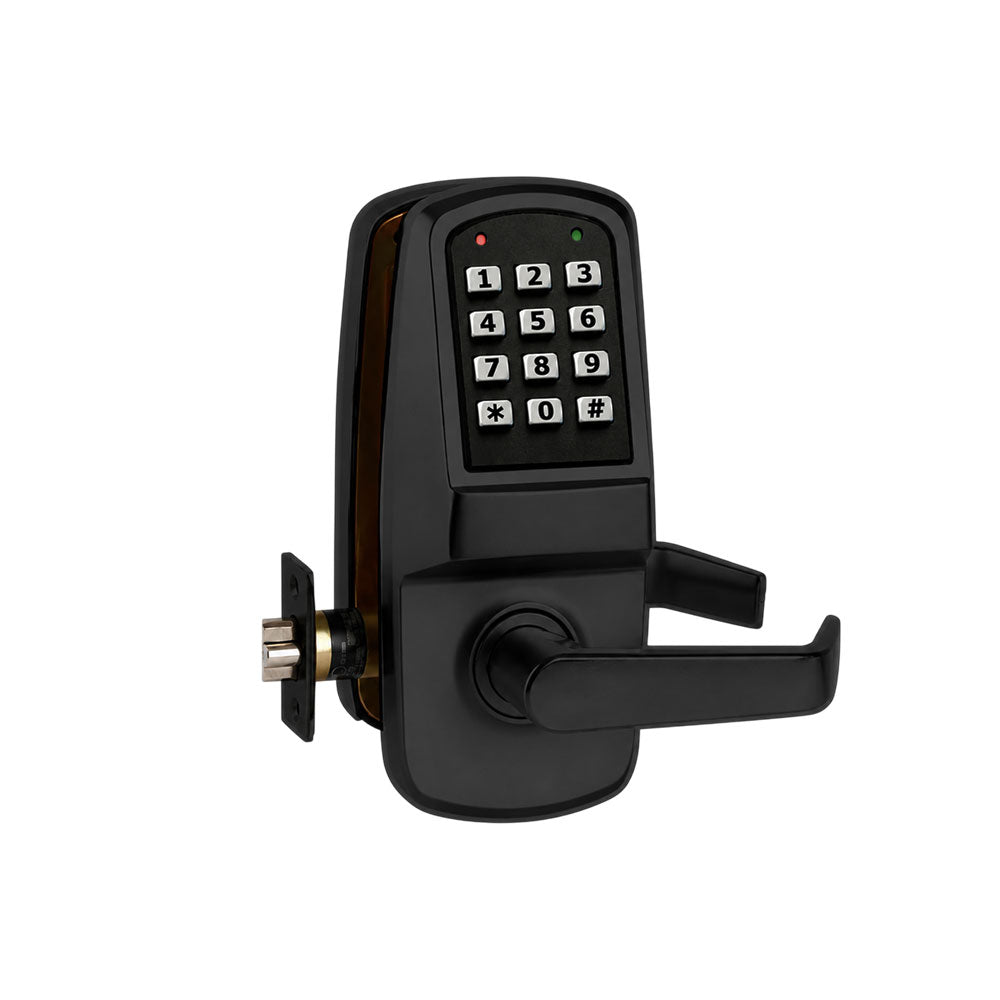

Cal-Royal - CR8030 - Heavy Duty Digital Keypad Door Lock with Clutch Technology - Passage Function - Grade 1

Cal-Royal - CR8030 - Heavy Duty Digital Keypad Door Lock with Clutch Technology - Passage Function - Grade 1

$452.76 USD
$588.00 USD $452.76 USD
Sale Sold out
Color
Lever

Cal-Royal - CR8030 - Heavy Duty Digital Keypad Door Lock with Clutch Technology - Passage Function - Grade 1

Features:
  • Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.
  • Manager PIN Code - Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.
  • User PIN Code - This feature only opens the lock by entering the code on the touch pad. It won't be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.
  • One-Time User PIN Code - Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.
  • Beep & LED Indicators - This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.
  • Lock-Out Mode - This feature is enabled by the Master PIN Code. When enabled, It Retricts all User PIN codes and RIFD CARD / KEYFOB access except Master PIN code. The padlock icon will appear on the screen when the unit is in lock-out mode.
  • Keypad Anti-Tamper Lock Out - This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be used to open the lock and reset to factory settings.
  • Weather Resistant - CR8000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of 30°F ~ 150°F (-35°C ~ +66°C)
  • Non-Handed - The CR8000 can be installed for both left and right door opening.
  • Passage Mode - Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen
Specifications:
Applications For Offices, Schools, Hospitals, Apartments, Condo units, Hotel/Motel, Residential, Commercial, and Public buildings.
Door Ranges 1 3/8" to 1 3/4 " thickness.
Backset 2 3/4" standard or 2 3/8", 3 3/4" or 5" optional backset.
Latch Faceplate Standard 1 1/8" x 2 1/4" for 2 3/4" backset.
Optional 1" x 2 1/4" for 2 3/8" backset.
Strikes ASA Strike standard, T and full lip strike available on request.
ANSI Standards Meets ANSI / BHMA A156.2 Series 4000 Grade 1 requirements.
Clutch Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
Power Supply 4AA Batteries (comes standard in packaging).
Cylinder 6-pin solid brass "Schlage C" keyway standard with two brass keys per lock.
Weather Resistant All models are weather-resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ 66°C).
Touch Screen Responds to human touch enabling convenient entrance or access to the programming menu. After the operation has been completed, the lock reverts to sleep mode.
Keypad 12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service codes.
