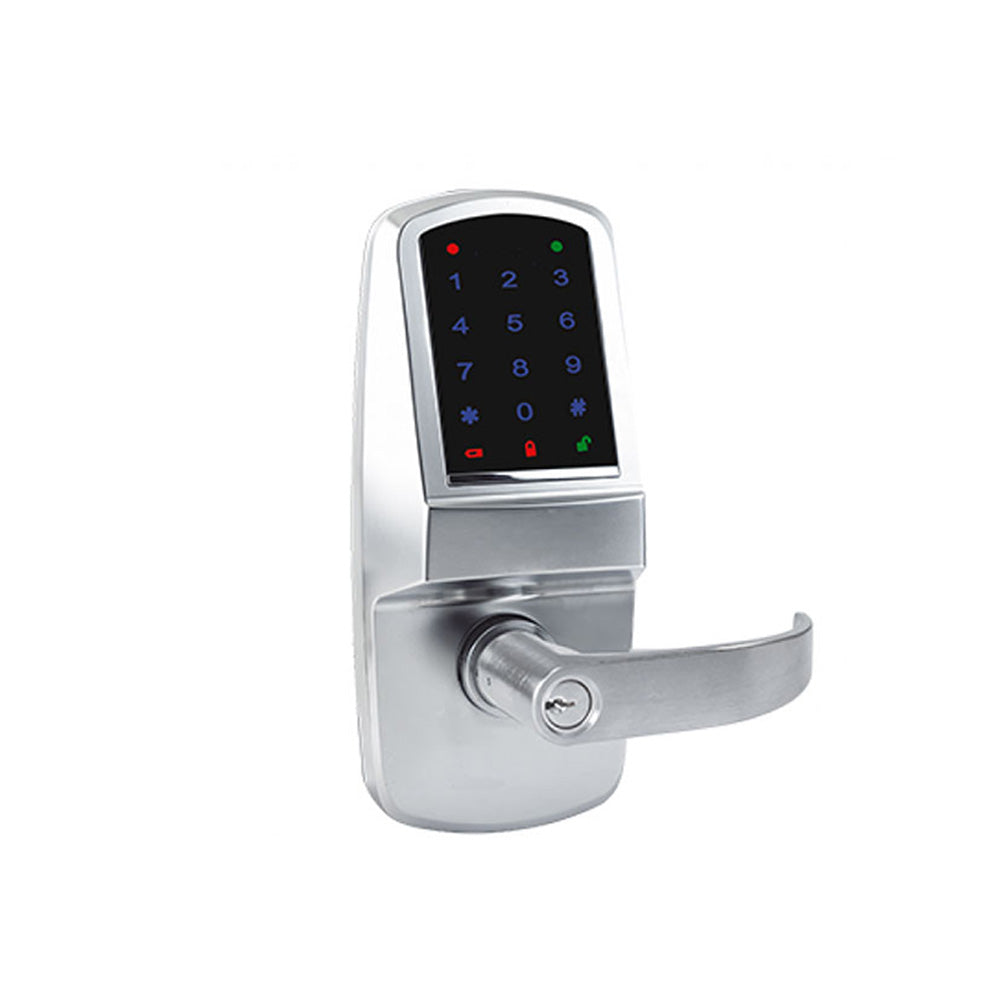

Cal-Royal - CR6100 - Digital Touch Screen Door Lever Lock with SPA Lever Design - Grade 1
Cal-Royal - CR6100 - Digital Touch Screen Door Lever Lock with SPA Lever Design - Grade 1
Regular price
$479.04 USD
Regular price
$622.13 USD
Sale price
$479.04 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - CR6100 - Digital Touch Screen Door Lever Lock with SPA Lever Design - Grade 1
Function: Latch bolt operated by lever from either side. Outside would need to enter pre-programmed code on the touch screen in order to retract the latch upon turning lever. Key overrides the use of the touch screen.
Features:
- Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, GRADE 1
- Master Code
- 500 User Codes
- 500 RFID Card/KeyFob per Lock
- 2 on Time User Codes
- 4-6 Digit Code Combination
- Passage Mode
- Weather Resistant
- 9V Battery Emergency Port
- Anti-Tamper Lockout
- Lock-Out Mode
- Clutch Technology
- Non-Handed Reversible
- Proximity Cart (13.56 MHz)
- RFID Keyfob (Optional)
- Mobile App for Android and Apple
- Bluetooth Reciever (Optional)
Specifications:
| Brand | Cal-Royal |
| Usage | Heavy Duty |
| Applications | For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings |
| Latch | 1/2" throw, deadlocking – 1-1/8" x 2-1/4" face |
| Strike | 4-7/8" ASA Strike |
| Handing | Non Handed – Completely Reversible |
| Power | 4 AA batteries |
| Door Applications | Interior or Exterior Doors |
| Lever Design | GN, AT, SPA |
| Lock Function | Touchscreen Keypad |
| ANSI Grade | ANSI Grade 1 |
| Keyway | Schlage C Keyway |
| Backset | 2-3/4" |
| Door Thickness | 1-3/4" |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Reader Type | Keypad |
| Clutch | Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts. |
| Weather Resistant | All models are weather resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ 66°C). |
| Interchangeable Core (IC) | Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefi x "IC" before part number. |
