Cal-Royal

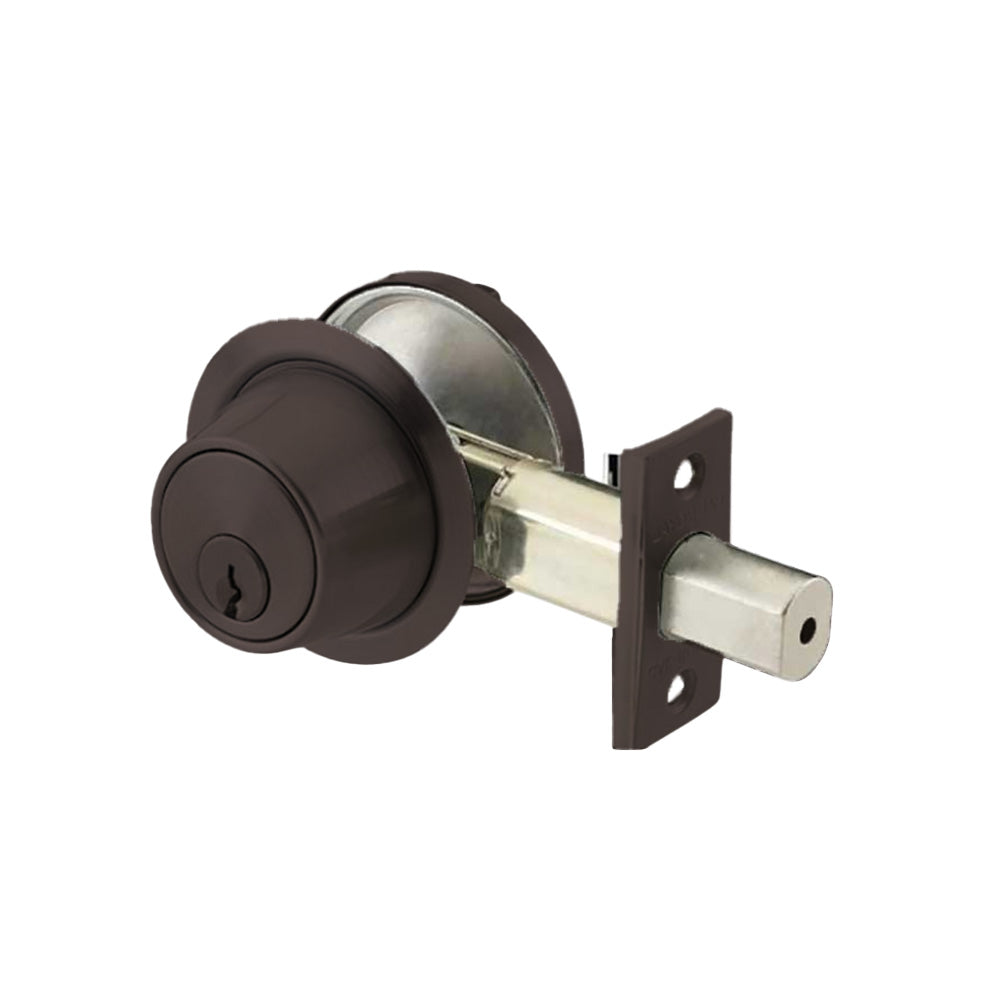

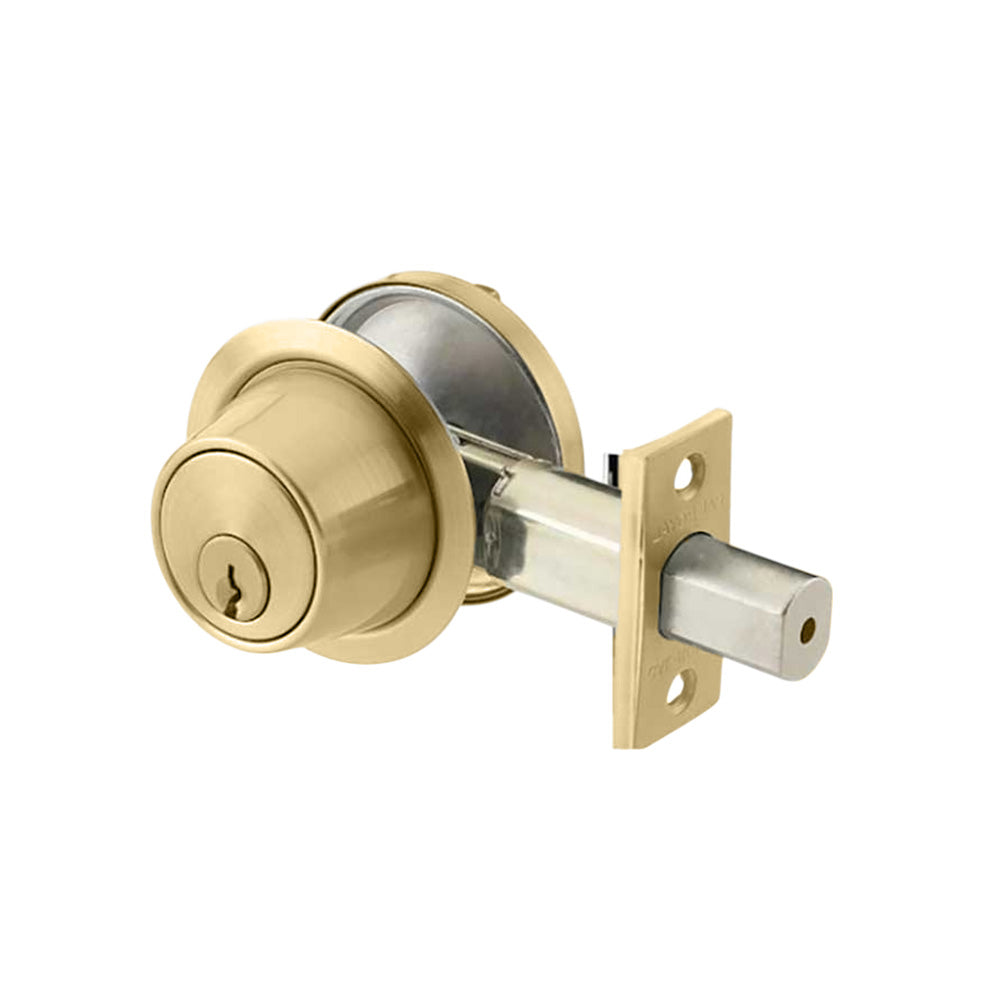

Cal-Royal - CB162 - Double Cylinder Deadbolt - Grade 2
Cal-Royal - CB162 - Double Cylinder Deadbolt - Grade 2
Regular price
$50.58 USD
Regular price
$65.69 USD
Sale price
$50.58 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - CB162 - Double Cylinder Deadbolt - Grade 2
Features:
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Standard 6-pin solid brass "C" keyway
- Sturdy, all steel latch case and mechanism
- Meets the Buy American Act
Specifications:
| Trim | Wrought Brass or Stainless Steel |
| Function | Deadbolt thrown or retracted by key from either side. Boltautomatically deadlocks when fully thrown |
| Door Ranges | Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Deadbolt Faceplate | Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations |
| Bore Diameter | 1" for latch, 1-1/2" or 2-1/8" for lock housing |
| Strike | 1-1/8" x 2-3/4" Square Corner |
| Keyway | Standard 6-pin solid brass "C" keyway |
