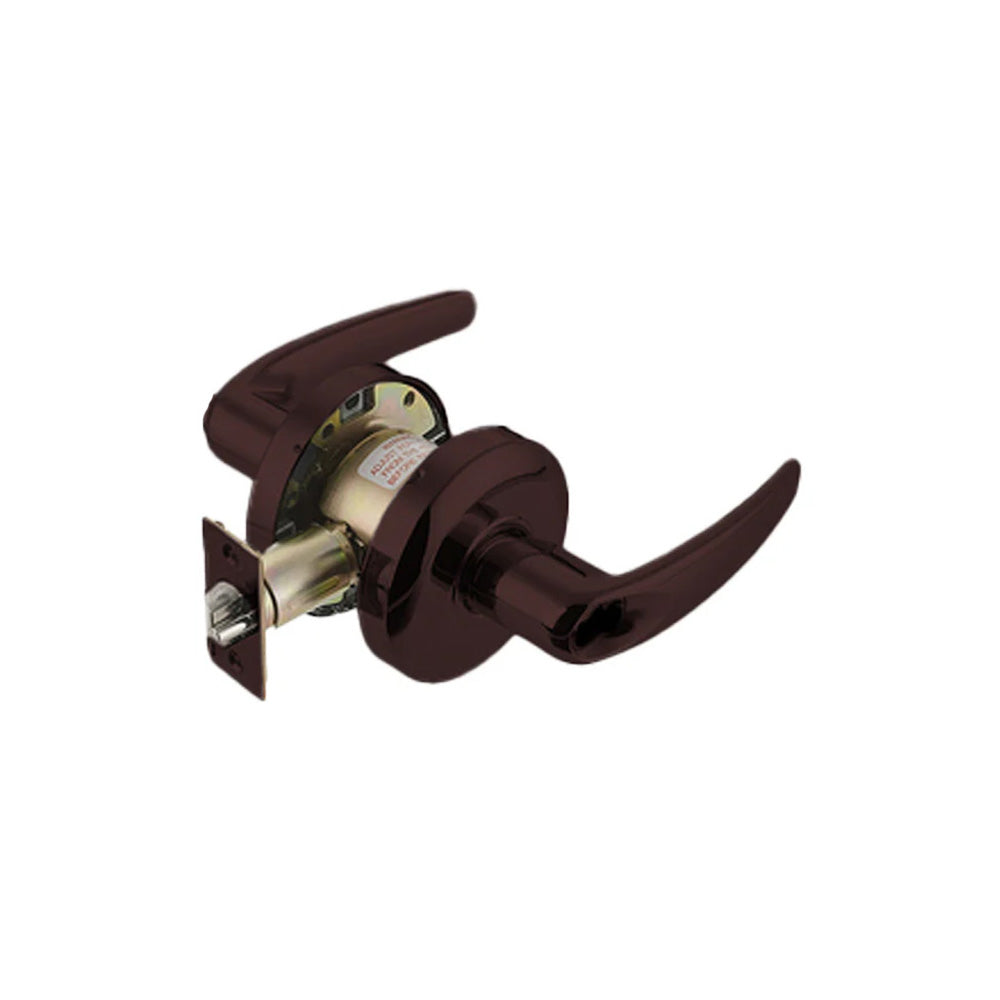

Cal-Royal - CAT00 - Commercial Lever Set Cylindrical Lock Turn/Push Button with Schlage C Keyway and 2-3/4" Backset - Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
Cal-Royal - CAT00 - Commercial Lever Set Cylindrical Lock Turn/Push Button with Schlage C Keyway and 2-3/4" Backset - Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
Regular price
$141.25 USD
Regular price
$183.63 USD
Sale price
$141.25 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - CAT00 - Commercial Lever Set Cylindrical Lock Turn/Push Button with Schlage C Keyway and 2-3/4" Backset - Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
Features:
- For Offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings.
- Meets or exceeds BHMA / ANSI A 156.2 series 4000, grade 1 requirements, GRADE 1.
- Heavy Duty Cylindrical Leversets.
- The clutch mechanism Fixed thru-bolt installation.
Specifications:
| ANSI/BHMA Standard | ANSI / BHMA A156 2 series 4000 Grade 1 |
| Latch | 1/2" throw, deadlocking - 1-1/8" x 2-1/4" face |
| Strike | 4-7/8" x 1-1/4" ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/8" to 1-3/4" |
| Handing | Non-Handed |
| Backset | 2-3/4" |
| Lock Function | Entrance / Office Lever |
| Keyway | Schlage C |
| Finish | US10B - Dark Oxidized Satin Bronze Oil Rubbed (613) |
