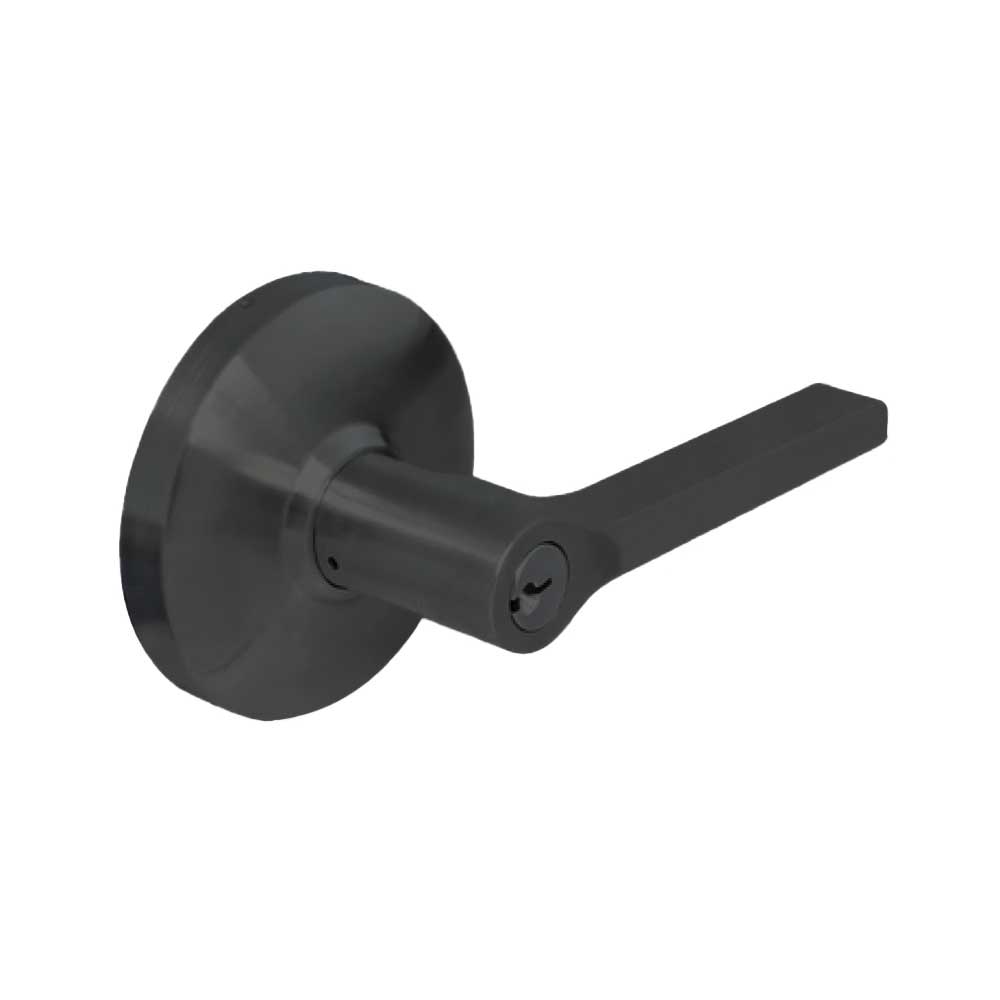

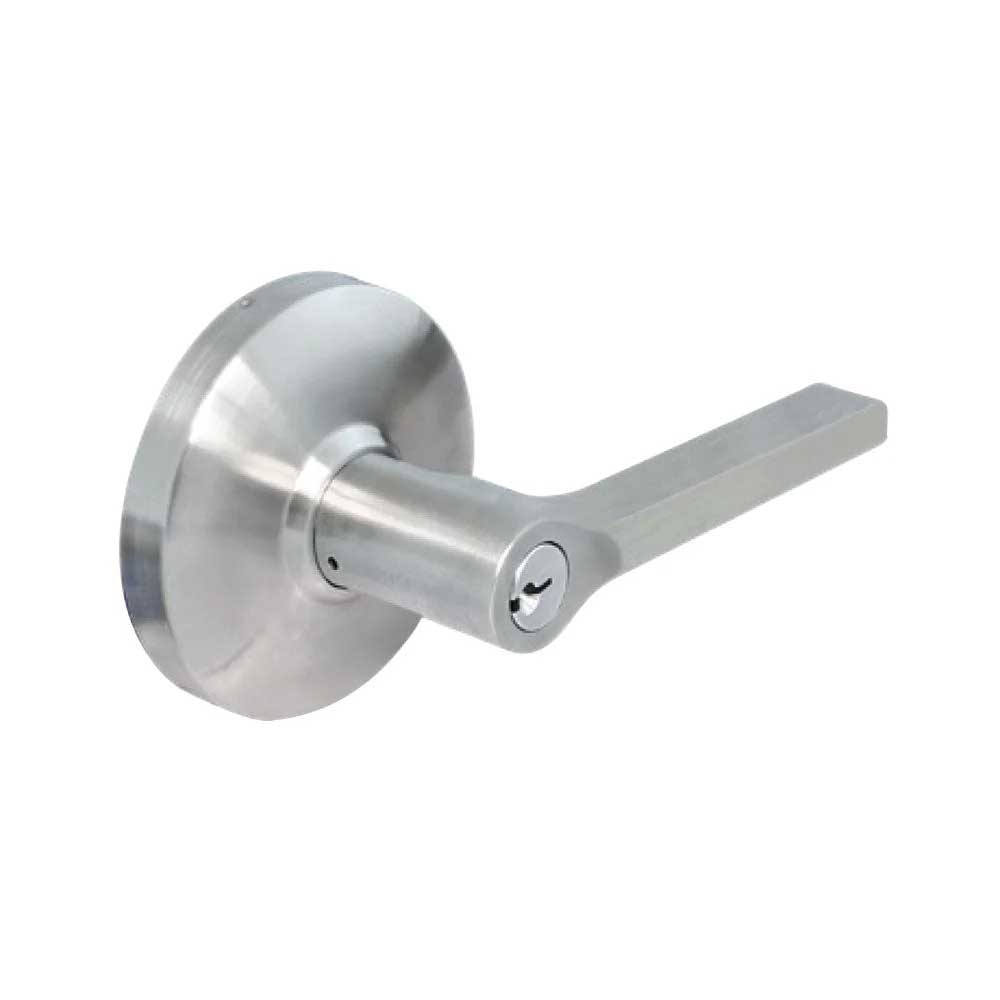

Cal-Royal - C2-LON20 - Cylindrical Clutch Mechanism Privacy Tuscany Series Lever Lock - Grade 2
Privacy Lock - Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning the inside lever or closing the door releases the push button.
Features:
- ANSI F76 Grade 2 Privacy Lock
- Push-button locking from inside
- Emergency release on outside
- Lock released by turning inside lever or closing door
- Suitable for restrooms and private spaces
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed levers for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Key-removable outside lever for quick and easy re-keying
- Durable construction designed for commercial applications
- Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
| Applications | Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings |
| Product Type | Privacy Lock |
| ANSI Grade | Grade 2 |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 (FF-H 106C) |
| Locking Function | Push-button locking from inside |
| Clutch | Yes (Free-turning handle) |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Backset | 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional) |
| Latch Faceplate | 2-1/4" x 1-1/8" |
| Latch Throw | 1/2" (Standard brass latch) |
| Strike Plate | ASA 1-1/4" x 4-7/8" (Standard) |
| Cylinder | 6-pin solid brass |
| Keyway | "C" keyway (Standard) |
| Housing Material | Cold-rolled steel with zinc dichromate finish |
| Retractor | Precision cast steel |
| Handing | Non-handed |
| Mounting | Concealed screws; optional thru-bolted trim |
| Fire Door Options | Anti-friction deadlatch available for paired fire doors |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
