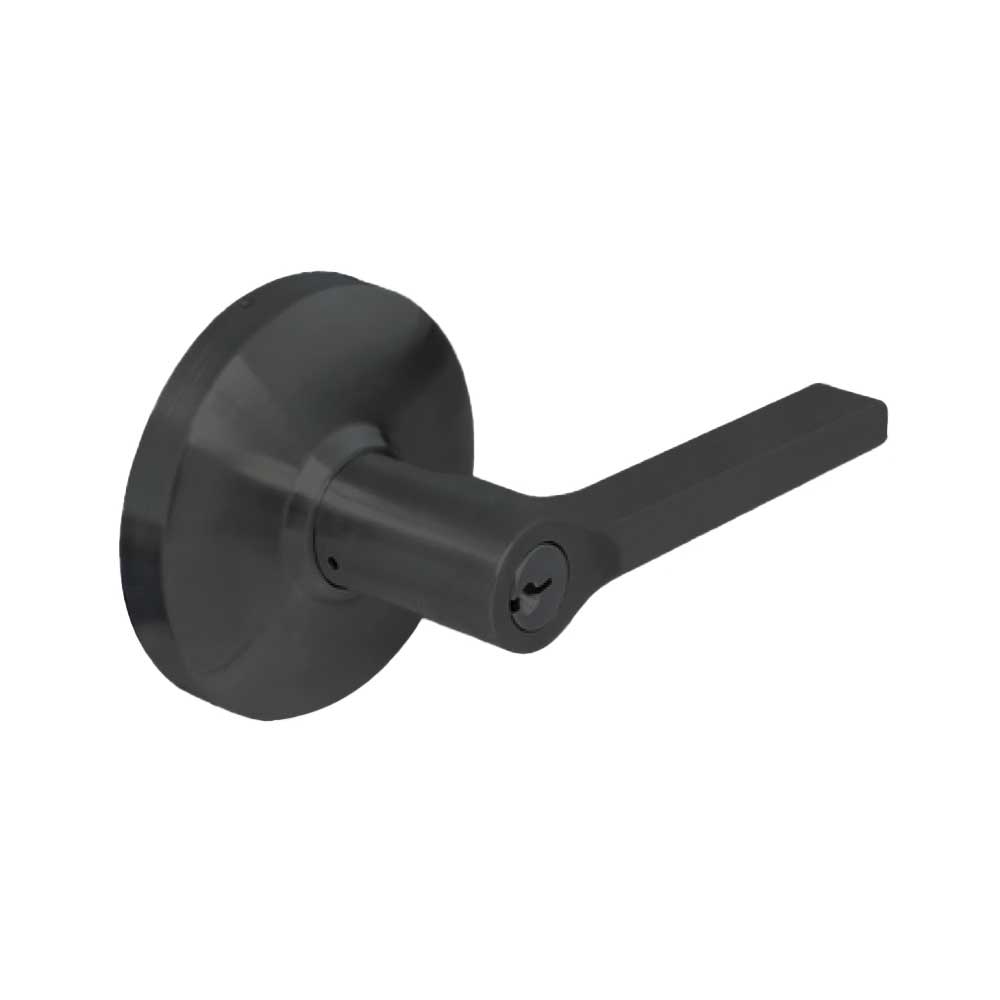

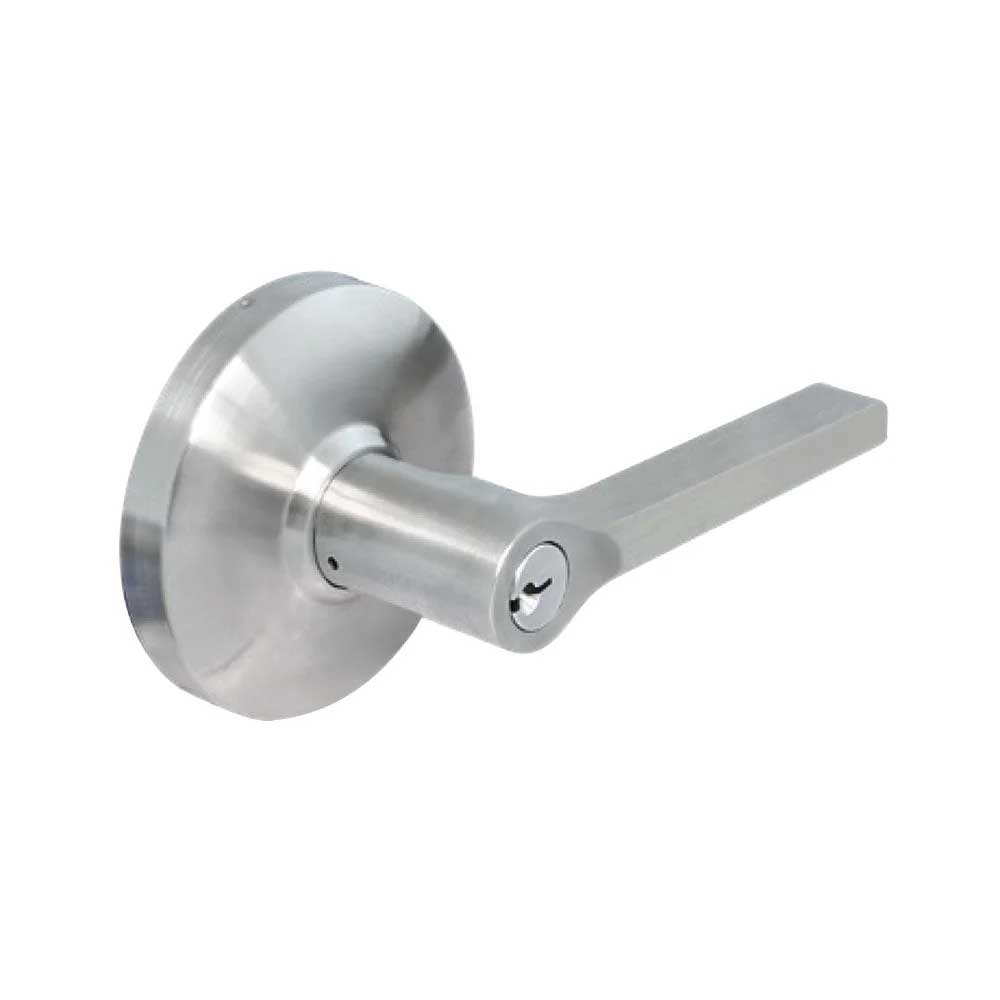

Cal-Royal - C2-LON03 - Cylindrical Clutch Mechanism Classroom Tuscany Series Lever Lock - Grade 2
Classroom Lock - Deadlocking latch bolt operated by lever from either side, except when the outside lever is locked from outside by key. When locked, the latch bolt is operated by turning the inside lever only. Inside lever always free for exit.
Features:
- ANSI F84 Grade 2 Classroom Lock
- Deadlocking latch
- Outside lever locked/unlocked by key
- Inside lever always free for exit
- When locked, latch operated by inside lever only
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed levers for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Key-removable outside lever for quick and easy re-keying
- Durable construction designed for commercial applications
- Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
| Applications | Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings |
| Product Type | Classroom Lock |
| ANSI Grade | Grade 2 |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 (FF-H 106C) |
| Locking Function | Deadlocking latch |
| Clutch | Yes (Free-turning handle) |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Backset | 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional) |
| Latch Faceplate | 2-1/4" x 1-1/8" |
| Latch Throw | 1/2" (Standard brass latch) |
| Strike Plate | ASA 1-1/4" x 4-7/8" (Standard) |
| Cylinder | 6-pin solid brass |
| Keyway | "C" keyway (Standard) |
| Housing Material | Cold-rolled steel with zinc dichromate finish |
| Retractor | Precision cast steel |
| Handing | Non-handed |
| Mounting | Concealed screws; optional thru-bolted trim |
| Fire Door Options | Anti-friction deadlatch available for paired fire doors |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
