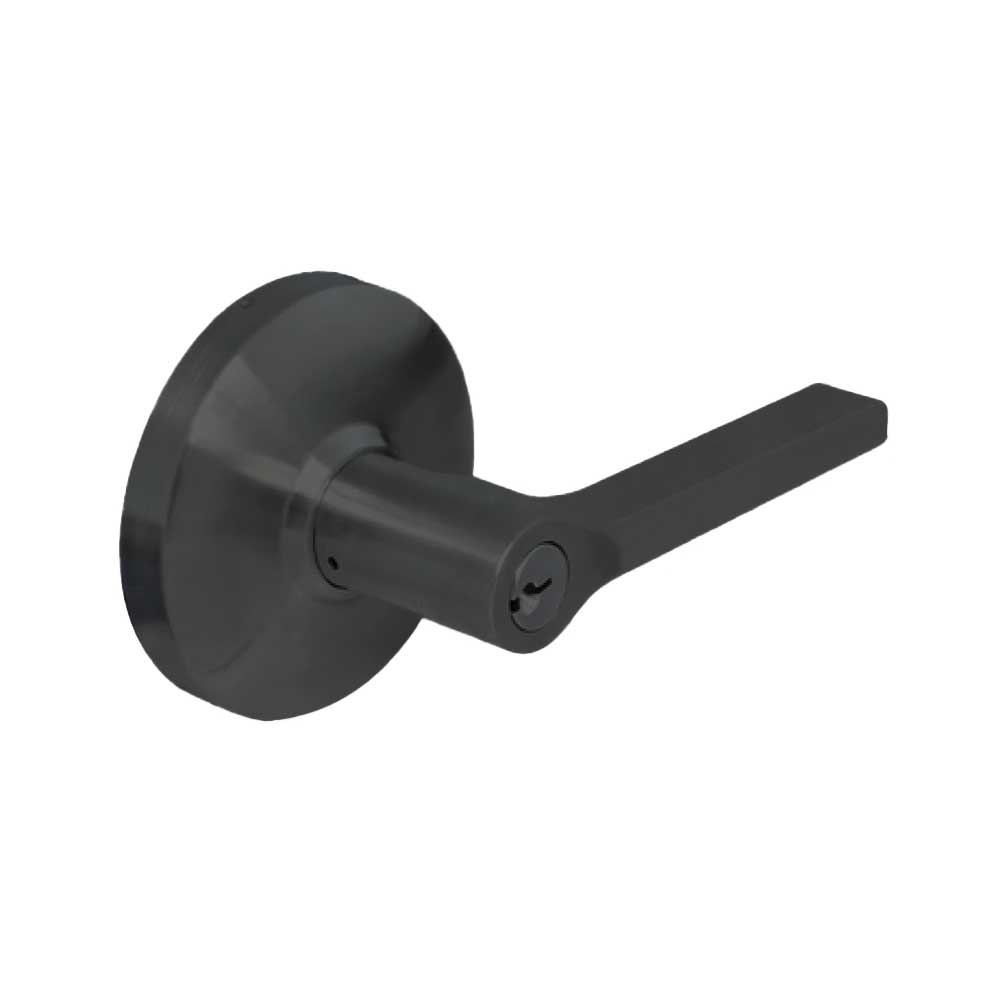

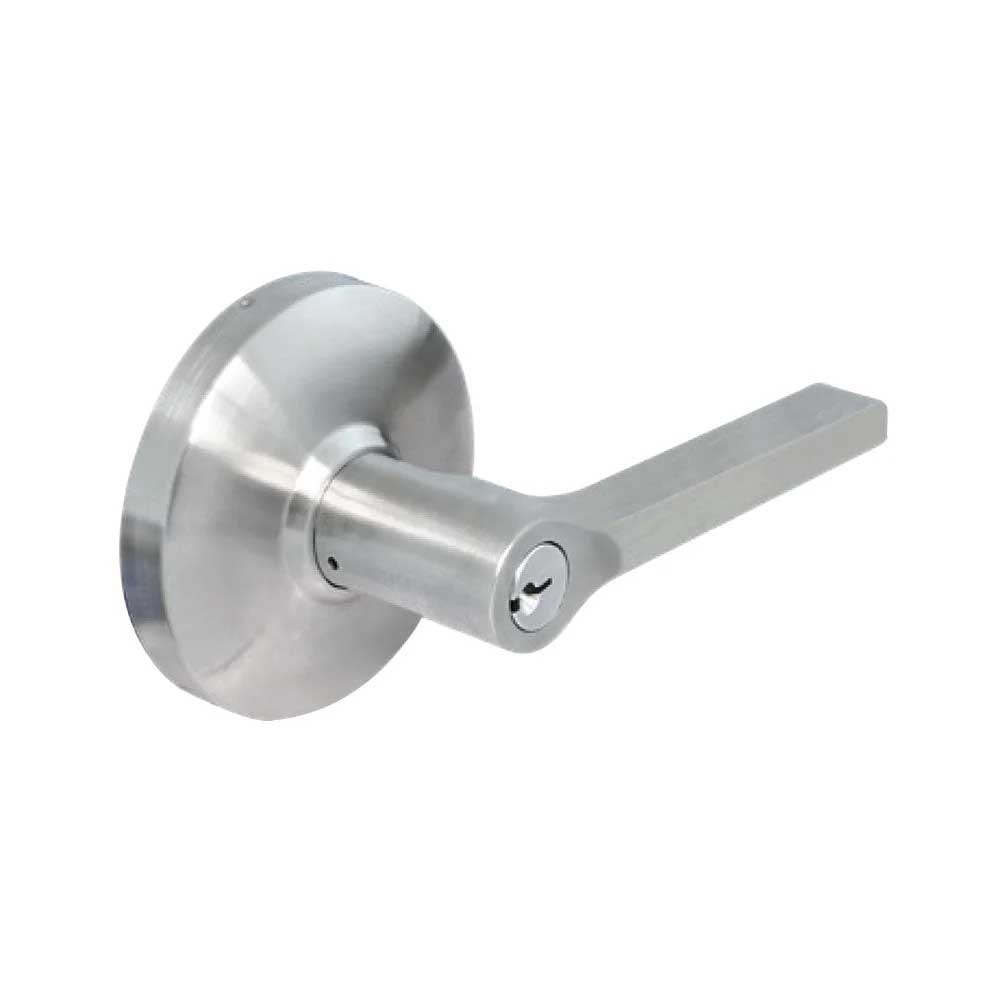

Cal-Royal - C2-LON01 - Cylindrical Clutch Mechanism Entrance Push Button Tuscany Series Lever Lock - Grade 2
Entrance Lock Push Button - Pushing the button in the inside lever locks the outside lever. Turning the inside lever or operating the key in the outside lever releases the button automatically. Closing the door does not release the button. Inside lever always free. Latch bolt automatically deadlocks when door is closed.
Features:
- ANSI F82 Grade 2 Entrance Lock Push Button
- Push-button locking from inside
- Latch automatically deadlocks when door closes
- Outside lever unlocked by key or inside lever
- Inside lever always free
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed levers for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Key-removable outside lever for quick and easy re-keying
- Durable construction designed for commercial applications
- Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
| Applications | Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings |
| Product Type | Entrance Push Button |
| ANSI Grade | Grade 2 |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 (FF-H 106C) |
| Locking Function | Push-button locking from inside |
| Clutch | Yes (Free-turning handle) |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Backset | 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional) |
| Latch Faceplate | 2-1/4" x 1-1/8" |
| Latch Throw | 1/2" (Standard brass latch) |
| Strike Plate | ASA 1-1/4" x 4-7/8" (Standard) |
| Cylinder | 6-pin solid brass |
| Keyway | "C" keyway (Standard) |
| Housing Material | Cold-rolled steel with zinc dichromate finish |
| Retractor | Precision cast steel |
| Handing | Non-handed |
| Mounting | Concealed screws; optional thru-bolted trim |
| Fire Door Options | Anti-friction deadlatch available for paired fire doors |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
