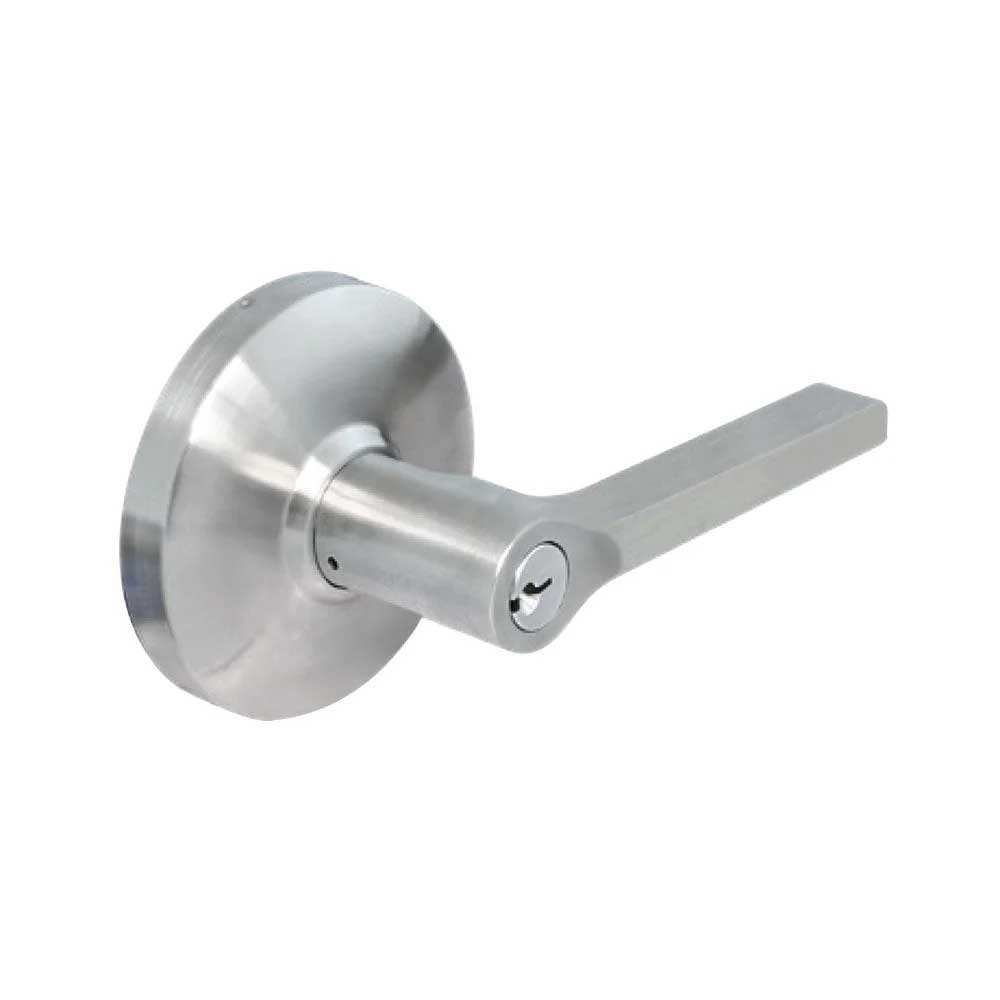

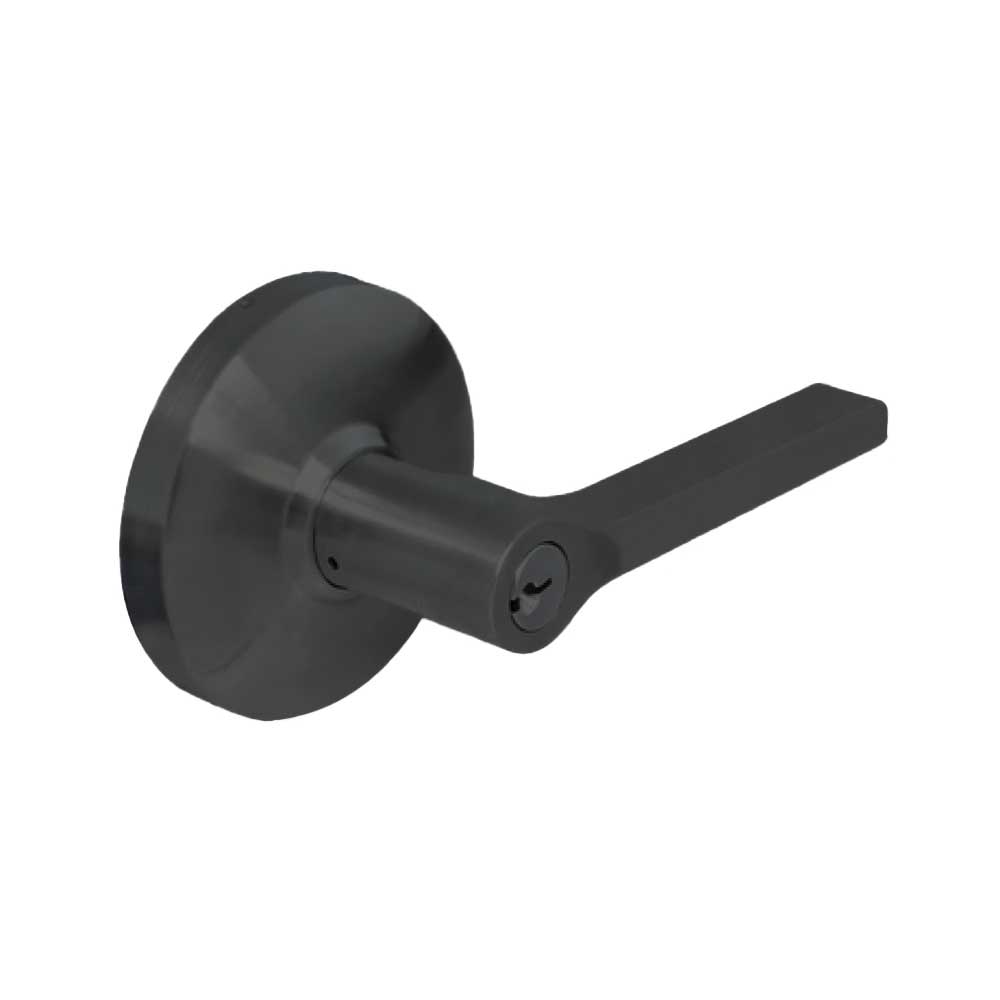

Cal-Royal - C2-LON00 - Cylindrical Clutch Mechanism Entrance Tuscany Series Lever Lock - Grade 2
Entrance / Office Lock - Turn / Push button locking. Pushing and turning the button locks the outside lever, requiring a key until manually unlocked. Pushing the button locks the outside lever until unlocked with a key or the inside lever is turned.
Features:
- ANSI F109 Grade 2 Entrance Lock
- Turn / Push Button locking mechanism
- Clutch function with free-turning handle to deter forced handle breakage
- Outside lever locks and unlocks using a key
- Inside lever unlocks the door when turned
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed levers for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Key-removable outside lever for quick and easy re-keying
- Durable construction designed for commercial applications
- Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
| Applications | Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings |
| Product Type | Entrance Lock |
| ANSI Grade | Grade 2 |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 (FF-H 106C) |
| Locking Function | Turn / Push Button |
| Clutch | Yes (Free-turning handle) |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Backset | 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional) |
| Latch Faceplate | 2-1/4" x 1-1/8" |
| Latch Throw | 1/2" (Standard brass latch) |
| Strike Plate | ASA 1-1/4" x 4-7/8" (Standard) |
| Cylinder | 6-pin solid brass |
| Keyway | "C" keyway (Standard) |
| Housing Material | Cold-rolled steel with zinc dichromate finish |
| Retractor | Precision cast steel |
| Handing | Non-handed |
| Mounting | Concealed screws; optional thru-bolted trim |
| Fire Door Options | Anti-friction deadlatch available for paired fire doors |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
