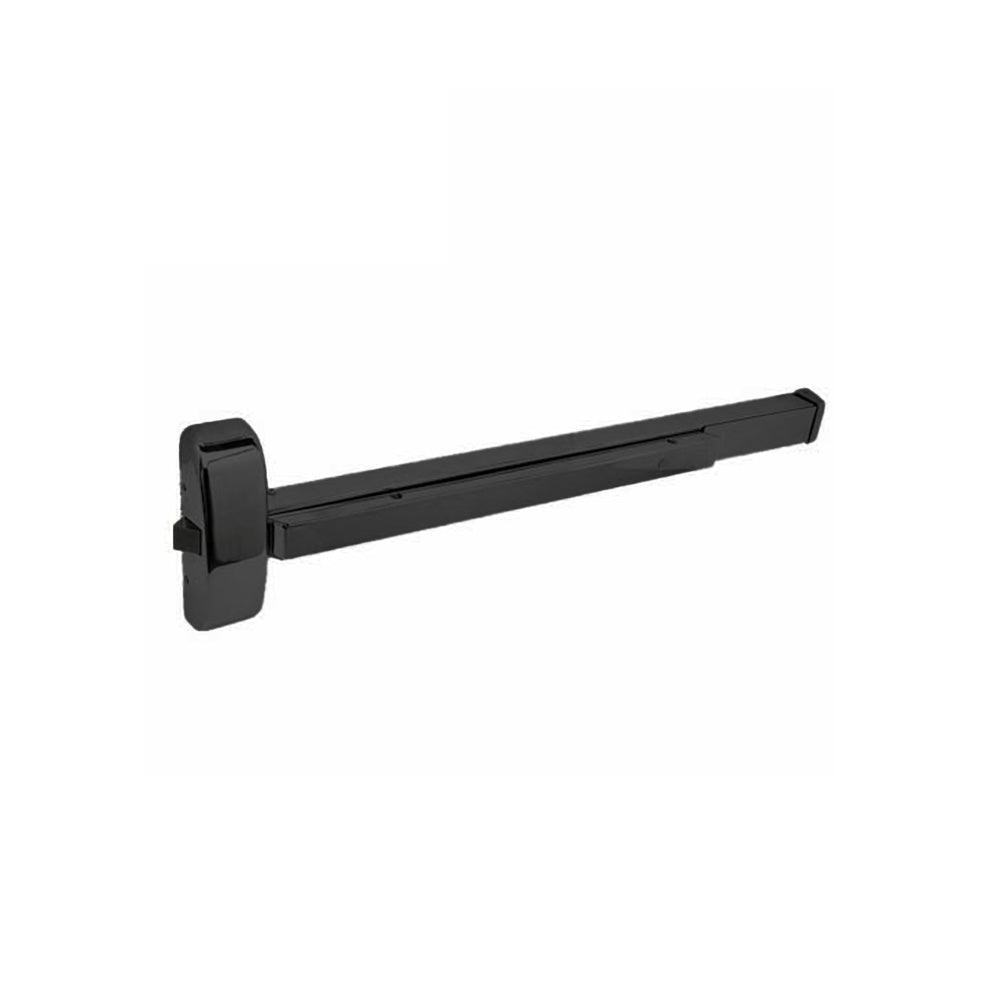

Cal-Royal - A9800EO36 - Rim Exit Device with 36" Door Width - Grade 1 - US1 - Flat Black Coated (622)

Cal-Royal - A9800EO36 - Rim Exit Device with 36" Door Width - Grade 1 - US1 - Flat Black Coated (622)

$408.08 USD
$529.97 USD $408.08 USD
Sale Sold out

Cal-Royal - A9800EO36 - Rim Exit Device with 36" Door Width - Grade 1 - US1 - Flat Black Coated (622)

Features:
  • ANSI A156.3, GRADE 1 heavy-duty exit device in surface vertical rod and rim designs.
  • Retrofits Sargent 8800 Series using 9800 Escutcheon trim.
  • Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
  • Trims are thru bolted for additional security.
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • Non-Fire Rated.
  • Uncompromising security and safety in single and double-fire exit doors.
  • Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
Chassis Non-ferrous alloy (Panic Grade)
Cover Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out.
For Doors 1-3/4" thick standard, optional 2-1/4" thick. 4-1/2" minimum stile width for single or double door application using standard 239 strike and pull or lever, thumb piece, and escutcheon trim. 2-3/4" backset.
Mounting Furnished with wood and machine screws. Available with thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices.
Handing Non-handed, center hub
Latch Bolt Stainless Steel 3/4" throw
Spring Stainless Steel throughout
ANSI Standard A156.3, Grade 1
End Cap Brass, Bronze, or Stainless Steel construction
Dogging Feature Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.
UL and ULC Listed A9800 Series for panic
Finish US1 - Matte Black (622)
